Gasket Intake Manifold – Fits Suzuki Outboard DF20R, DF25, DF25R V2 (Replaces OMC 5036852, Suzuki 13122-95J00)

$6.99

Shipping calculated at checkout.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

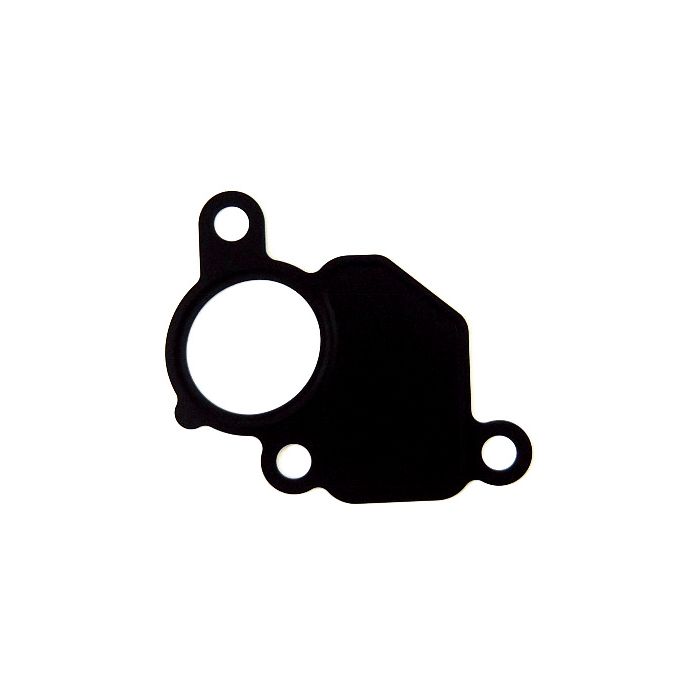

This Gasket Intake Manifold is engineered to create a reliable seal on Suzuki 4-stroke outboard motors. It is specifically designed for models DF20R, DF25, and DF25R V2 manufactured between 2006–2011.

It serves as a direct interchange for Suzuki part number 13122-95J00 and OMC part number 5036852.

Designed for installation on the engine's intake manifold.
Provides a precise fit to prevent air or coolant leaks.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	13122-95J00
OMC	5036852

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This part is designed for select Suzuki 4-stroke outboard engines.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DF20R	20	4-Stroke	2006–2011	13122-95J00
Suzuki	DF25	25	4-Stroke	2006–2011	13122-95J00
Suzuki	DF25R V2	25	4-Stroke	2006–2011	13122-95J00

Technical Specs

Product Type: Gasket, Intake Manifold
Installation Location: Intake Manifold
Dimensions: 8.9 (L) x 7.7 (W) x 0.05 (H)
Weight: 0.01 kg (0.02 lb)

What’s in the Box

1 x Intake Manifold Gasket (replaces Suzuki 13122-95J00)

Installation Notes

Disconnect the boat's battery and allow the engine to cool completely.
If applicable, drain the engine coolant to a level below the intake manifold.
Carefully disconnect any fuel lines, electrical sensors, and linkages attached to the manifold.
Loosen and remove the manifold mounting bolts in the reverse order specified by your engine's service manual.
Remove the old gasket. Thoroughly clean both the cylinder head and manifold mating surfaces to remove all old gasket material and residue.
Position the new gasket correctly over the dowel pins. Do not use sealant unless explicitly required by the service manual.
Reinstall the intake manifold, hand-tightening the bolts first. Torque all bolts to the manufacturer's specified value and in the correct sequence.
Reconnect all lines, sensors, and linkages.
Refill the coolant if it was drained. Reconnect the battery.
Start the engine and carefully inspect for any air, fuel, or coolant leaks around the gasket seal.

Troubleshooting & FAQ

How do I know if my intake manifold gasket is failing?

Common signs of a bad gasket include rough idling, engine misfires, reduced power, unexplained coolant loss, an overheating engine, or visible leaks around the intake manifold area.

Is any sealant required with this gasket?

This gasket is typically designed for a dry installation. However, always consult your engine's official service manual for specific procedures and sealant recommendations for your model, as requirements can vary.

What is the difference between this aftermarket gasket and an OEM part?

This aftermarket gasket is engineered to meet or exceed OEM specifications for fit, form, and function using comparable, high-quality materials. It offers a cost-effective solution without sacrificing performance or reliability.

How critical is the bolt torque sequence during installation?

Extremely critical. Following the correct torque sequence and specifications ensures the manifold is clamped down evenly, preventing gasket damage and ensuring a leak-proof seal. Failure to do so can lead to immediate or premature failure.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
