Water Pump Repair Kit – Fits Suzuki 9.9HP & 15HP DF9.9/DF15 4-Stroke (Replaces 17400-94J00)

$28.60

Shipping calculated at checkout.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Repair Kit – Fits Suzuki 9.9HP & 15HP DF9.9/DF15 4-Stroke (Replaces 17400-94J00) provides all essential components to restore your outboard's cooling system. It is designed specifically for Suzuki Marine 4-stroke DF9.9 and DF15 models manufactured from 2007–2013.

The kit serves as a direct replacement for Suzuki OEM part numbers 17400-94J00 and 17400-94J10, ensuring proper fit and function.

Installation Location: Mounts in the lower unit.
Complete Service: Includes the impeller, housing, wear plate, key, and gasket.
Engine Fitment: Compatible with 9.9HP & 15HP DF9.9/DF15 4-Stroke models.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.

Brand	Part Number	Notes
Suzuki	17400-94J00	Primary replacement number.
Suzuki	17400-94J10	Superseded by 17400-94J00.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is verified for the following Suzuki outboard models.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DF9.9	9.9	4-Stroke	2007–2013	17400-94J00	Supersedes 17400-94J10
Suzuki	DF15	15	4-Stroke	2007–2013	17400-94J00	Supersedes 17400-94J10

Technical Specs

Product Type: Water Pump Repair Kit
Installation: Lower Unit
Fuel Type: Gasoline
Housing Material: Multiple (Plastic, Rubber, Metal)
Dimensions: 14 × 10 × 4 in
Weight: 0.11 kg (0.25 lbs)

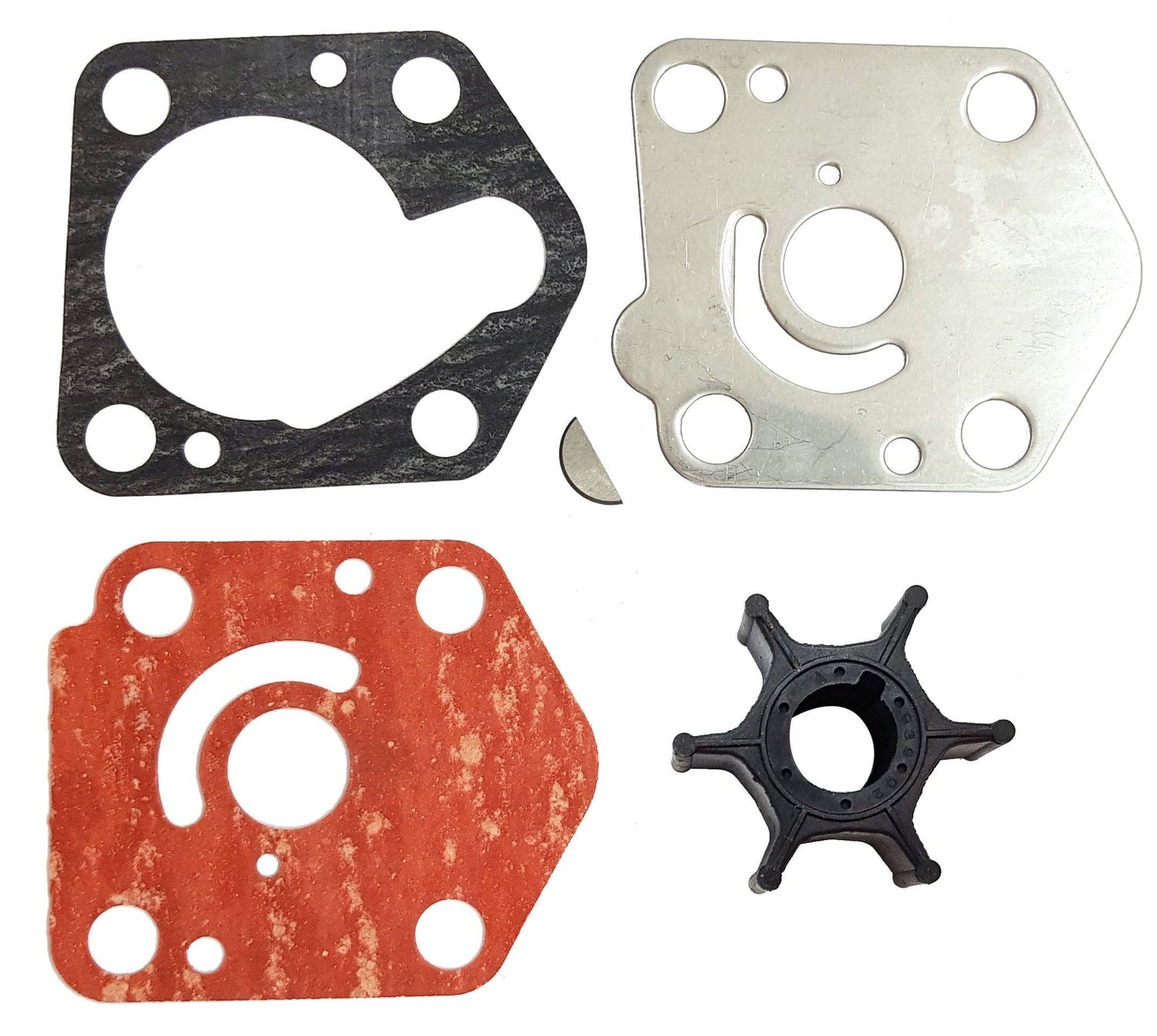

Kit Contents: Contains impeller, wear plate, shaft impeller key, pump housing and plate gasket

What’s in the Box

Water Pump Impeller
Wear Plate
Shaft Impeller Key
Pump Housing
Plate Gasket

Installation Notes

Disconnect the battery and shift linkage before beginning work.
Remove the lower unit mounting bolts and carefully detach the lower unit from the engine.
Unbolt and remove the old water pump housing assembly. Note the orientation of the old parts.
Thoroughly clean the mounting surfaces and inspect the driveshaft for any scoring or damage.
Install the new shaft impeller key, wear plate, and gasket.
Slide the new impeller onto the driveshaft, rotating it in the correct direction.
Install the new pump housing and gasket, then tighten the bolts to the manufacturer's specified torque.
Carefully reinstall the lower unit, ensuring the water tube, driveshaft, and shift shaft are properly aligned.
Reconnect all linkages and test the engine's cooling system on the water.

Troubleshooting & FAQ

How do I know if my water pump is failing?

Common signs of a worn or failed water pump include a weak or intermittent water stream from the tell-tale outlet, engine overheating alarms, and a noticeable decrease in engine performance.

What is the recommended replacement interval?

For optimal reliability, it is recommended to inspect the impeller annually and replace the entire water pump kit every 1-2 years or 100-200 operating hours, whichever comes first. This interval may vary based on operating conditions (e.g., saltwater vs. freshwater).

Will this kit fit 2-stroke Suzuki models?

No, this kit is designed exclusively for the specified 4-stroke models (DF9.9 and DF15, 2007–2013). It is not compatible with 2-stroke outboards.

Are all necessary gaskets included?

Yes, the kit includes the essential plate gasket required for assembling the water pump housing. No other gaskets are part of this specific kit.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
