18-3315-2 Water Pump Impeller Repair Kit with Housing for Johnson E...
Product Details
- SKU: 1833152
- Brand & Manufacturer: SeaSierra
- Category: Boat Motor Parts Cooling System
- Part Type: Water Pump Impeller Repair Kit with Housing
- Item Weight: 1.6801
- Package Dimensions: HEIGHT: 5.4001, WIDTH: 5.8001, DEPTH: 5.4001
Compatibility
This kit is compatible with the following Johnson Evinrude Outboard models:
- 90 HP SL & DI: 1995-UP
- 105 HP Commercial: 1998-2001
- 115 HP SL & DI: 1995-UP
- 120 HP 25" F Suffix
- 130 HP: 1997-UP
- 135 HP 25": 2001
- 140 HP 25" F Suffix: 1993
- 140 HP 25": 1994-2000
- 150/175 HP SL, EL, DI, 20" & 25": 1993-UP
- 200 HP V6 & V8 25"& 30": 1993-UP
Part Numbers and Replacements
- Replaces OEM Part Numbers: 05001595, 0435929, 05007972, 05001593, 05001594, 0390768, 0392750, 0395062, 0434421, 0391637, 0393082, 0395060, 0435447, 0777802
- Replaces Sierra Part Number: 18-3315-2
- GLM Part Number: 12000
- Other Replaced Part Numbers: Mallory Marine 9-48200, SEI Marine 96-306-01K

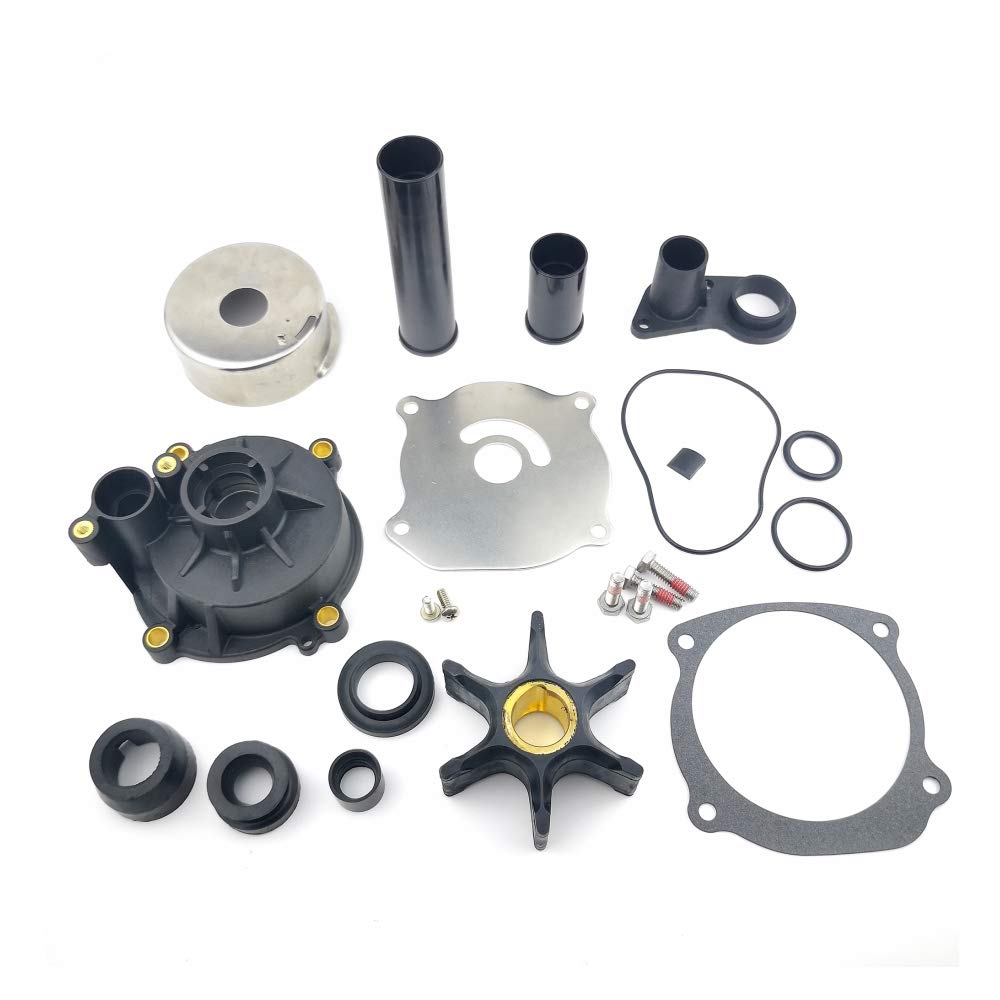

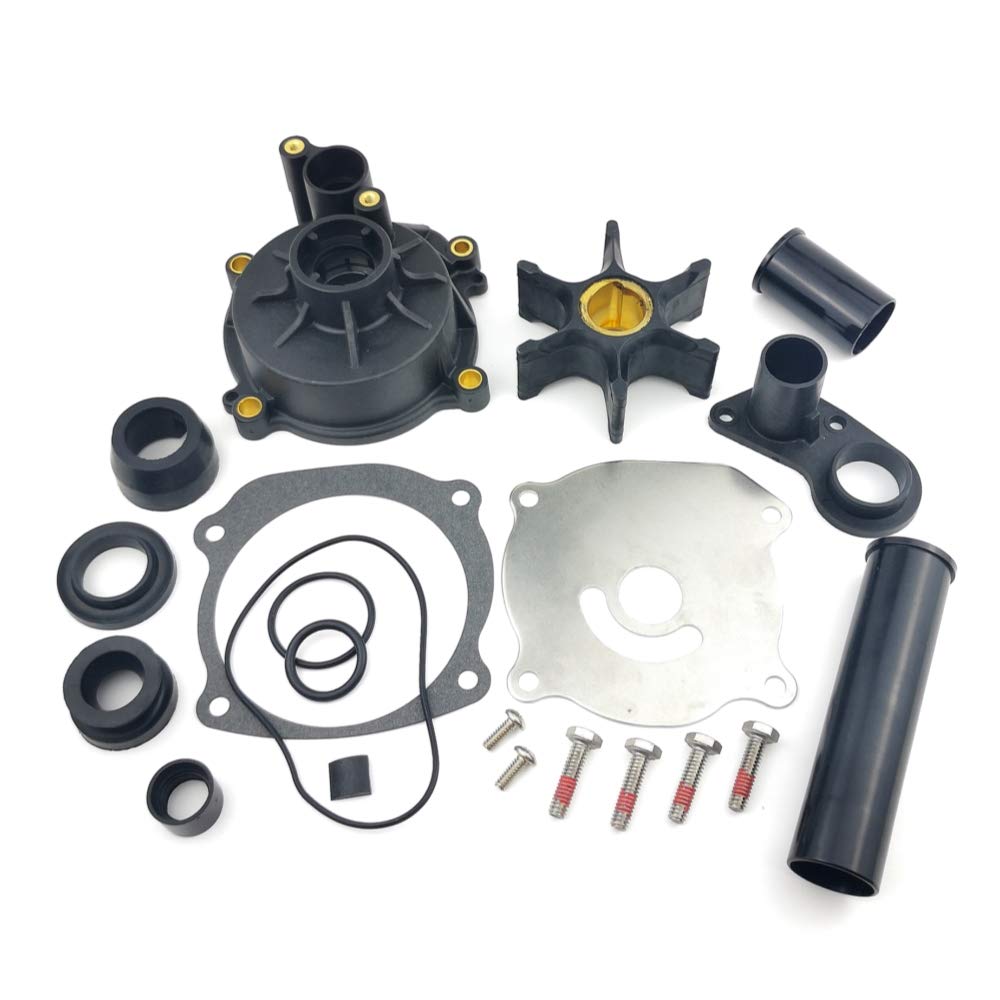

Kit Components
The package includes the following items:
- Cup, Insert 338486

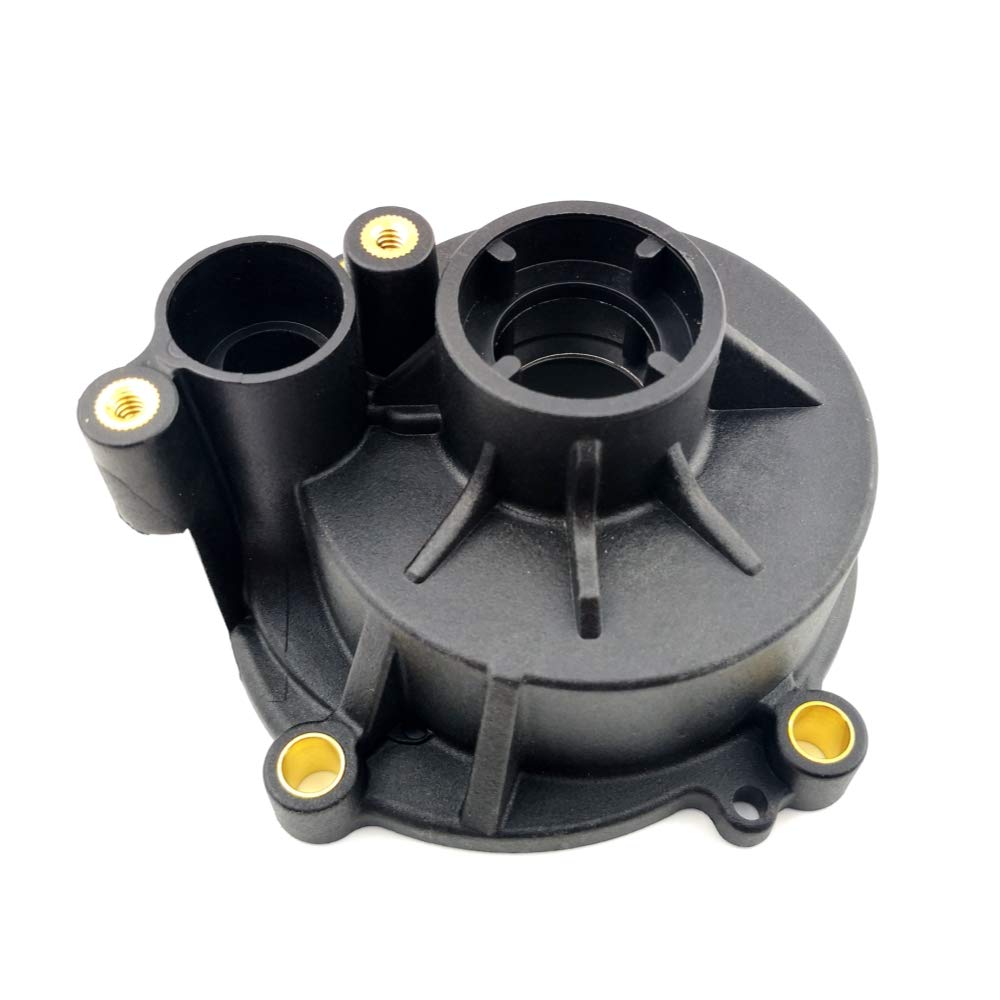

- Housing 435485

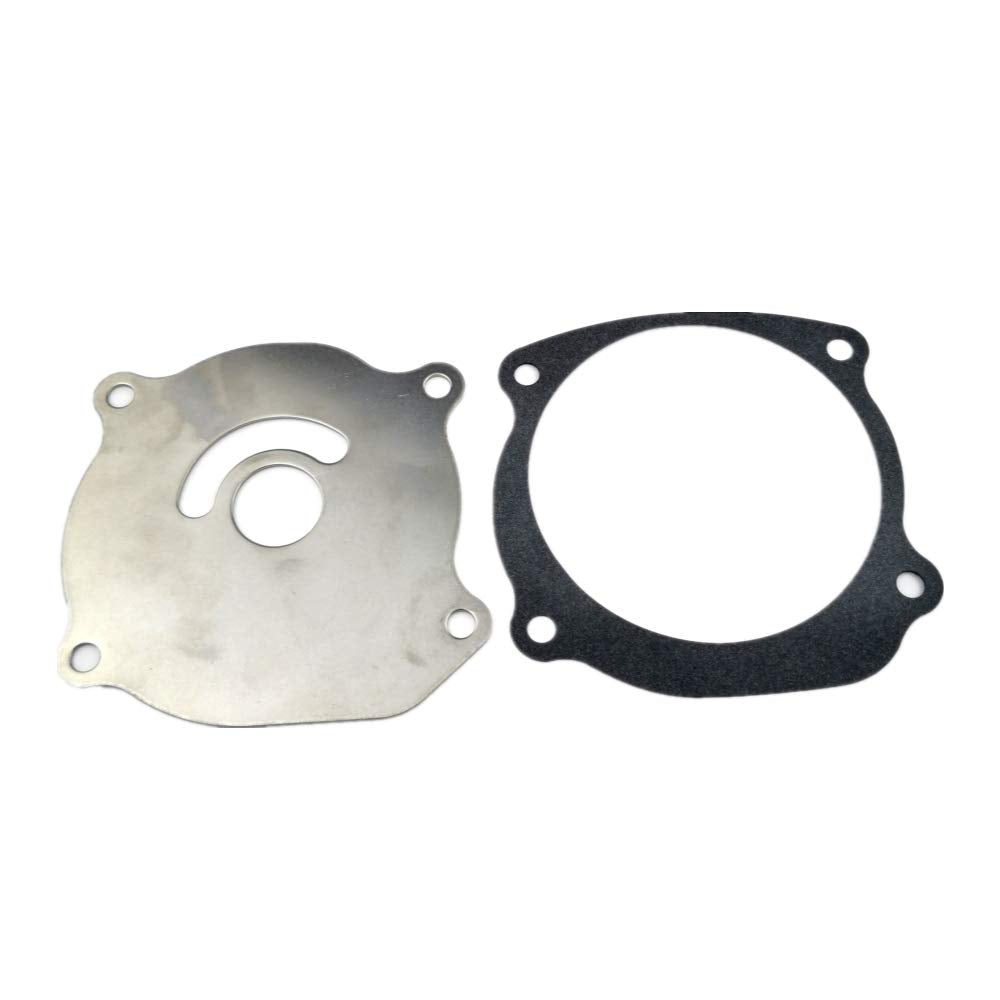

- Gasket 338484
- Plate, Outer Wear 338485
- Seal 331353
- Impeller Kit 5001593, 777816
- Cover 354578

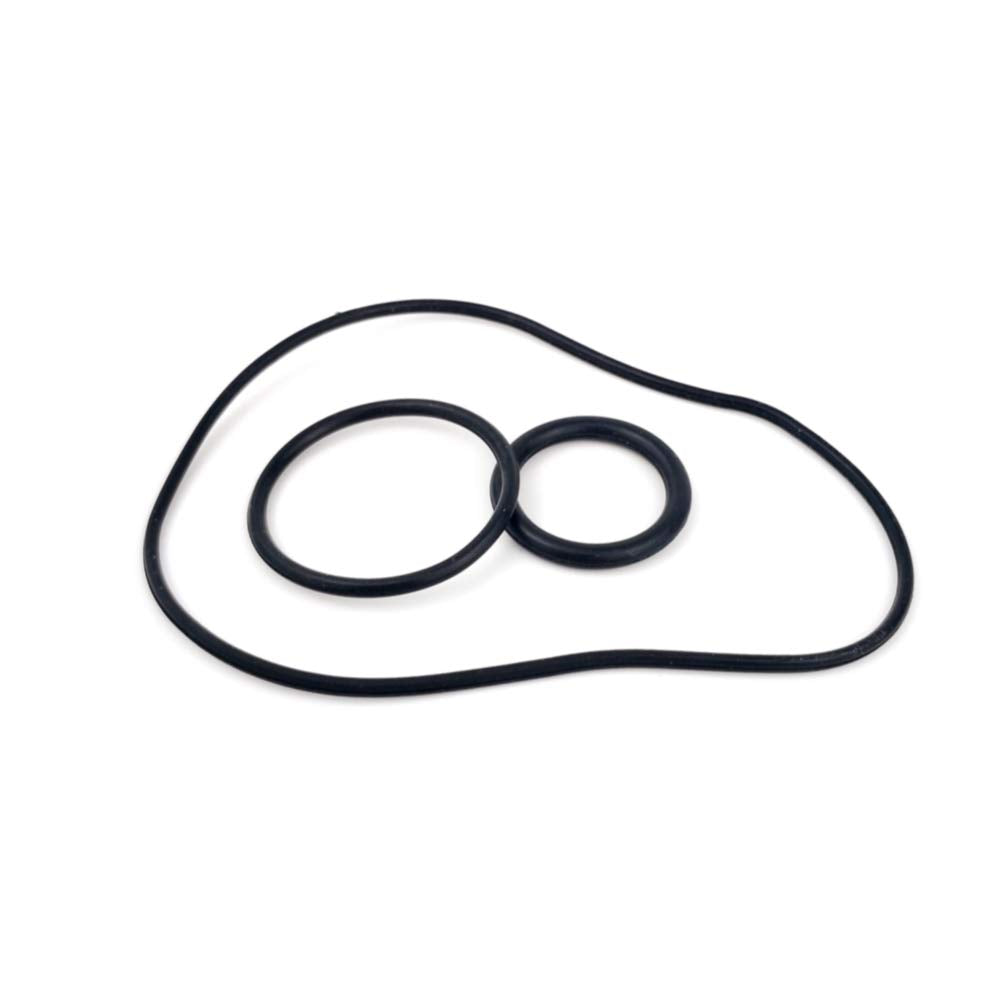

- O-Ring 302035

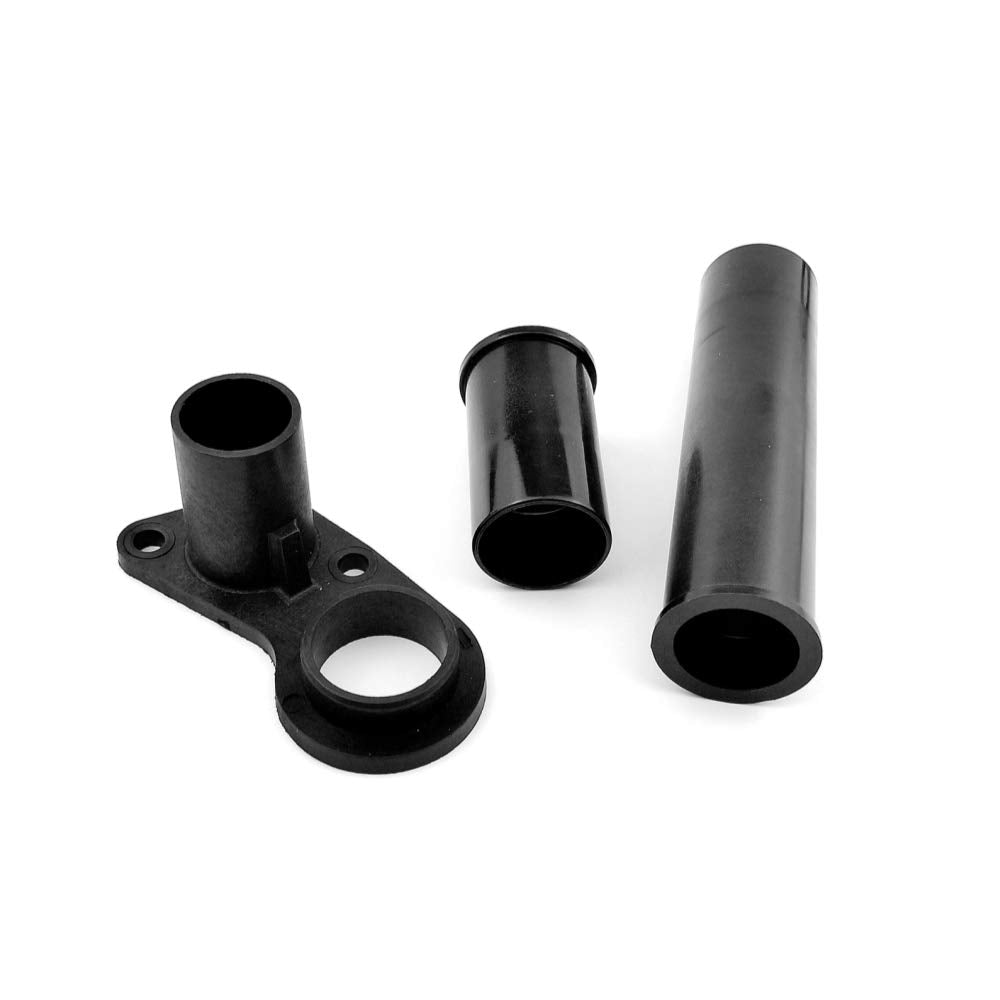

- Sleeve, Extension 25” & 30” Models 354580 338637

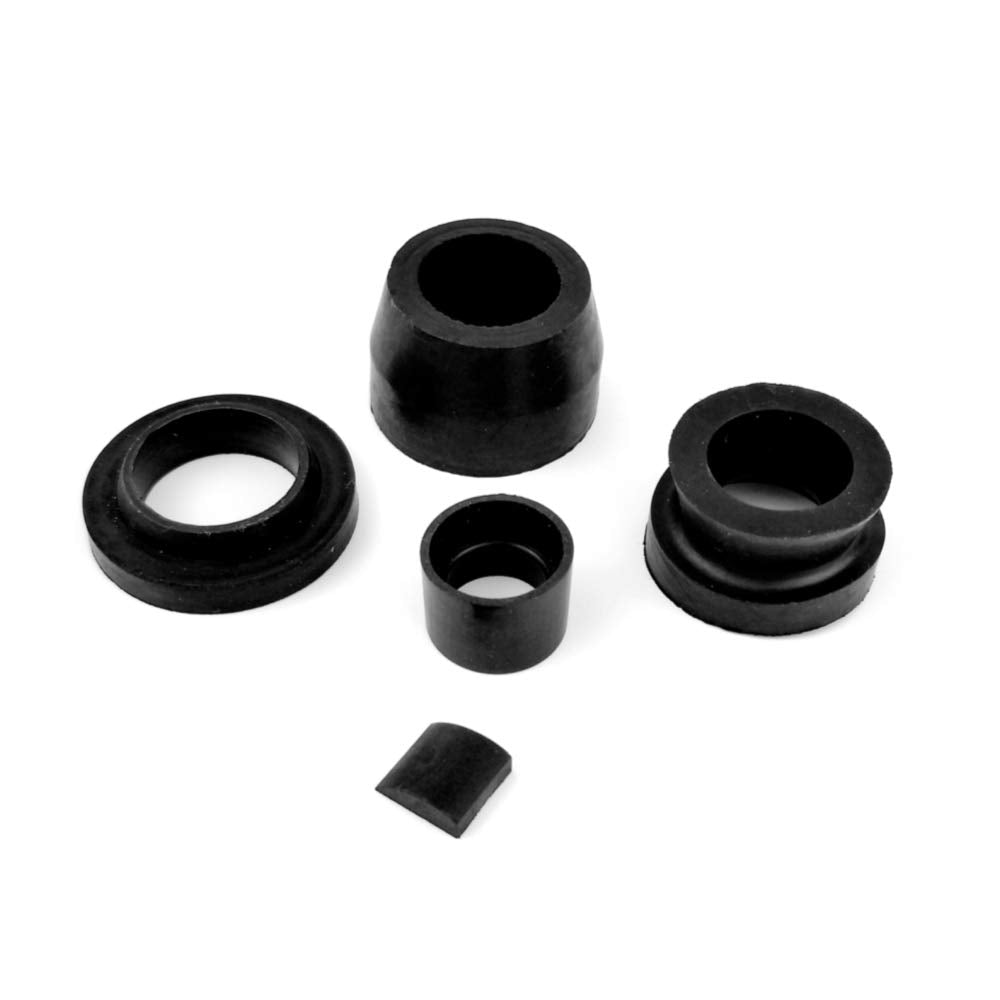

- Grommet, water Tube to Cover 314008
- Grommet, Pump to Exhaust Housing 320943
- Grommet, Sleeve, 20” Models 349354
- Grommet, Sleeve, 25” and 30” 338601

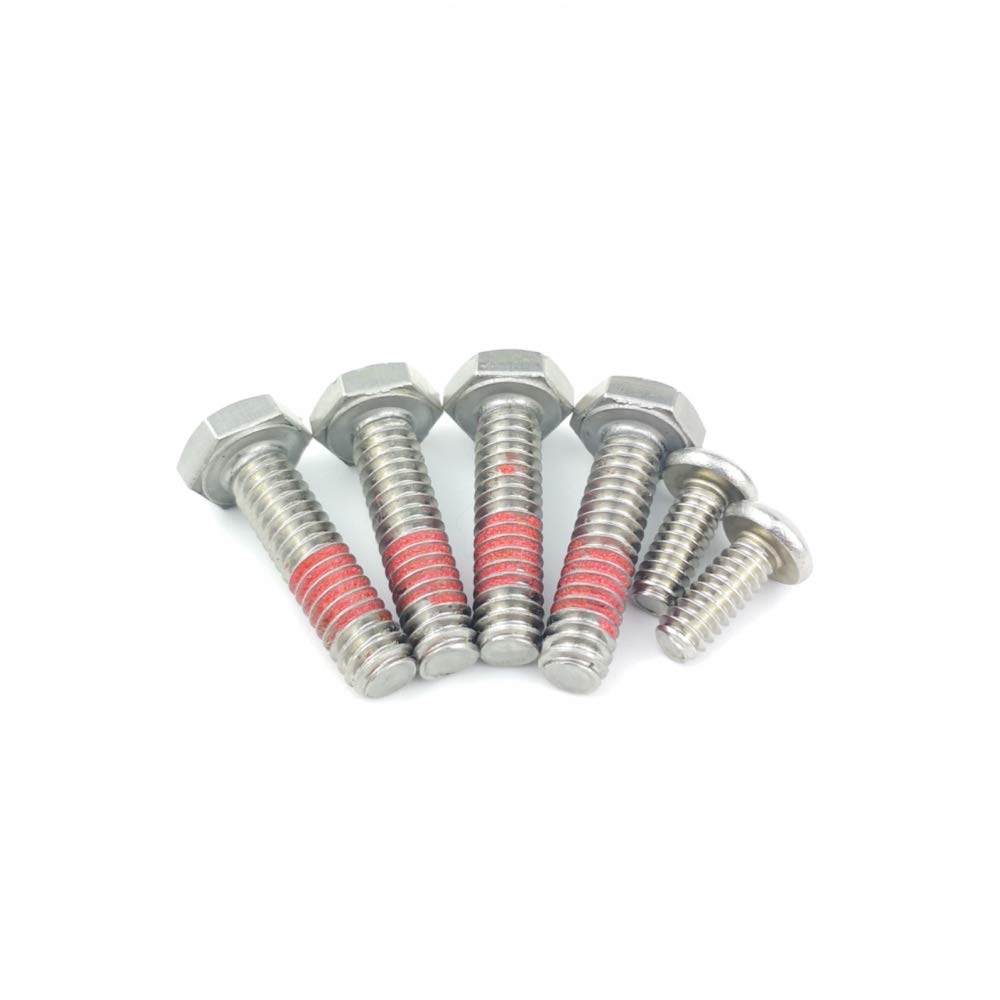

- Screw (6 in total) 306643, 302325
Additional Information
-

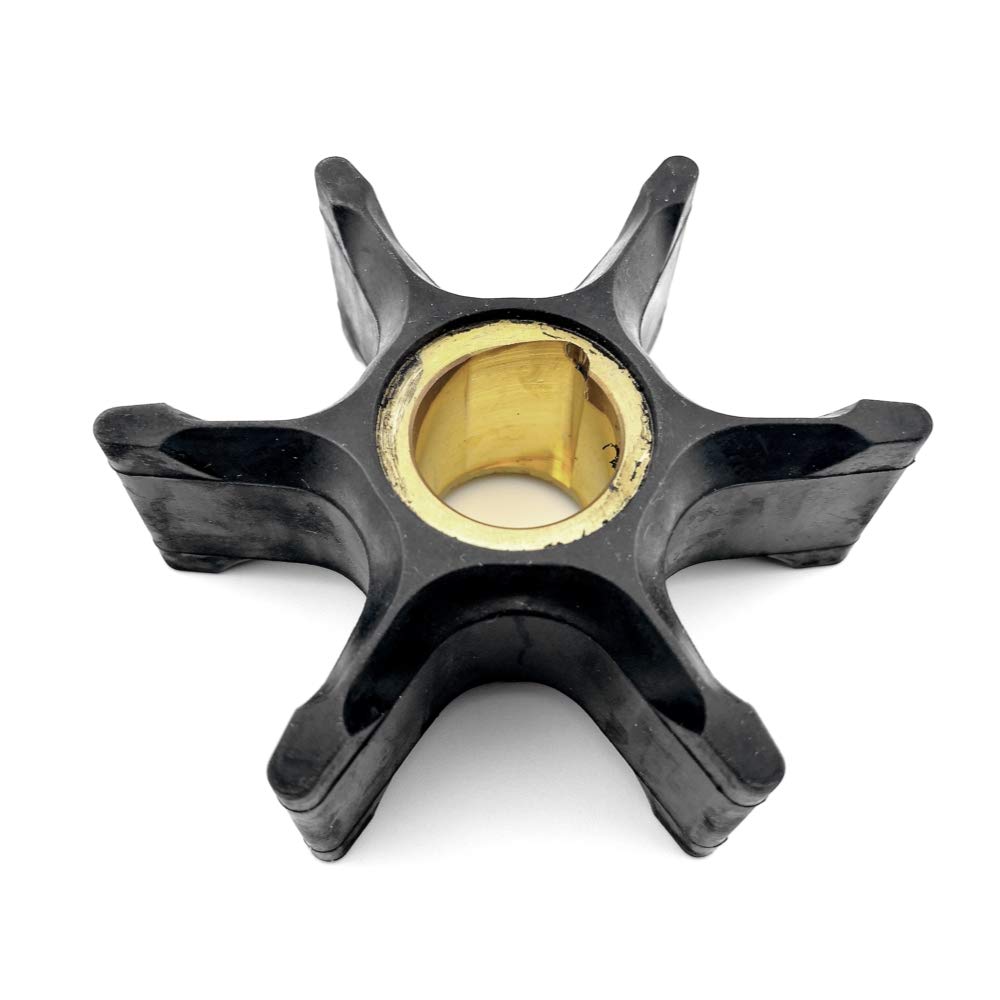

Impeller Specification:
- Diameter: 3.5" (89mm)
- Width: 1.26" (31.9mm)
- Shaft: 0.88"(22.4mm)
- Silhouette: 6 blades
- Drive: Wedge Key Drive
- Materials: The strongest marine and chemical corrosion-resistant metal alloy and scientifically engineered high-performance rubber.
- Note: It is VERY IMPORTANT to check your outboard engine year, model, or horsepower before purchase. For: 90/115SL (1995-Up), 120/125ESX (1993-94), 120/130/140/150/175/V-6/V-8 (1993-Up)
