763758 Water Pump Impeller Kit with Housing for Johnson Evinrude OM...
Product Details
- SKU: 763758
- Brand & Manufacturer:SeaSierra
- Category: Cooling Systems / Pump/Pump Kits
- Part Type: Water Pump Impeller Repair Kit
Compatibility
This kit is compatible with the following Johnson Evinrude OMC Outboard models:
- 25 Jet: 1995-UP
- 30 Jet: 1995-UP
- 28 hp: 1995-1996
- 35 hp: 1991-1996
- 40 hp: 1989-2005
- 48 hp: 1989-2005
- 50 hp: 1989-2005
Part Numbers and Replacements
- Replaces OEM Part Numbers: 438592, 433548, 433549, 777805, 0438592, 0433548, 0433549, 0777805
- Replaces Sierra Part Number: 18-3454
- Other Replaced Part Numbers: Sierra Marine 18-3454, Mallory Marine 9-48209, GLM Marine 12245, SEI Marine 96-364-01AK, OBR Red Rhino JE-222

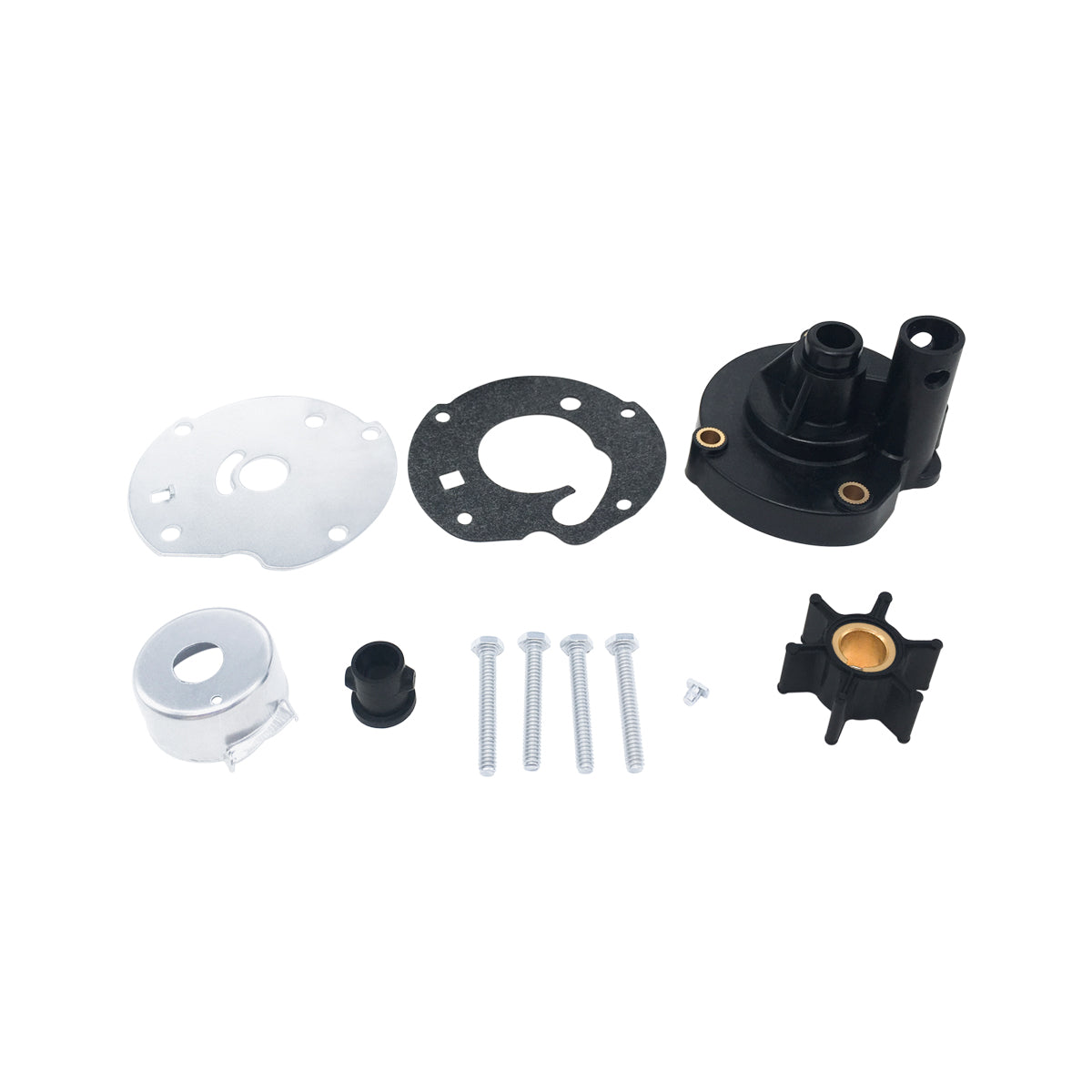

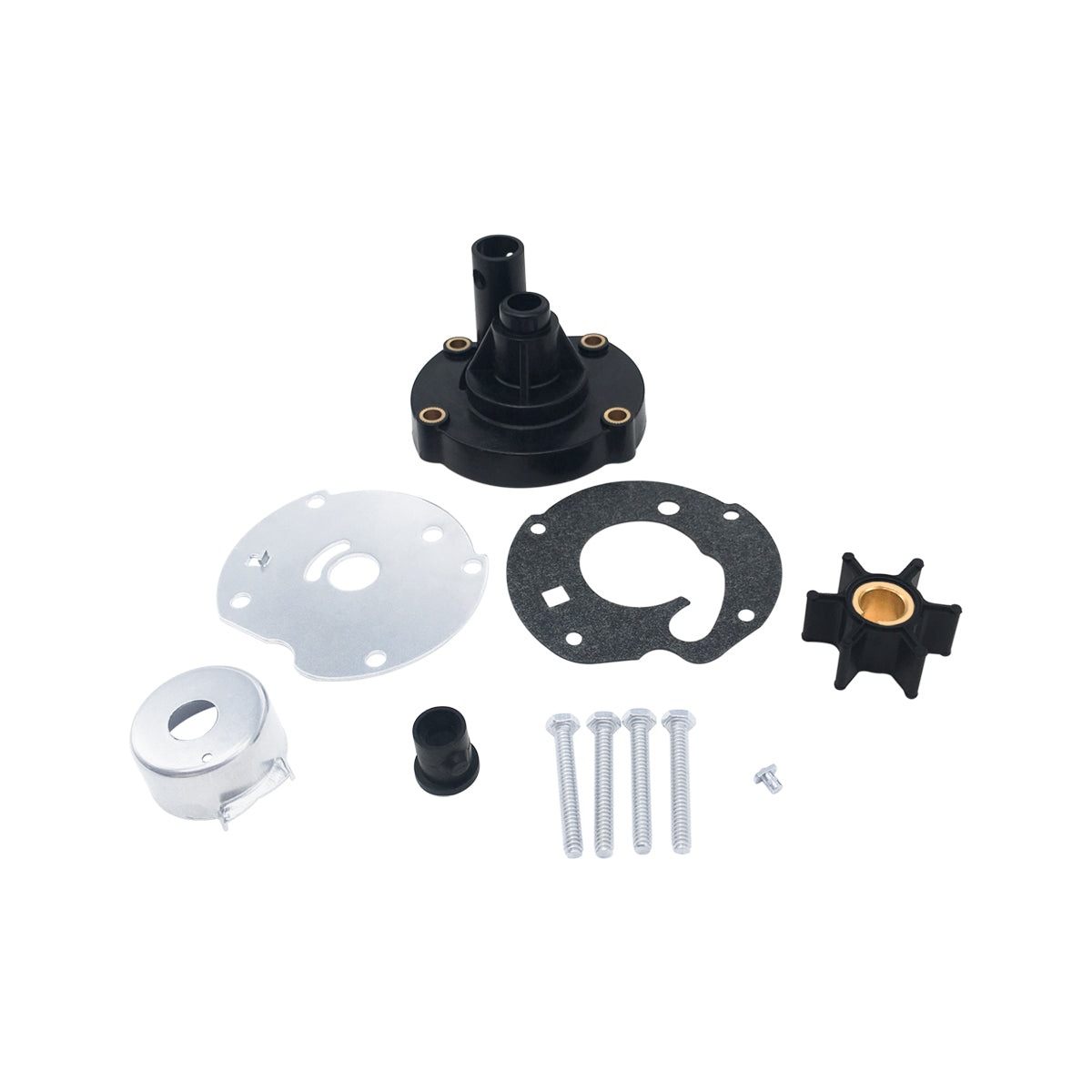

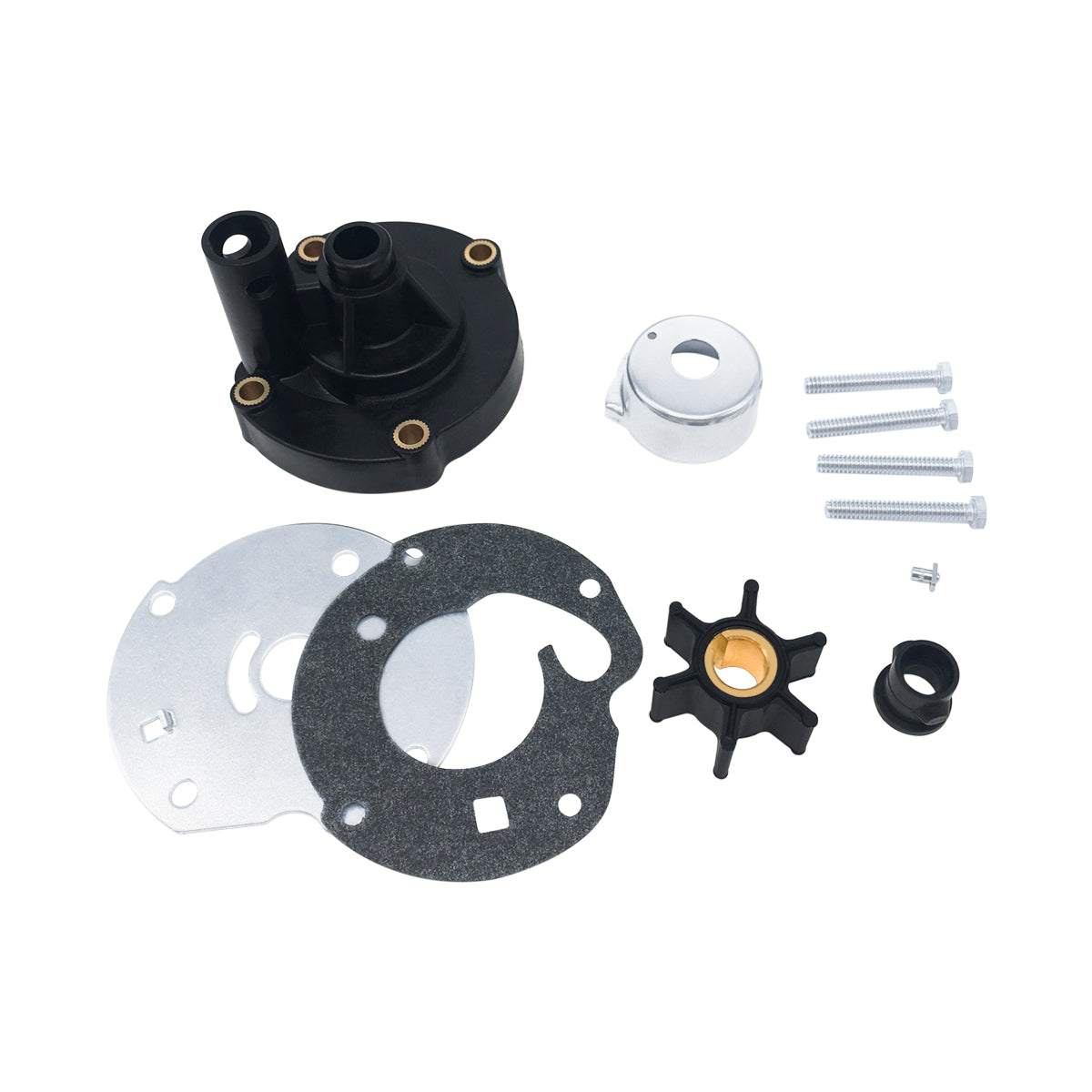

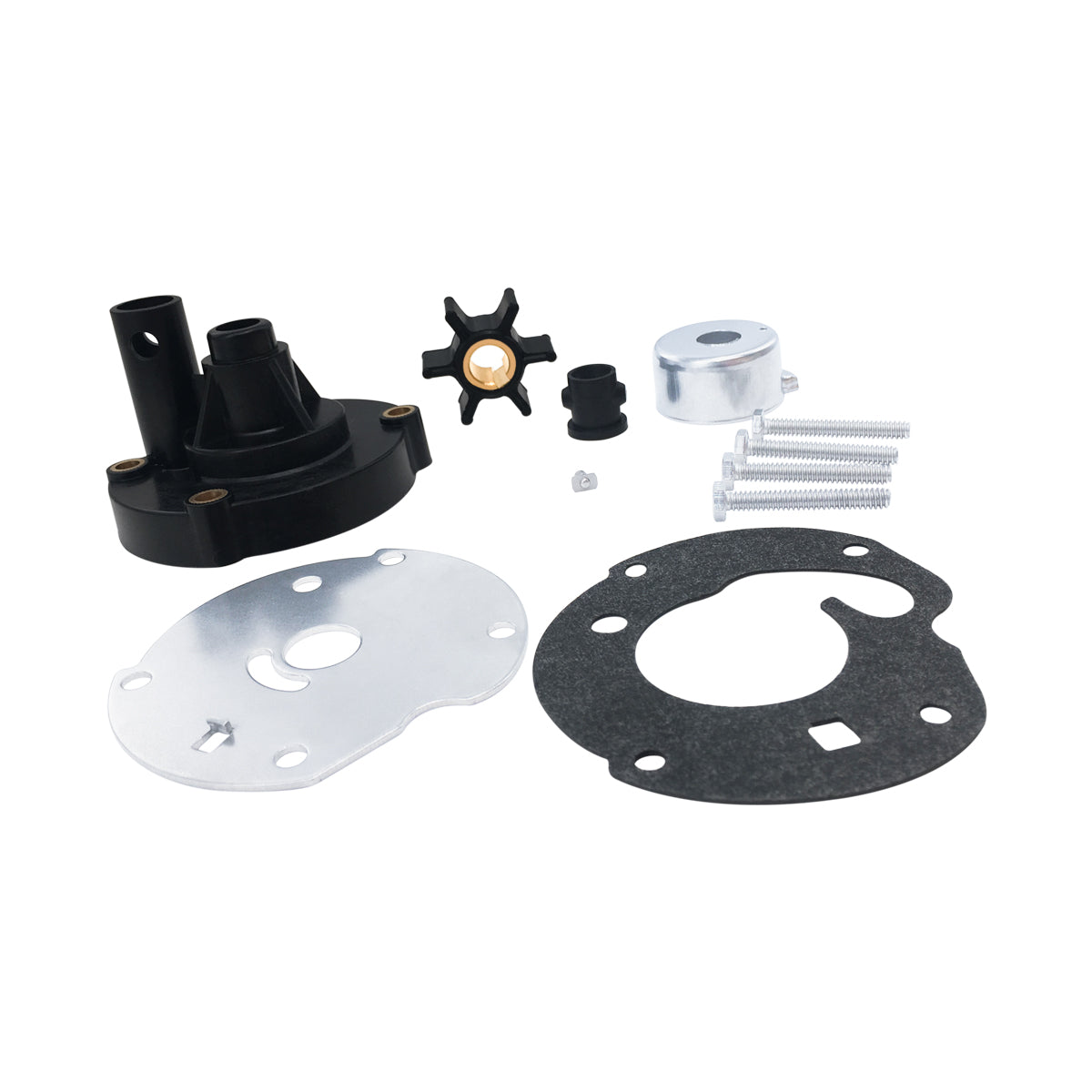

Kit Components
The package includes the following items:

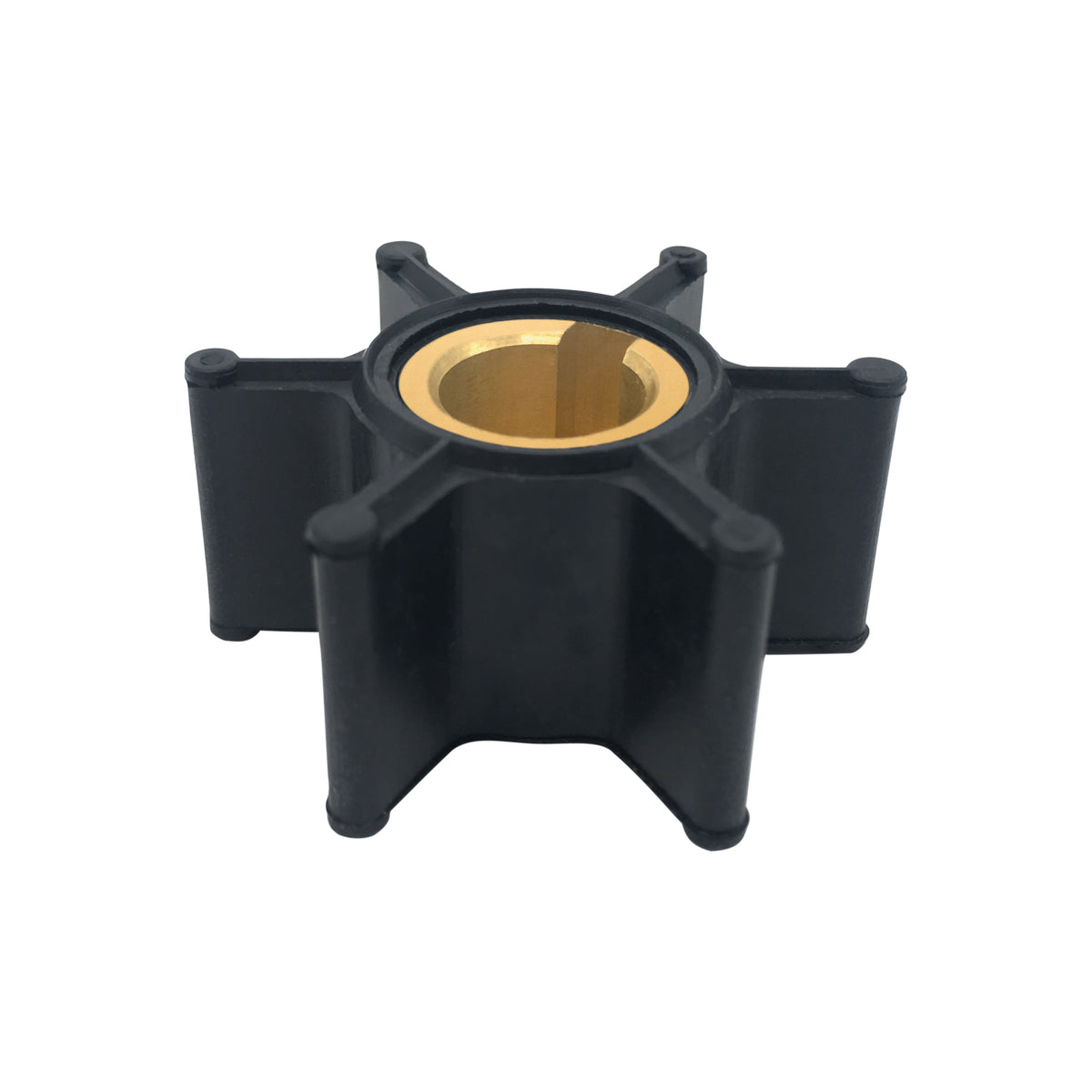

- Impeller Assembly (0432941, 0437059, 0765350, 18-3104)
- Impeller Key (0334897, 18-3138)

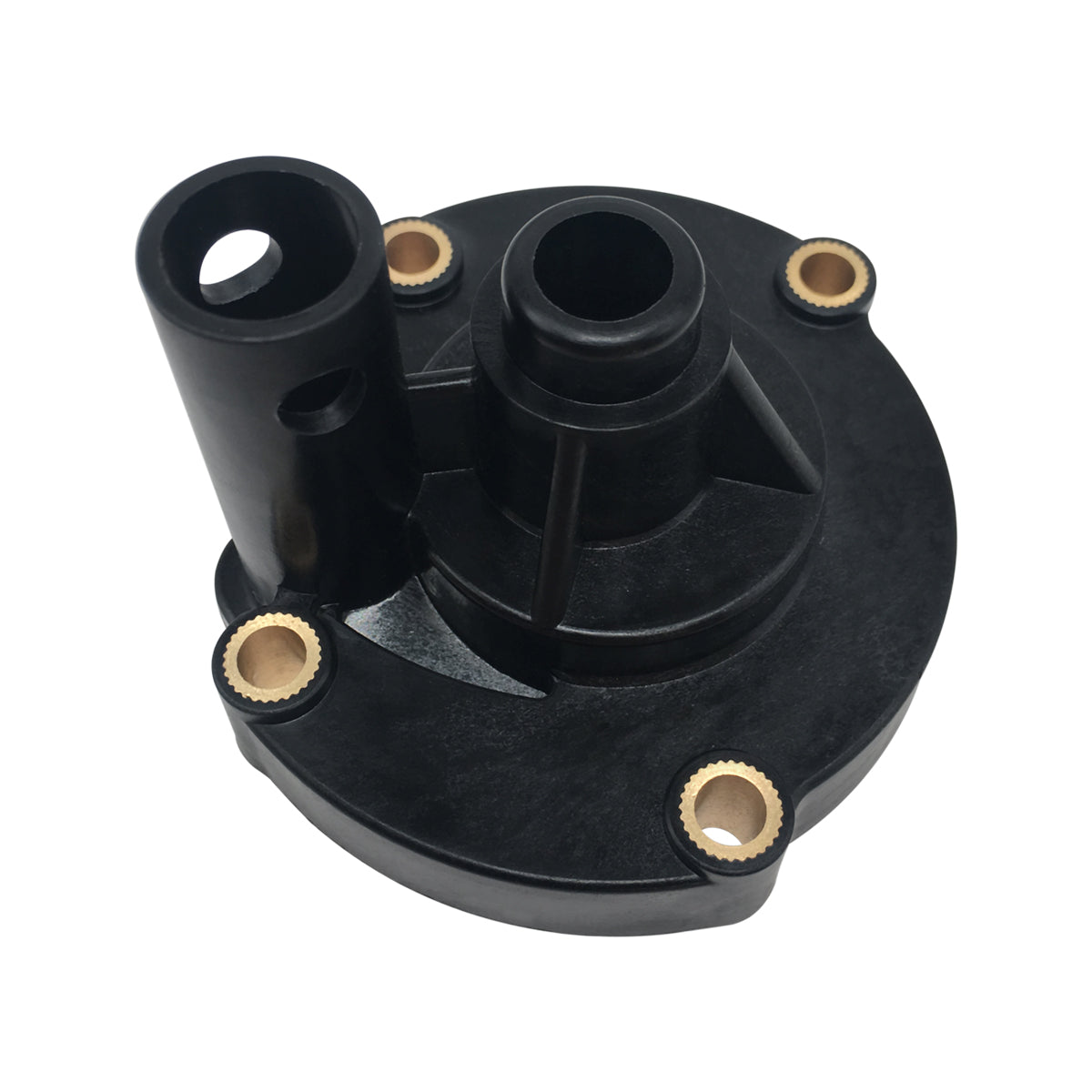

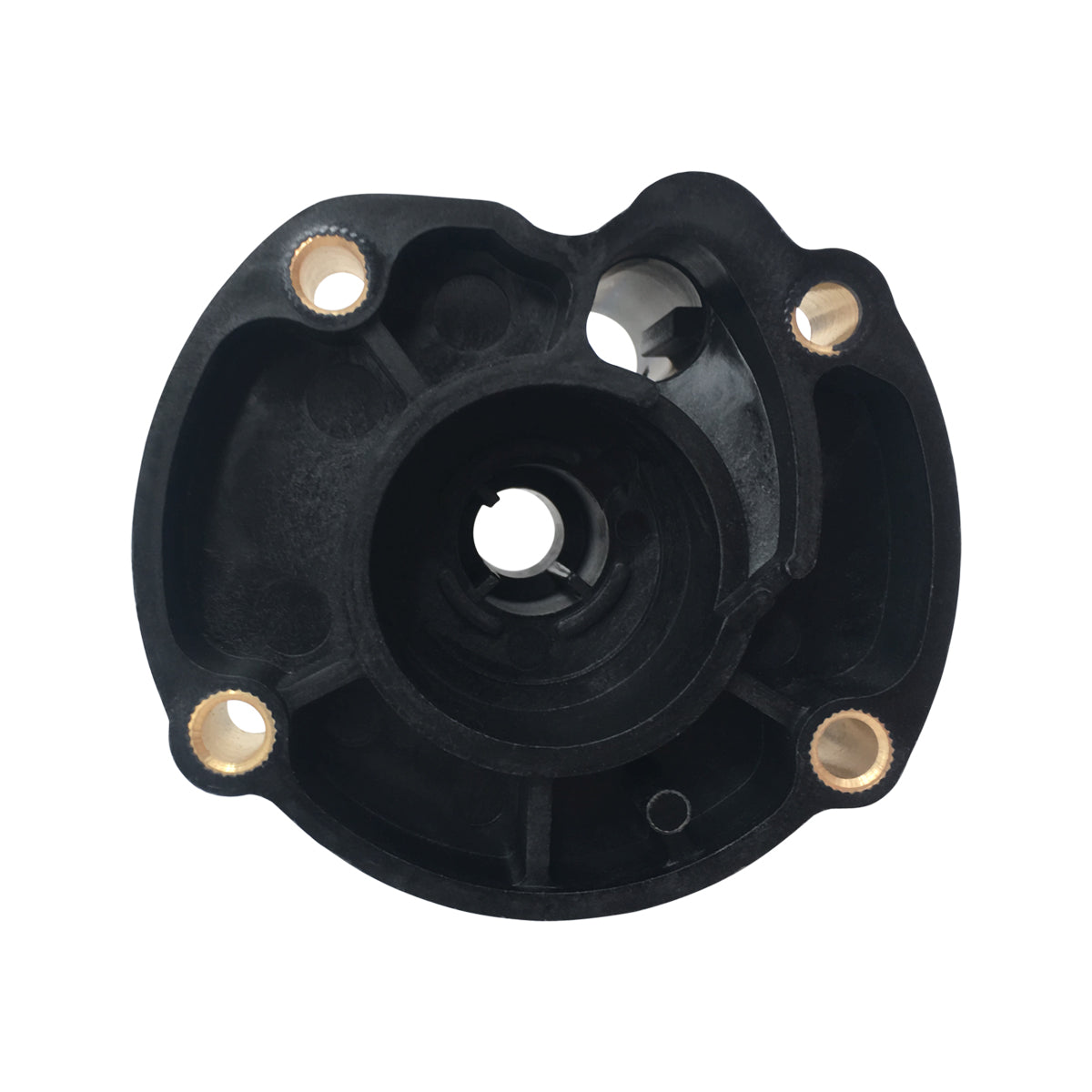

- Impeller Housing Assembly (0438544, 0437058, 0435594)

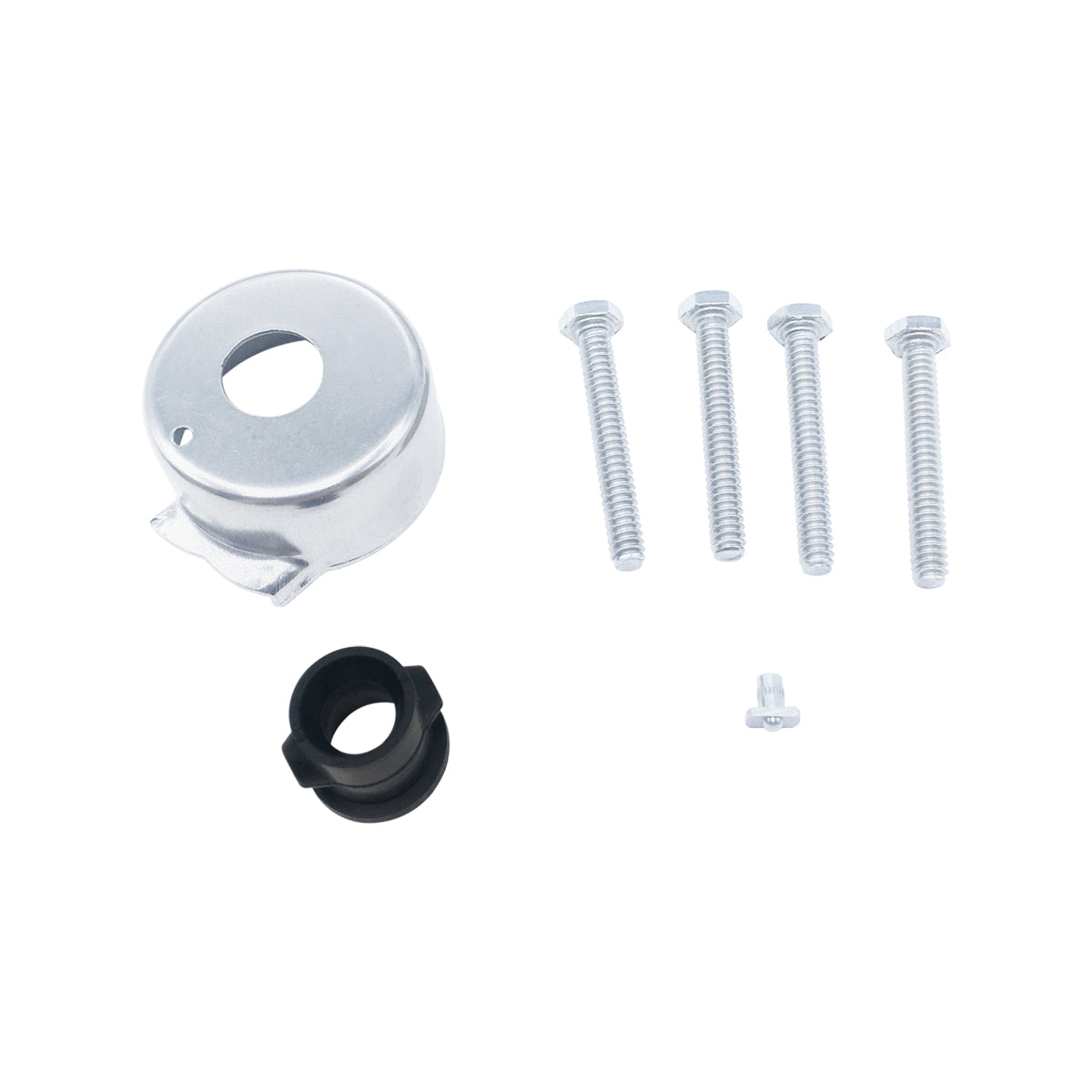

- Cup Impeller Housing (0340619, 18-3455)
- Impeller Housing Plate (0321940, 0341038, 0336251, 0319275, 18-3126)
- Wear Plate Gasket (0336530, 18-2709)
- Seal Housing (0324981, 0777871, 18-7481)
- Grommet (0333758, 18-2708, 0341732, 0315748, 18-2705) - 2 pieces
- O Ring (0310584, 3852089, 0777973, 18-7135, 0331188, 25-65936, 18-7143) - 2 pieces
- Screws (0302325, 0328315, 331979, 18-3133) - 4 pieces
Additional Information
- It's crucial to check your boat motor part number before purchase. If unsure, please message with engine year and horsepower for assistance.
- This impeller kit simplifies the repair and maintenance of water pumps.
- The kit is designed for most Evinrude Johnson 2 cylinder 2-stroke 40 - 48 - 50 HP models from 1989 up to 2005, especially those with the gas assist tilt or trim cylinder feature operated by a lever on the side of the mounting bracket or single ram power trim integrated inside the mounting brackets.
