Water Pump Impeller Kit – Fits Yamaha 8/9.9HP 4-Stroke Outboard (Re...
Water Pump Impeller Kit – Fits Yamaha 8/9.9HP 4-Stroke Outboard (Replaces 69G-W0078-02-00, 18-3450, 9-48613) is backordered and will ship as soon as it is back in stock.
Product Details
This Water Pump Impeller Kit – Fits Yamaha 8/9.9HP 4-Stroke Outboard (Replaces 69G-W0078-02-00) provides all necessary components for a complete water pump service. It is designed for Yamaha 4-stroke outboard motors, including 8 HP and 9.9 HP high-thrust models (T8, T9.9) from 2007 and newer, ensuring your engine's cooling system operates efficiently.
This kit is a direct interchange for Yamaha part numbers 69G-W0078-00-00, 69G-W0078-01-00, and 69G-W0078-02-00, as well as Sierra 18-3450 and Mallory 9-48613.
- Installs in the lower unit.
- Maintains proper cooling system function to prevent overheating.
- Kit includes a new impeller, housing insert, plate, key, and all required seals and bolts.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 69G-W0078-00-00 | 69G-W0078-01-00 | Original superseded part |
| Yamaha | 69G-W0078-01-00 | 69G-W0078-02-00 | Previous version |
| Yamaha | 69G-W0078-02-00 | Current OEM part number | |
| Sierra | 18-3450 | Aftermarket equivalent | |
| Mallory | 9-48613 | Aftermarket equivalent |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha owners, this kit is primarily for T8 and T9.9 high-thrust models but also fits specific F25 and C30 legacy engines. Please verify your exact model and year.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | FT8DEPL, FT8DEPX | 8 | 4-Stroke | 2001 | 69G-W0078-02-00 | High thrust models |
| Yamaha | FT8DMHL | 8 | 4-Stroke | 2003–2004 | 69G-W0078-02-00 | High thrust model |
| Yamaha | FT9.9GEL, FT9.9GEPL, FT9.9GEX | 9.9 | 4-Stroke | 2008–2012 | 69G-W0078-02-00 | High thrust models |
| Yamaha | FT9.9LEL, FT9.9LEPL, FT9.9LEX | 9.9 | 4-Stroke | 2013–2017 | 69G-W0078-02-00 | High thrust models |
| Yamaha | FT9.9LPB, FT9.9XPB | 9.9 | 4-Stroke | 2018+ | 69G-W0078-02-00 | High thrust models |
| Yamaha | T9.9 | 9.9 | 4-Stroke | April 2007 and newer | 69G-W0078-02-00 | High thrust models |
| Yamaha | F25 | 25 | 4-Stroke | 1998–2005, 2009–2010 | 69G-W0078-02-00 | Additional compatibility |
| Yamaha | C30 | 30 | 4-Stroke | 1993–1997 | 69G-W0078-02-00 | Additional compatibility |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Lower Unit
- Connection
- Direct Drive
- Other Technical Attributes
- Maintains proper cooling system function

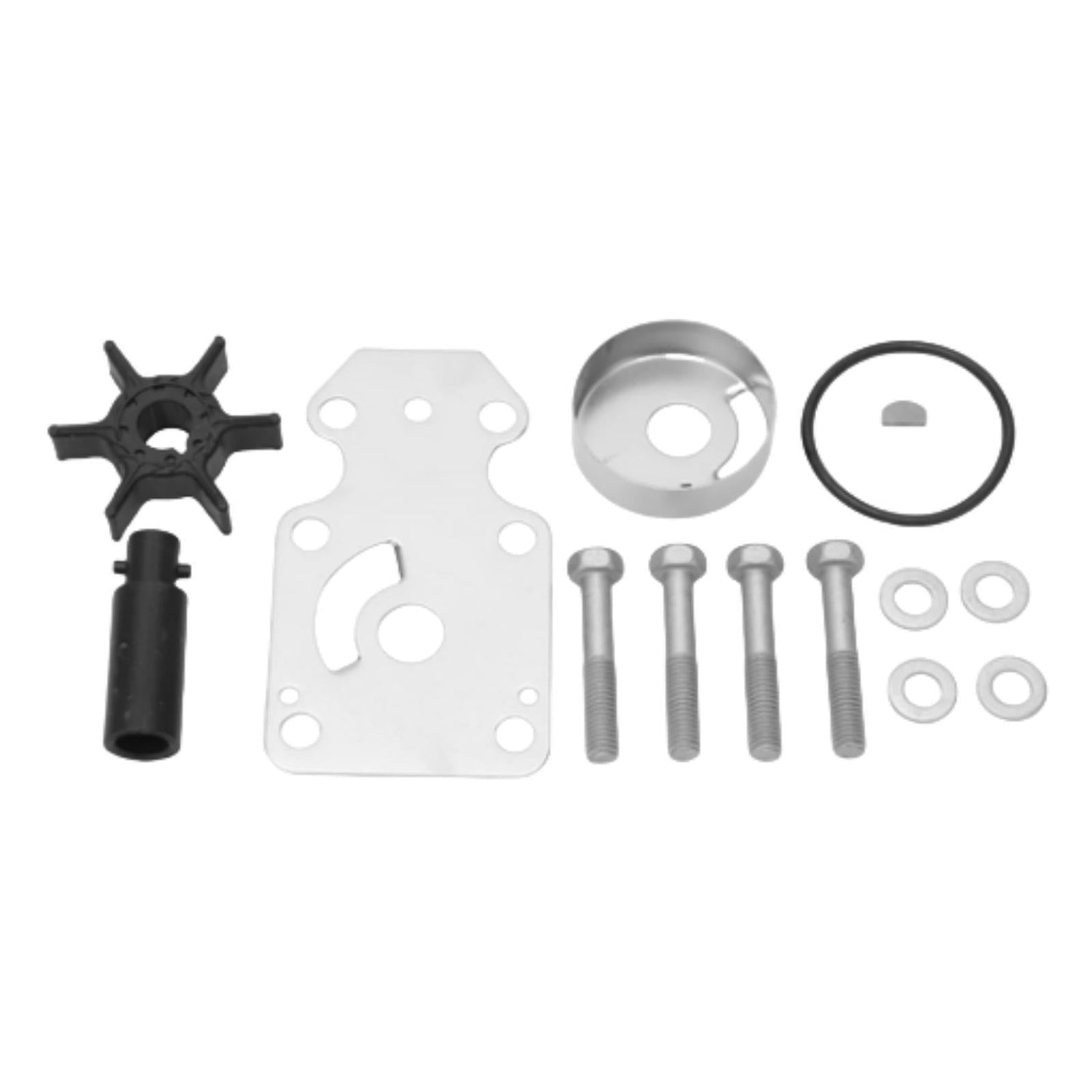

What’s in the Box
- 1 x Cartridge Insert (63V-44322-00-00)
- 1 x Impeller (63V-44352-01-00)
- 1 x Woodruff Key (664-44338-00-00)
- 1 x Outer Plate, Cartridge (68T-44323-00-00)
- 1 x Damper, Water Seal (68T-44366-00-00)
- 1 x O-Ring (93210-44704-00)
- 4 x Bolt, Hexagon (97080-08045-00 / 97095-08045-00)
Installation Notes
- Disconnect the spark plug leads and shift the outboard into neutral.
- Place a drain pan under the lower unit and remove the gear lube drain screw to empty the oil.
- Remove the bolts securing the lower unit (gearcase) to the upper leg of the outboard.
- Carefully separate the lower unit from the driveshaft housing. Be mindful of the shift shaft.
- Unscrew the bolts on the water pump housing cover and lift it off.
- Slide the old impeller off the driveshaft, removing the Woodruff key. Note the rotational direction of the old impeller vanes.
- Clean any debris, salt, or corrosion from the housing, base plate, and driveshaft.
- Install the new Woodruff key, then slide the new impeller onto the shaft while turning the driveshaft clockwise to seat the vanes correctly.
- Install the new cartridge, plate, and seals from the kit.
- Re-install the water pump housing and tighten the bolts to the manufacturer's specified torque.
- Reattach the lower unit, ensuring the driveshaft, shift shaft, and water tube are correctly aligned. Tighten bolts to spec.
- Refill the lower unit with fresh gear lube before starting the engine.
Troubleshooting & FAQ
Will this kit fit my 2015 Yamaha T9.9LEX?
Yes, based on the compatibility chart, this kit is the correct replacement for Yamaha T9.9 models from 2013–2017, including the T9.9LEX high-thrust model.
How can I tell if my water pump impeller is failing?
Common signs include a weak or intermittent water stream from the "telltale" outlet, the engine overheating alarm sounding, or visible steam from the exhaust. A physical inspection showing cracked, brittle, or missing impeller vanes confirms it needs replacement.
What's the difference between part number 69G-W0078-01-00 and 69G-W0078-02-00?
Part number 69G-W0078-02-00 is the latest version that supersedes 69G-W0078-01-00. They are functionally identical for the listed models, but the newer part may include minor material or design updates from the original manufacturer.
How often should I replace my outboard's impeller?
As a preventative maintenance item, it is recommended to replace the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. Usage in saltwater or sandy/silty conditions may require more frequent changes.
The kit includes two part numbers for the bolts. Which one do I use?
The two bolt part numbers (97080-08045-00 and 97095-08045-00) are functionally interchangeable for this application. Manufacturers often have multiple part numbers for the same hardware from different suppliers. All four included bolts will fit correctly.
Can I buy just the impeller instead of the whole kit?
While impellers are available separately, it is best practice to replace the entire kit. Related components like the housing insert, plate, and seals wear over time and can cause a new impeller to fail prematurely if not also replaced.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
