MerCruiser Trim Cylinder Bushing – Fits Alpha One Gen II (Replaces ...
Product Details

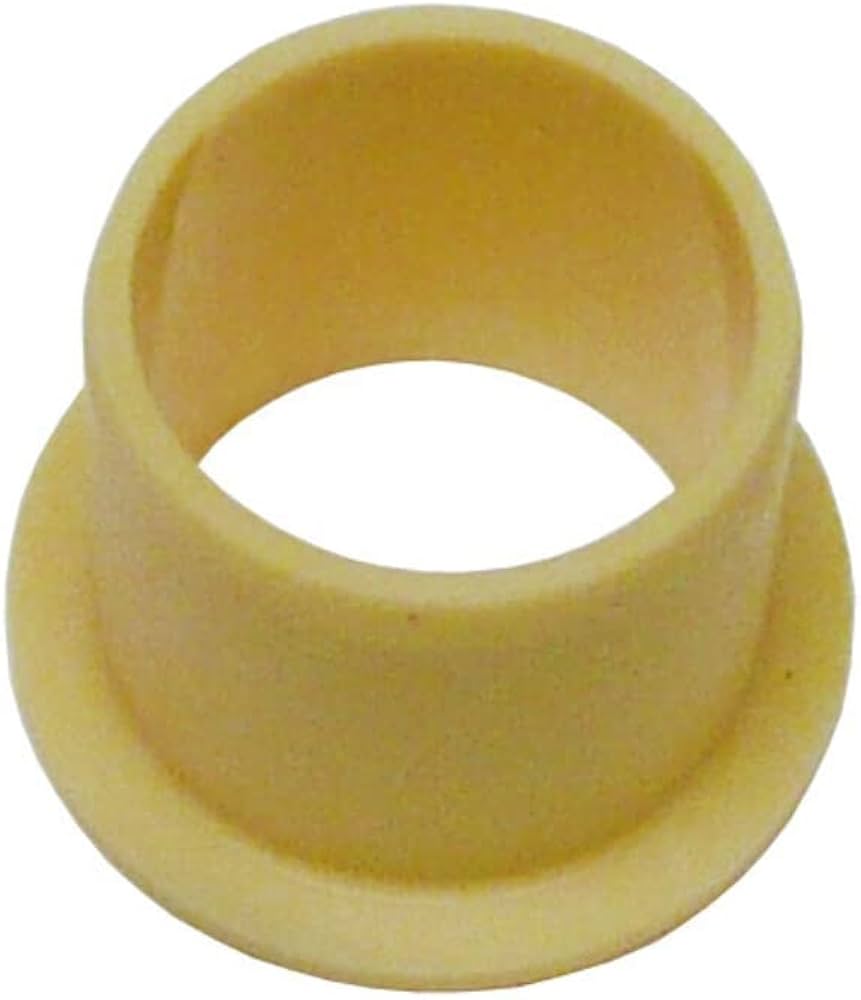

This aftermarket MerCruiser Trim Cylinder Bushing is designed for MerCruiser Alpha One Gen II stern drives from 1991 through 2013, as well as select Bravo models. It fits the anchor pins for the power trim cylinders, ensuring proper alignment and smooth operation.
It serves as a direct replacement for multiple OEM and aftermarket part numbers, including Mercury/MerCruiser 23-8159501, Sierra 18-2341, GLM 26340, and Mallory 9-77002.
- Engineered as a direct-fit replacement for easy installation.
- Constructed from durable, high-quality plastic to resist wear and corrosion.
- It is recommended to replace bushings on both trim cylinders at the same time for balanced performance.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury/MerCruiser | 23-815950 |
| Mercury/MerCruiser | 23-8159501 |
| Mercury/MerCruiser | 8M0214952 |
| Mercury/MerCruiser | 815950Q01 |
| Sierra | 18-2341 |
| Sierra | 18-2341-1 |
| GLM | 26340 |
| Mallory | 9-77002 |
| Mallory | 9-77002-20 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For MerCruiser applications, verify your model and serial number range to ensure correct fitment.
| Brand | Model | Years | OEM Part No. | Notes |
|---|---|---|---|---|
| MerCruiser | Alpha One Gen II | 1991–1995 | 23-8159501 | Serial Range: 0D469859-0F679999 |
| MerCruiser | Alpha One Gen II | 1996–1997 | 23-8159501 | Serial Range: 0F680000-0K999999 |
| MerCruiser | Alpha One Gen II | 1998–2013 | 23-8159501 | Serial Range: 0L100040 & Up |
| MerCruiser | Bravo XZ One | 1998–2002 | 23-8159501 | Serial Range: 0L914990-0M999999 |
| MerCruiser | Bravo XR One | 1998–2009 | 23-8159501 | Various serial ranges |
| MerCruiser | Bravo XR Sportmaster | 23-8159501 | Serial Range: 0M052945 & Up | |
| MerCruiser | Bravo XR Three | 23-8159501 | Serial Range: 0W240000 & Up | |
| MerCruiser | Hi Performance Transom | 23-8159501 | Serial Range: 0W150003 & Up | |
| MerCruiser | Integrated Transom | 23-8159501 | All serial ranges |
Technical Specs
- Product Type
- Trim Cylinder Bushing
- Installation
- Direct replacement
- Housing Material
- Plastic
- Housing Color
- Black
- Dimensions
- 1.5" H x 10.0" W x 9.0" L
- Warranty
- Sierra products carry a 1 year factory warranty against defects
- Other Technical Attributes
- Used for trim cylinder anchor pins on Alpha One Gen II drive systems
What’s in the Box
- 1 x Trim Cylinder Bushing (23-8159501)
Installation Notes
For balanced wear and optimal performance, it is highly recommended to replace the bushings on both the port and starboard trim cylinders at the same time.
- Trim the sterndrive to the full "up" position and engage the trailering lock.
- Place a block of wood under the sterndrive for support and safety.
- Remove the anchor pin connecting the trim cylinder to the gimbal housing.
- Carefully slide the old bushing out of the trim cylinder eye.
- Clean the cylinder eye and inspect for any damage or corrosion.
- Press the new bushing firmly into place until it is fully seated.
- Realign the trim cylinder with the gimbal housing and reinstall the anchor pin.
- Repeat the process for the second trim cylinder.
- Disengage the trailering lock and test the trim/tilt function through its full range of motion.
Troubleshooting & FAQ
How do I know if my trim cylinder bushings are failing?
Symptoms of worn or failed bushings include excessive play or "slop" in the sterndrive, rattling noises from the transom area during operation or when tilting the drive, and uneven or jerky trim movement. A visual inspection may also reveal cracked, deformed, or missing bushings.
Does this kit include bushings for one or both cylinders?
This package contains one bushing. Since sterndrives have two trim cylinders, we recommend purchasing two units and replacing both bushings simultaneously to ensure even wear and balanced load distribution.
Is this part compatible with Bravo I drives?
No, this specific bushing is primarily for Alpha One Gen II and select Bravo XZ/XR models as listed in the compatibility table. Always verify your drive model and serial number before ordering.
What is the difference between this and the OEM part?
This is a direct aftermarket replacement. It is designed to meet or exceed original equipment manufacturer (OEM) specifications for fit, form, and function, but at a more competitive price point.
Can I install this myself?
Yes, this is a common DIY task for boat owners with basic mechanical skills. However, ensuring the sterndrive is properly supported and secured is critical for safety. If you are unsure, we recommend professional installation.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
