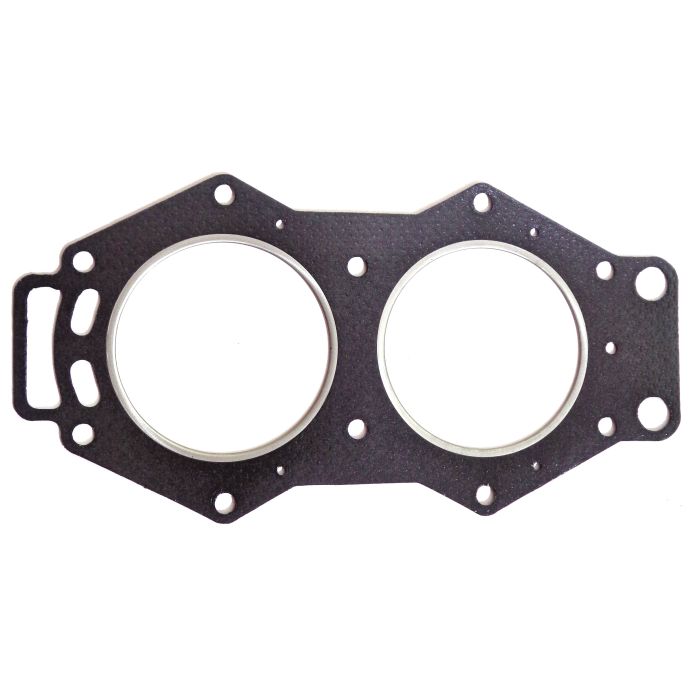

Cylinder Head Gasket – Fits Yamaha 115HP, 130HP & 140HP 2-Stroke Outboards (Replaces 6E5-11181-A0-00, 6E5-11181-A1-00, 6E5-11181-A2-00)
Cylinder Head Gasket – Fits Yamaha 115HP, 130HP & 140HP 2-Stroke Outboards (Replaces 6E5-11181-A0-00, 6E5-11181-A1-00, 6E5-11181-A2-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Cylinder Head Gasket – Fits Yamaha 115HP, 130HP & 140HP 2-Strok...
Product Details
This aftermarket Cylinder Head Gasket – Fits Yamaha 115HP, 130HP & 140HP 2-Stroke Outboards is engineered to meet or exceed OEM specifications. It provides a reliable seal for the cylinder head on a wide range of Yamaha 2-stroke outboards from 115HP to 140HP, covering models manufactured between 1984 and 2009.
It serves as a direct replacement for Yamaha part numbers 6E5-11181-A0-00, 6E5-11181-A1-00, and 6E5-11181-A2-00, and is interchangeable with Sierra 18-3832 and GLM 34960.
- Installation: Direct replacement fit.
- Application: Designed for "Cylinder & Crankcase 2" and "Repair Kit 1" assemblies.
- Fuel System: Compatible with standard gasoline outboard engines.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 6E5-11181-A0-00 | Original part, superseded by A1, then A2. |
| Yamaha | 6E5-11181-A1-00 | Supersedes A0, superseded by A2. |
| Yamaha | 6E5-11181-A2-00 | Current replacement part. |
| Sierra | 18-3832 | Aftermarket equivalent. |
| GLM | 34960 | Aftermarket equivalent. |
Engine & Model Compatibility
Confirm your engine model and year in the table below to ensure correct fitment.
This part is designed exclusively for the following Yamaha outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yamaha | 115ETLN, 115ETXN | 115 | 2-Stroke | 1984 | 6E5-11181-A0-00 |
| Yamaha | 115ETLK, 115ETXK | 115 | 2-Stroke | 1985 | 6E5-11181-A0-00 |
| Yamaha | 115ETLJ, 115ETXJ | 115 | 2-Stroke | 1986 | 6E5-11181-A0-00 |
| Yamaha | 115ETLH, 115ETLH-JD, 115ETXH | 115 | 2-Stroke | 1987 | 6E5-11181-A0-00 |
| Yamaha | 115ETLG, 115ETLG-JD, 115ETXG | 115 | 2-Stroke | 1988 | 6E5-11181-A0-00 |
| Yamaha | 115ETLF, 115ETLF-JD, 115ETXF | 115 | 2-Stroke | 1989 | 6E5-11181-A0-00 |
| Yamaha | 115ETLD, 115ETLD-JD, 115ETLDA, 115ETXD, 115ETXDA | 115 | 2-Stroke | 1990 | 6E5-11181-A0-00 |
| Yamaha | 115TJRP, 115TLRP, 115TXRP, C115TLRP | 115 | 2-Stroke | 1991 | 6E5-11181-A0-00 |
| Yamaha | 115TJRQ, 115TLRQ, 115TXRQ, C115TLRQ, C115TXRQ | 115 | 2-Stroke | 1992 | 6E5-11181-A0-00 |
| Yamaha | 115TJRR, 115TLRR, 115TXRR, C115TLRR, C115TXRR, P115TLRR | 115 | 2-Stroke | 1993 | 6E5-11181-A0-00 |
| Yamaha | 115TJRS, 115TLRS, 115TXRS, C115TLRS, C115TXRS, P115TLRS | 115 | 2-Stroke | 1994 | 6E5-11181-A0-00 |
| Yamaha | 115TJRT, 115TLRT, 115TXRT, C115TLRT, C115TXRT, P115TLRT | 115 | 2-Stroke | 1995 | 6E5-11181-A0-00 |
| Yamaha | 115TJRU, 115TLRU, C115TLRU, C115TXRU, P115TLRU, S115TLRU, S115TXRU | 115 | 2-Stroke | 1996 | 6E5-11181-A0-00 |
| Yamaha | 115TJRV, 115TLRV, C115TLRV, C115TXRV, S115TLRV, S115TXRV | 115 | 2-Stroke | 1997 | 6E5-11181-A0-00 |
| Yamaha | 115TJRW, 115TLRW, B115TLRW, C115TLRW, C115TXRW, S115TLRW, S115TXRW | 115 | 2-Stroke | 1998 | 6E5-11181-A0-00 |
| Yamaha | 115TJRX, B115TLRX, C115TLRX, C115TXRX, S115TLRX, S115TXRX | 115 | 2-Stroke | 1999 | 6E5-11181-A0-00 |
| Yamaha | 115TJRY, 115TLRY, 115TXRY, C115TLRY, C115TXRY | 115 | 2-Stroke | 2000 | 6E5-11181-A0-00 |
| Yamaha | 115TJRZ, 115TLRZ, 115TXRZ | 115 | 2-Stroke | 2001 | 6E5-11181-A0-00 |
| Yamaha | 115TLRA, 115TXRA | 115 | 2-Stroke | 2002 | 6E5-11181-A0-00 |
| Yamaha | 115TLRB, 115TXRB | 115 | 2-Stroke | 2003 | 6E5-11181-A0-00 |
| Yamaha | 115TLRC, 115TXRC | 115 | 2-Stroke | 2004 | 6E5-11181-A0-00 |
| Yamaha | 115TLR, 115TLRD, 115TXR, 115TXRD | 115 | 2-Stroke | 2005 | 6E5-11181-A0-00 |
| Yamaha | 115TLR | 115 | 2-Stroke | 2006–2009 | 6E5-11181-A0-00 |
| Yamaha | 130ETLG, 130ETXG | 130 | 2-Stroke | 1988 | 6E5-11181-A0-00 |
| Yamaha | 130ETLF, 130ETXF, L130ETXF | 130 | 2-Stroke | 1989 | 6E5-11181-A0-00 |
| Yamaha | 130ETLD, 130ETLDA, 130ETXD, 130ETXDA, L130ETXD, L130ETXDA | 130 | 2-Stroke | 1990 | 6E5-11181-A0-00 |
| Yamaha | 130TLRP, 130TXRP, L130TXRP | 130 | 2-Stroke | 1991 | 6E5-11181-A0-00 |
| Yamaha | 130TLRQ, 130TXRQ, L130TXRQ | 130 | 2-Stroke | 1992 | 6E5-11181-A0-00 |
| Yamaha | 130TLRR, 130TXRR, L130TXRR | 130 | 2-Stroke | 1993 | 6E5-11181-A0-00 |
| Yamaha | 130TLRS, 130TXRS, L130TXRS | 130 | 2-Stroke | 1994 | 6E5-11181-A0-00 |
| Yamaha | 130TLRT, 130TXRT, L130TXRT | 130 | 2-Stroke | 1995 | 6E5-11181-A0-00 |
| Yamaha | 130TLRU, L130TXRU, S130TLRU, S130TXRU | 130 | 2-Stroke | 1996 | 6E5-11181-A0-00 |
| Yamaha | 130TLRV, L130TXRV, S130TLRV, S130TXRV | 130 | 2-Stroke | 1997 | 6E5-11181-A0-00 |
| Yamaha | 130TLRW, L130TXRW, S130TLRW, S130TXRW | 130 | 2-Stroke | 1998 | 6E5-11181-A0-00 |
| Yamaha | 130TLRX, L130TXRX, S130TLRX, S130TXRX | 130 | 2-Stroke | 1999 | 6E5-11181-A0-00 |
| Yamaha | 130TLRY, 130TXRY, L130TXRY | 130 | 2-Stroke | 2000 | 6E5-11181-A0-00 |
| Yamaha | 130TLRZ, 130TXRZ, L130TXRZ | 130 | 2-Stroke | 2001 | 6E5-11181-A0-00 |
| Yamaha | 130TLRA, 130TXRA | 130 | 2-Stroke | 2002 | 6E5-11181-A0-00 |
| Yamaha | 130TLRB, 130TXRB | 130 | 2-Stroke | 2003 | 6E5-11181-A0-00 |
| Yamaha | 130TLRC, 130TXRC | 130 | 2-Stroke | 2004 | 6E5-11181-A0-00 |
| Yamaha | 140AET0 | 140 | 2-Stroke | 1984–1985 | 6E5-11181-A0-00 |
| Yamaha | 140AET0 | 140 | 2-Stroke | 1987 | 6E5-11181-A0-00 |
| Yamaha | 140BET0 | 140 | 2-Stroke | 1988–1989 | 6E5-11181-A0-00 |
| Yamaha | 140C, 140CETO | 140 | 2-Stroke | 1994–2000 | 6E5-11181-A0-00 |
| Yamaha | 140B, 140BETL, 140BETX | 140 | 2-Stroke | 2001–2009 | 6E5-11181-A0-00 |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Direct Replacement
- Fuel Type
- Gasoline
- Housing Material
- Composite/Metal
- Application
- For Cylinder & Crankcase 2, Repair Kit 1
- Dimensions
- 17.63 in (L) x 7.06 in (W) x 0.13 in (H)
What’s in the Box
- 1 x Gasket, Cylinder Head 1 (Replaces 6E5-11181-A2-00)
Installation Notes
- Safety First: Disconnect the battery and ensure the engine is cool before beginning work.
- Drain Fluids: Drain the engine coolant to prevent spills.
- Component Removal: Carefully remove the cylinder head cover and any interfering components according to your service manual.
- Remove Old Gasket: Take off the old cylinder head gasket. Note its orientation.
- Clean Surfaces: Thoroughly clean both the cylinder block and cylinder head mating surfaces. Remove all old gasket material, sealant, oil, and debris. A clean, smooth surface is crucial for a proper seal.
- Install New Gasket: Place the new gasket, ensuring it is correctly aligned with all bolt holes and passages. Do not use sealant unless specified by the manufacturer.
- Reassemble: Reinstall the cylinder head. Tighten bolts in the sequence and to the torque values specified in your engine's service manual to ensure even pressure.
- Final Checks: Reconnect all components, refill coolant, and connect the battery. Check for leaks after starting the engine.
Troubleshooting & FAQ
How do I know if this gasket fits my specific engine model?
The most reliable method is to check your engine's model number and year against the compatibility table provided on this page. You can also compare your old gasket's part number to the cross-reference numbers listed in our Part Number Matrix.
What are the common signs of a failed cylinder head gasket?
Symptoms of a blown head gasket include engine overheating, loss of power, white smoke from the exhaust (burning coolant), milky or foamy oil, and bubbling in the radiator or coolant reservoir. These indicate a breach between the combustion chamber and coolant passages.
What is the difference between Yamaha part numbers 6E5-11181-A0-00, A1, and A2?
This is a supersession chain. 6E5-11181-A0-00 was the original part, which was later improved and replaced by ...A1-00, and then again by ...A2-00. Each new version is a direct, improved replacement for the previous ones. Our gasket is made to the latest ...A2-00 specification.
Is any special sealant required during installation?
Generally, modern head gaskets are designed to be installed dry without any additional sealants. Applying sealant can interfere with the gasket's ability to create a proper seal. Always follow the specific instructions in your outboard's official service manual.
How can I confirm my old part number?
The part number is often stamped or printed directly on the gasket. If it's unreadable, you can find the correct OEM part number by looking up your engine's model and serial number in an online parts catalog from a reputable source like Yamaha.
What does "For Cylinder & Crankcase 2" mean?
In engine diagrams, parts are often located with reference to larger assemblies. This note means the gasket is used in the assembly labeled "Cylinder & Crankcase 2" or "Repair Kit 1" in the official Yamaha service diagrams, helping mechanics pinpoint its exact location.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
