Hermetic Gasket, Water Pump Base – Fits Parsun 5HP (Replaces 6E0-45315-A0)
Hermetic Gasket, Water Pump Base – Fits Parsun 5HP (Replaces 6E0-45315-A0) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Hermetic Gasket, Water Pump Base – Fits Parsun 5HP (Replaces 6E0-45315-A0) is backordered and will ship as soon as it is back in stock.
Product Details

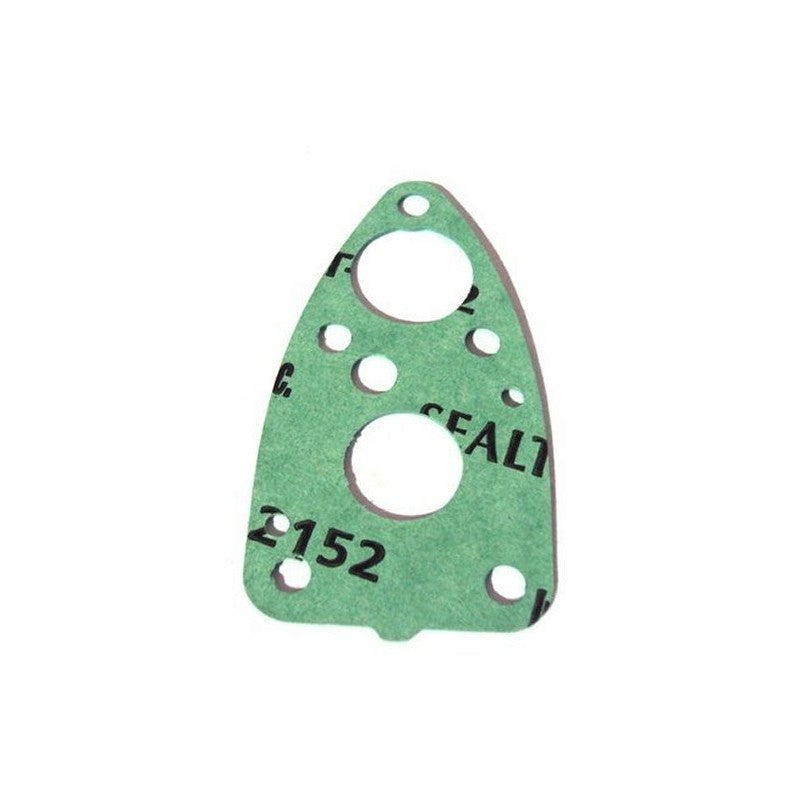

This Hermetic Gasket, Water Pump Base creates a secure, leak-free seal between the water pump base and the gear housing. It is designed specifically for Parsun 5HP 4-stroke outboard motors, including 4AC, MSHKZ, AS, 5C, CMH, and CS models.
It serves as a direct replacement for Parsun part number PAF4-03000011 and is a cross-reference for Yamaha part 6E0-45315-A0.
- Installs between the water pump base and gear housing.
- Engineered to prevent water leaks and maintain cooling system pressure.
- Class: RM
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Parsun | PAF4-03000011 |
| Yamaha | 6E0-45315-A0 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Parsun engines, this gasket fits a range of 5HP 4-stroke models. Verify your model designation against the list.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Parsun | 4AC | 5 | 4-Stroke | PAF4-03000011 | |
| Parsun | MSHKZ | 5 | 4-Stroke | PAF4-03000011 | |
| Parsun | AS | 5 | 4-Stroke | PAF4-03000011 | |
| Parsun | 5C | 5 | 4-Stroke | PAF4-03000011 | |
| Parsun | CMH | 5 | 4-Stroke | PAF4-03000011 | |
| Parsun | CS | 5 | 4-Stroke | PAF4-03000011 | |
| Yamaha | 5 | 4-Stroke | 6E0-45315-A0 | Cross-referenced part number |
Technical Specs
- Product Type
- Water Pump Base Gasket
- Installation
- Between water pump base and gear housing
- Housing Material
- Gasket material (specific type not specified)
- Dimensions
- 10 x 9 x 1 cm
- Weight
- 0.027 kg (0.06 lb)
- Other Technical Attributes
- Class: RM
What’s in the Box
- 1 x Hermetic Gasket, Water Pump Base (PAF4-03000011/6E0-45315-A0)
Installation Notes
- Disconnect the battery and shift linkage before starting.
- Carefully unbolt and lower the gearcase from the outboard's upper section.
- Remove the water pump housing cover, impeller, and wear plate.
- Unbolt and lift away the water pump base to access the gasket.
- Remove the old gasket completely. Scrape away any residue from both the gear housing and pump base surfaces.
- Position the new gasket onto the clean gear housing surface, ensuring alignment with bolt holes.
- Reinstall the water pump base, torquing bolts to the manufacturer's specification.
- Reassemble the wear plate, new impeller, and pump housing.
- Raise the gearcase back into position, securing it with its mounting bolts.
- Reconnect the shift linkage and battery terminals. Test operation on the water.
Troubleshooting & FAQ
How do I know if this gasket will fit my engine?
This gasket is made for Parsun 5HP 4-stroke outboards (models 4AC, MSHKZ, AS, 5C, CMH, CS) and cross-references Yamaha part 6E0-45315-A0. The best way to ensure a match is to check your engine's service manual or examine the part number on the old gasket.
What are the signs of a failed water pump base gasket?
Common symptoms include water leaking from the seam between the gearcase and the drive shaft housing, engine overheating alarms, or a noticeably weaker water stream from the tell-tale outlet, indicating a loss of cooling system pressure.
Do I need to use sealant with this gasket?
Generally, this type of hermetic gasket is designed to be installed dry. The material compresses to form a tight seal without chemical sealants. Using sealant can sometimes cause the gasket to slip or not compress evenly. Always follow the recommendations in your engine's official service manual.
Can I reuse my old gasket?
No. Gaskets are considered single-use components. They create a seal by being compressed and deformed. Once the pressure is released, they lose their ability to form a reliable, leak-proof seal and must be replaced.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
