Upper Casing Gasket – Fits Yamaha 20/25/30HP & WaveRunner 500 (Replaces 61T-45113-A0-00, 689-45113-A1-00)
Upper Casing Gasket – Fits Yamaha 20/25/30HP & WaveRunner 500 (Replaces 61T-45113-A0-00, 689-45113-A1-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Upper Casing Gasket – Fits Yamaha 20/25/30HP & WaveRunner 500 (...
Product Details

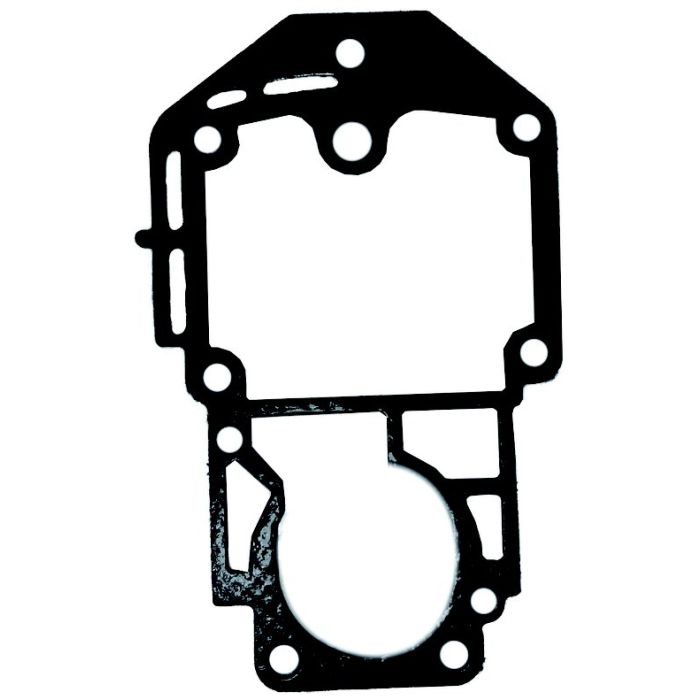

This high-quality Upper Casing Gasket – Fits Yamaha 20/25/30HP & WaveRunner 500 provides a precision seal between the upper casing and the crankcase. It's designed for a wide range of Yamaha 2-stroke outboard motors from 20-30 HP (1984–2017) and 500cc WaveRunner/WaveJammer models (1987–1992).
It directly replaces Yamaha OEM part numbers 61T-45113-A0-00, 689-45113-A1-00, 689-45113-01-00, and 689-45113-10-00, and interchanges with Sierra 18-0739.
- Ensures a reliable, leak-free seal for optimal engine performance.
- Installs between the upper casing and crankcase assembly.
- Engineered to meet or exceed original equipment specifications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 61T-45113-A0-00 | Current active part number. |
| Yamaha | 689-45113-A1-00 | Superseded by 61T-45113-A0-00. |
| Yamaha | 689-45113-01-00 | Superseded by 689-45113-A1-00. |
| Yamaha | 689-45113-10-00 | Superseded by 689-45113-A1-00. |
| Sierra | 18-0739 | Aftermarket cross-reference. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Yamaha Outboards: Fits various 2-stroke 20, 25, and 30 horsepower models from 1984 to 2017. Please verify your specific model and year.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 20C (6A9) | 20 | 2-Stroke | 1985–2006 | 61T-45113-A0-00 | Various suffixes |
| Yamaha | 20CMHS (6A9) | 20 | 2-Stroke | 2003–2006 | 61T-45113-A0-00 | |
| Yamaha | 25ELN/25ESN/25LN/25SN | 25 | 2-Stroke | 1984 | 689-45113-A1-00 | |
| Yamaha | 25ELK/25ESK/25LK/25SK | 25 | 2-Stroke | 1985 | 689-45113-A1-00 | |
| Yamaha | 25ELJ/25ESJ/25LJ/25SJ | 25 | 2-Stroke | 1986 | 689-45113-A1-00 | |
| Yamaha | 25ELH/25ESH/25LH/25SH | 25 | 2-Stroke | 1987 | 689-45113-A1-00 | |
| Yamaha | 25D (695) | 25 | 2-Stroke | 1985–1993 | 61T-45113-A0-00 | |
| Yamaha | 25B/25BMHL/25BMHS | 25 | 2-Stroke | 2001–2017 | 61T-45113-A0-00 | Multiple model variations |
| Yamaha | E25BMH/E25BMHS/E25BMHL | 25 | 2-Stroke | 2003–2017 | 61T-45113-A0-00 | |
| Yamaha | C25ELHR/C25ELRR/C25MLHR/C25MSHR | 25 | 2-Stroke | 1993 | 689-45113-A1-00 | |
| Yamaha | C25ELHS/C25ELRS/C25MLHS/C25MSHS | 25 | 2-Stroke | 1994 | 689-45113-A1-00 | |
| Yamaha | C25ELHT/C25ELRT/C25MLHT/C25MSHT | 25 | 2-Stroke | 1995 | 689-45113-A1-00 | |
| Yamaha | 30ELN/30ESN | 30 | 2-Stroke | 1984 | 689-45113-A1-00 | |
| Yamaha | 30ELK/30ESK | 30 | 2-Stroke | 1985 | 689-45113-A1-00 | |
| Yamaha | 30ELJ/30ESJ | 30 | 2-Stroke | 1986 | 689-45113-A1-00 | |
| Yamaha | 30A (689) | 30 | 2-Stroke | 1985–1993 | 61T-45113-A0-00 | |
| Yamaha | 30G (61T) | 30 | 2-Stroke | 1990–1999 | 61T-45113-A0-00 | |
| Yamaha | 30H/30HMHL/30HMHS | 30 | 2-Stroke | 2001–2017 | 61T-45113-A0-00 | Multiple model variations |
| Yamaha | CV30ELF/CV30ELD | 30 | 2-Stroke | 1989–1990 | 689-45113-A1-00 | |
| Yamaha | C30ELRP/C30ELRQ/C30ELRR | 30 | 2-Stroke | 1991–1993 | 689-45113-A1-00 |
Yamaha Personal Watercraft (PWC): Fits select WaveJammer, WaveRunner, and SuperJet models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | WJ500 (WaveJammer) | - | 2-Stroke | 1987–1990 | 61T-45113-A0-00 | 500cc model |
| Yamaha | WR500 (WaveRunner) | - | 2-Stroke | 1987–1992 | 61T-45113-A0-00 | 500cc model |
| Yamaha | SJ650 | - | 2-Stroke | 1997 | 61T-45113-A0-00 |
Technical Specs
- Product Type
- Upper Casing Gasket
- Installation Location
- Between upper casing and crankcase
- Dimensions
- 25.5 cm × 15.0 cm × 0.5 cm
- Warranty
- 1-Year Manufacturer Warranty
- Part Status
- Aftermarket (Meets OEM Specifications)
What’s in the Box
- 1 x Upper Casing Gasket (Replaces 61T-45113-A0-00 / 689-45113-A1-00)
Installation Notes
- Ensure the engine is off and the battery is disconnected for safety. Allow the engine to cool completely.
- Drain engine oil and coolant as required by your service manual to prevent spills.
- Carefully remove any components obstructing access to the upper casing. Keep fasteners organized.
- Unbolt and remove the upper casing assembly.
- Remove the old gasket and thoroughly clean both mating surfaces. Ensure they are free of old gasket material, oil, and debris.
- Position the new gasket correctly. Do not use sealant unless explicitly required by the manufacturer's service manual.
- Reinstall the upper casing, tightening bolts to the specified torque in the sequence recommended by the service manual.
- Reassemble all other components, refill fluids, and reconnect the battery.
- Start the engine and carefully inspect for any leaks around the newly sealed area.
Troubleshooting & FAQ
How do I confirm this gasket fits my exact engine model?
The most reliable method is to match your engine's model number and year against our compatibility tables. You can also cross-reference the OEM part number stamped on your old gasket or listed in your service manual with the numbers in our Part Number Matrix.
What are the common signs of a leaking or failed upper casing gasket?
Symptoms of a bad gasket include visible oil or water leaks around the seam between the upper casing and crankcase, engine overheating, a milky appearance in the oil (indicating water intrusion), or a noticeable loss of compression and power.
Should I use sealant or adhesive with this gasket?
This gasket is designed to create a seal on its own. In most cases, you should not use any additional sealant. Always consult your official service manual; if it specifies a sealant for your particular model, follow that recommendation.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
