Water Pump Impeller – Fits Johnson/Evinrude 35-55 HP (Replaces 396809, 777214)

$14.68 $23.00

Shipping calculated at checkout.

Water Pump Impeller – Fits Johnson/Evinrude 35-55 HP (Replaces 396809, 777214) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

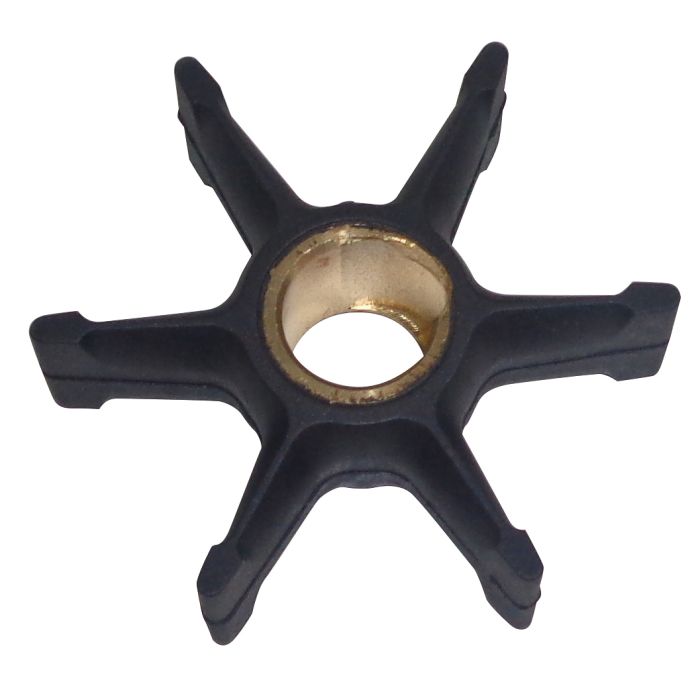

This is a replacement Water Pump Impeller for Johnson/Evinrude 35-55 HP (Replaces 396809, 777214), designed for 2-stroke outboard motors manufactured between 1986 and 1989. It serves as a direct-fit component to restore your engine's cooling system performance.

This impeller is a direct interchange for Johnson/Evinrude part numbers 396809, 777214, and 777828, as well as aftermarket references like Sierra 18-3368.

Constructed from durable neoprene rubber with a brass/metal alloy hub for longevity.
Engineered with 6 blades for efficient water flow.
Installation requires a wedge style key (not included).

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Johnson/Evinrude	396809
Johnson/Evinrude	777214
Johnson/Evinrude	777828
Sierra	18-3368
GLM	89780
Mallory	9-45208
SEI	96-365-03BE
Red Rhino	JE-206

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This impeller fits a range of Johnson/Evinrude outboard motors. Please verify your specific model and year against the compatibility chart.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Johnson/Evinrude	Various	40	2-Stroke	1986–1988	396809/777214
Johnson/Evinrude	Various	45	2-Stroke	1989	396809/777214
Johnson/Evinrude	Commercial	45	2-Stroke	1986–1988	396809/777214
Johnson/Evinrude	Various	48	2-Stroke	1987–1988	396809/777214
Johnson/Evinrude	Various	50	2-Stroke	1986–1988	396809/777214
Johnson/Evinrude	Various	55	2-Stroke	1989	396809/777214
Johnson/Evinrude	Commercial	55	2-Stroke	1986–1988	396809/777214

Technical Specs

Product Type: Water Pump Impeller
Material: Neoprene Rubber with Brass/Metal Alloy Hub
Blades: 6
Dimensions: Height: 6.0 in, Width: 7.13 in, Length: 1.0 in
Weight: 0.06 kg (2.1 oz)
Application: Water Cooling System
Installation: Requires Wedge Style Key (such as 0344470)

What’s in the Box

1 x Water Pump Impeller (396809/777214)

Installation Notes

Disconnect the battery and ensure the engine is turned off and cool.
Remove the lower unit (gearcase) from the outboard motor.
Unbolt and remove the water pump housing cover to expose the old impeller.
Take note of the old impeller's blade orientation before removing it from the drive shaft.
Remove the old impeller and the existing key. Clean the housing interior of any debris or corrosion.
Lightly lubricate the new impeller and the inside of the housing with marine grease.
Install the new wedge key into the shaft, then slide the new impeller onto the drive shaft, rotating it in the direction of engine operation to seat the blades correctly.
Reinstall the water pump housing and torque its bolts to the manufacturer's specification.
Re-attach the lower unit and test the engine's cooling system function at a safe location.

Troubleshooting & FAQ

How do I know if this impeller fits my specific engine model?

The most reliable method is to cross-reference your existing impeller's part number with the numbers listed in our Part Number Matrix. You can also consult the Engine & Model Compatibility table. If your engine's part number or model is not listed, this part may not be compatible.

Does this impeller come with the required wedge key?

No, the wedge key (part number 0344470 or equivalent) is required for installation but is not included with this impeller.

What are the signs of a failing water pump impeller?

Common signs include a weak or non-existent water stream from the "telltale" outlet, engine overheating alarms, and reduced engine performance. In severe cases, a damaged impeller can lead to a complete loss of cooling and catastrophic engine damage.

How often should I replace my outboard's impeller?

As a general maintenance rule, it is recommended to replace the water pump impeller every one to two years, or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater).

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
