Product Details

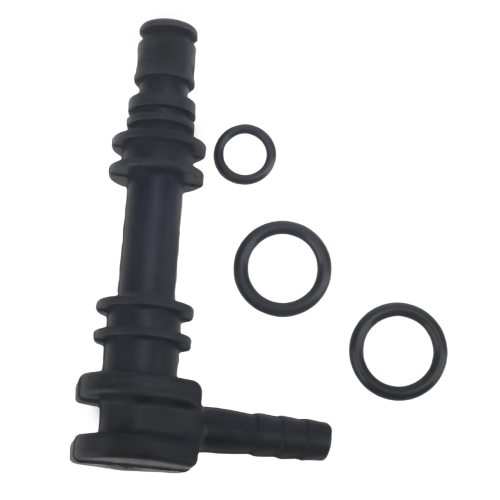

This is an aftermarket Gear Lube Reservoir Fitting – Fits Mercury/MerCruiser Alpha One Gen II & Bravo Sterndrives. It is designed for transom shield mounting on MerCruiser Alpha One Gen II (1998 and newer) and all Bravo series sterndrives, providing a crucial connection point for the gear lube system.
This assembly directly replaces Mercury/MerCruiser OEM part numbers 22-861150T02, 22-861150A2, 22-861150A1, and the connector part 22-861163.
- Installs directly into the transom shield assembly.
- Features a 90-degree quick-connect plastic design for straightforward hose attachment.
- Note: Installation may require an E-clip (part no. 53-87843), which is sold separately.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Mercury/MerCruiser | 22-861150T02 | Current OEM Part Number |
| Mercury/MerCruiser | 22-861150A2 | Superseded by 22-861150T02 |
| Mercury/MerCruiser | 22-861150A1 | Superseded by 22-861150A2 |
| Mercury/MerCruiser | 22-861163 | Connector component of the assembly |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This fitting is designed for various MerCruiser sterndrive models from 1998 onwards.
| Brand | Model | Years | OEM Part No. | Notes |
|---|---|---|---|---|
| MerCruiser | Alpha One Gen II | 1998–onward | 22-861150T02 | Fits in transom shield |
| MerCruiser | Bravo 1 | 1998–onward | 22-861150T02 | Fits in transom shield |
| MerCruiser | Bravo 2 | 1998–onward | 22-861150T02 | Fits in transom shield |
| MerCruiser | Bravo 3 | 1998–onward | 22-861150T02 | Fits in transom shield |
| MerCruiser | Race Sterndrive | 2002–2006 | 22-861150T02 | Per aftermarket fit data |
Technical Specs
- Product Type
- Gear Lube Reservoir Fitting Assembly
- Installation
- Transom shield mount
- Connection
- 90-degree plastic fitting
- Housing Material
- Plastic
- Housing Color
- Black
- Fitting Type
- 90-degree quick-connect
- Other Technical Attributes
- May require E-clip (53-87843) sold separately
What’s in the Box
When purchased as individual fitting:
- 1 x Fitting Assembly (replaces 22-861150T02)
When purchased as a kit (check listing title):
- 1 x Fitting Assembly (replaces 22-861150T02)
- 1 x Gear Lube Hose Connector (replaces 22-861163)
- 1 x O-Ring (replaces 25-627021)
- 2 x O-Rings (replaces 25-201951)
Installation Notes
- Locate the existing gear lube reservoir fitting on the inner side of the transom shield.
- Place an oil-absorbent pad or container beneath the fitting to catch any drips.
- Carefully disconnect the lube hose from the quick-connect fitting.
- Remove the E-clip or other retaining fastener holding the old fitting in place.
- Remove the old fitting assembly from the transom shield.
- Clean the mounting surface and ensure it is free of debris.
- Install the new O-rings on the new fitting and insert it into the transom shield.
- Secure the new fitting using the original (or a new) E-clip.
- Firmly press the gear lube hose onto the quick-connect port until it clicks into place.
- Check the gear lube reservoir level and top off if necessary. Monitor for leaks before and after operation.
Troubleshooting & FAQ
How do I know if this fitting is leaking?
A common sign of failure is a visible leak of gear lube (a thick, dark oil) around the fitting on the transom, either inside or outside the boat. A constantly dropping level in the gear lube reservoir without any other visible leaks is also a strong indicator that this fitting may need replacement.
Is the E-clip (53-87843) always necessary for installation?
The E-clip is the standard method for securing this fitting. While you may be able to reuse your original clip, they are small and easily lost or damaged during removal. We recommend having a new one on hand to ensure a secure installation.
My old part number is 22-861150A1. Will this T02 part fit?
Yes. Part number 22-861150T02 is the current direct replacement for older versions like 22-861150A1 and 22-861150A2. They are functionally identical and share the same fitment for the specified MerCruiser models.
What is the difference between this 90-degree fitting and a straight one?
This 90-degree fitting is specifically designed for the tight space and hose angle required in the transom mount location on Alpha One Gen II and Bravo drives. A straight fitting would not orient the hose correctly and will not work for this application.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
