Lower Unit Assembly – Fits Mercury/Mercruiser 40-60 HP EFI 4-Stroke...
Product Details

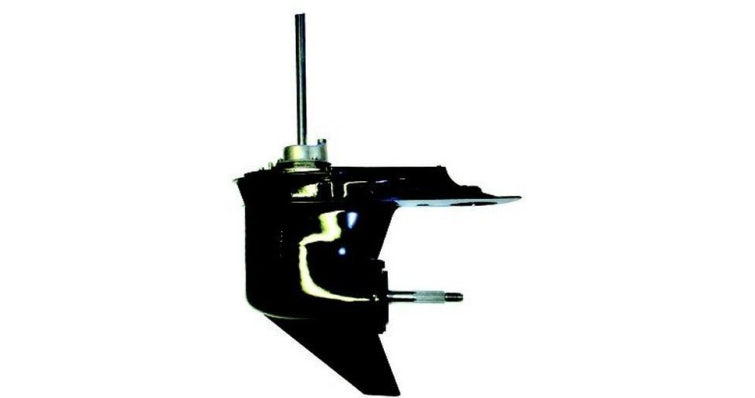

This is a complete Lower Unit Assembly for Mercury/Mercruiser 40-60 HP EFI 4-Stroke outboards, specifically designed for models with a 25" extra-long shaft and a 2.33:1 gear ratio. It is engineered for a precise fit on engines manufactured from approximately 2005 and later, providing a reliable, direct-fit replacement for your original gearcase.
It serves as a direct interchange for Mercury part number 1667-9011J41 and SEI Engineering REC1667-9011J41.
- Simple bolt-on installation requires no special modifications.
- Comes complete with a new water pump pre-installed.
- Built to withstand demanding marine environments.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 1667-9011J41 |
| SEI Engineering | REC1667-9011J41 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This unit is designed for specific Mercury & Mercruiser EFI 4-Stroke models requiring a 25-inch shaft.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | 40 EFI | 40 | 4-Stroke | 0P153500–0P400999 | 1667-9011J41 | 25" Shaft |
| Mercury | 40 EFI | 40 | 4-Stroke | 0T409000–1B344306 | 1667-9011J41 | 25" Shaft |
| Mercury | 50 EFI | 50 | 4-Stroke | 0P153500–0P400999 | 1667-9011J41 | 25" Shaft |
| Mercury | 50 EFI | 50 | 4-Stroke | 0T409000–1B344306 | 1667-9011J41 | 25" Shaft |
| Mercury | 60 EFI | 60 | 4-Stroke | 0P153500–0P400999 | 1667-9011J41 | 25" Shaft |
| Mercury | 60 EFI | 60 | 4-Stroke | 0T409000–1B344306 | 1667-9011J41 | 25" Shaft |
Technical Specs
- Product Type
- Complete Lower Unit Assembly
- Installation
- Bolt-on replacement
- Gear Ratio
- 2.33:1
- Torpedo Diameter
- 107.95 mm (4.25 inches)
- Shaft Length
- 25" (Extra Long/XL)
- Dimensions
- Height: 129.0 cm, Width: 27.0 cm, Length: 68.5 cm
- Weight
- 24.0 kg (52.9 lbs)
- Water Pump
- Included
What’s in the Box
- 1 x Complete Gear Housing Assembly (1667-9011J41)
Installation Notes
- Disconnect the battery leads for safety.
- Place a drain pan under the gearcase and remove the drain/fill screws to empty the gear lube.
- Remove the mounting bolts securing the lower unit to the outboard midsection.
- Carefully separate the lower unit, ensuring the shift shaft linkage is disconnected.
- Clean the mounting surfaces on the midsection and inspect the driveshaft splines for wear.
- Apply marine grease to the new driveshaft splines and position the new lower unit for installation.
- Align the driveshaft, water tube, and shift shaft. Re-install the mounting bolts and torque to manufacturer specifications.
- Fill the gearcase with new, recommended marine gear lubricant until it flows from the upper vent hole.
- Install and tighten the vent and fill screws with new gaskets.
- Reconnect the battery and test the engine's shifting and operation in a safe water environment. Check for leaks.
Troubleshooting & FAQ
How do I confirm this lower unit fits my engine?
Check your engine's serial number against the ranges in the "Engine & Model Compatibility" table. You must also confirm your outboard requires a 25" (Extra Long) shaft and has a 2.33:1 gear ratio. The original OEM part number should be 1667-9011J41.
What are the signs my existing lower unit is failing?
Common symptoms include a grinding or clunking noise during shifting or operation, metal shavings in the gear lube (a small amount is normal, but large flakes are a bad sign), water in the gear lube (appearing milky or cloudy), or a bent/damaged propeller shaft.
Is the water pump and impeller included?
Yes, this is a complete assembly that includes a new, pre-installed water pump and impeller. No need to purchase these separately.
What kind of gear lube should I use?
Always use a high-quality marine gear lubricant recommended for your Mercury outboard. Check your engine's service manual for the specific weight and type (e.g., 80W-90 High Performance Gear Lube).
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
