Product Details

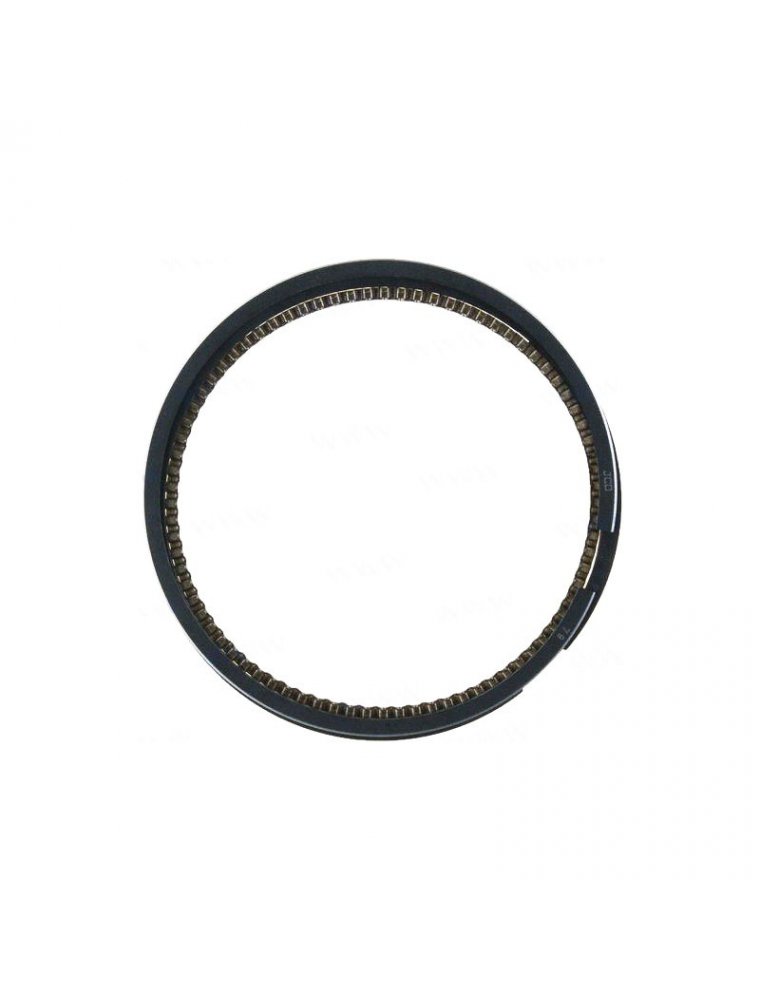

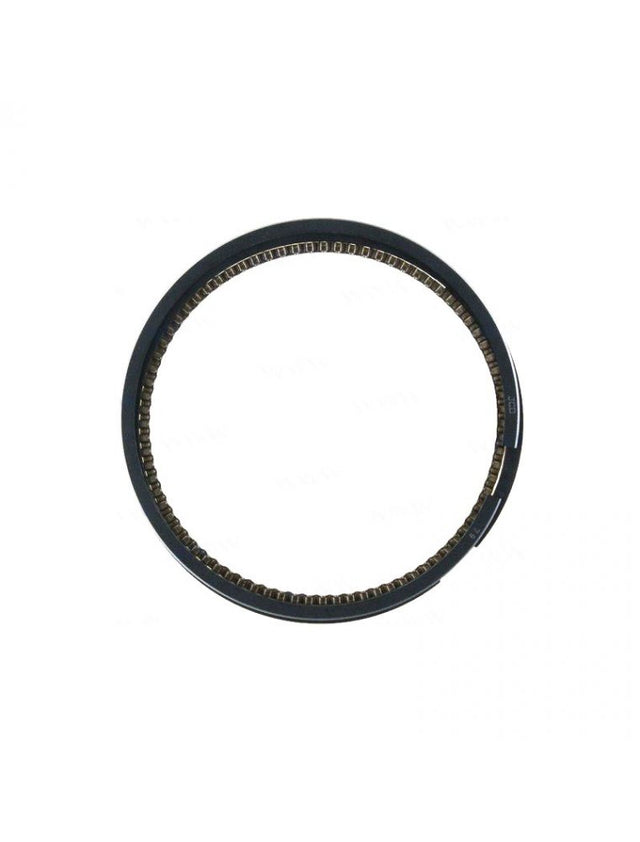

This aftermarket Piston Ring Set (STD) provides a reliable, direct-fit solution for Yamaha 75-115HP 4-Stroke outboards manufactured between 2004 and 2012. It is engineered to restore performance in F75, F80, F90, F100, and F115 series engines, ensuring proper compression and oil control.
This set serves as a direct interchange for Yamaha OEM part numbers 6D8-11603-10-00, 6D8-11603-11-00, 6D8-11603-01-00, 6D8-11603-00-00, 67F-11603-01-00, and 67F-11603-00-00.
- Standard size (STD) for straightforward installation in non-bored cylinders.
- Precision-machined for a 79mm cylinder bore diameter.
- Includes one complete ring set for servicing a single piston.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket parts.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 6D8-11603-11-00 | 6D8-11603-10-00 | |
| Yamaha | 6D8-11603-01-00 | 6D8-11603-10-00 | |
| Yamaha | 6D8-11603-00-00 | 6D8-11603-10-00 | |
| Yamaha | 67F-11603-01-00 | 6D8-11603-10-00 | |
| Yamaha | 67F-11603-00-00 | 6D8-11603-10-00 |
Engine & Model Compatibility
Confirm your engine model and year in the tables below. This part is designed for specific Yamaha outboard models.
Yamaha Outboard Models
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75TLR | 75 | 4-Stroke | 2004–2012 | 6D8-11603-10-00 | Also F75TLRD |
| Yamaha | F80TLR | 80 | 4-Stroke | 1999–2001 | 6D8-11603-10-00 | Also F80TLRX, F80TLRY, F80TLRZ |
| Yamaha | F90TJR | 90 | 4-Stroke | 2004–2012 | 6D8-11603-10-00 | Includes TJRD, TLR, TLRD, TXR, TXRD variants |
| Yamaha | F90JA | 90 | 4-Stroke | 2012 | 6D8-11603-10-00 | Also F90LA, F90XA |
| Yamaha | F100TLR | 100 | 4-Stroke | 1999–2002 | 6D8-11603-10-00 | Includes TLRX, TLRY, TLRZ, TLRA, TLRB variants |
| Yamaha | F100TXR | 100 | 4-Stroke | 1999–2002 | 6D8-11603-10-00 | Includes TXRX, TXRY, TXRZ, TXRA, TXRB variants |
| Yamaha | F115TLR | 115 | 4-Stroke | 2000–2012 | 6D8-11603-10-00 | Includes TJR, TJRC, TLRC, TXRC variants |
| Yamaha | F115JA | 115 | 4-Stroke | 2011–2012 | 6D8-11603-10-00 | Also F115LA, F115XA |
Yamaha International Model Codes
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F75BET/BETL | 75 | 4-Stroke | 2004–2012 | 6D8-11603-10-00 | Models 6D61-6D69 |
| Yamaha | F80AET/AETL | 80 | 4-Stroke | 1999–2005 | 6D8-11603-10-00 | Models 67G-67G5 |
| Yamaha | F80BET/BETL | 80 | 4-Stroke | 2005–2012 | 6D8-11603-10-00 | Models 6D71-6D79 |
| Yamaha | F90BET/BETL | 90 | 4-Stroke | 2004–2012 | 6D8-11603-10-00 | Models 6D81-6D89 |
| Yamaha | F100AET/AETL | 100 | 4-Stroke | 1999–2004 | 6D8-11603-10-00 | Models 67F-67F5 |
| Yamaha | F100DET/DETL | 100 | 4-Stroke | 2004–2012 | 6D8-11603-10-00 | Models 6D91-6D99 |
| Yamaha | F115AET/AETL | 115 | 4-Stroke | 2000–2012 | 6D8-11603-10-00 | Models 68V-68VA |
| Yamaha | FL115AET/AETX | 115 | 4-Stroke | 2000–2012 | 6D8-11603-10-00 | Models 68W-68WA (Counter-rotation) |
Technical Specs
- Product Type
- Piston Ring Set
- Installation
- Standard Size (STD)
- Ring Diameter
- 79mm
- Product Dimensions
- 8.0" L x 8.0" W x 0.4" H
What’s in the Box
- 1 x Piston Ring Set (STD) for one piston (Replaces 6D8-11603-10-00)
Installation Notes
- Disconnect the battery and fuel supply as a safety precaution.
- Drain engine oil and coolant before accessing internal components.
- Remove the cylinder head and other necessary parts to access the piston.
- Carefully extract the piston from the cylinder bore.
- Using a ring expander tool, remove the old piston rings.
- Thoroughly clean the piston ring grooves, removing all carbon buildup.
- Install the new rings onto the piston, ensuring they are in the correct order and orientation.
- Lubricate the piston, rings, and cylinder wall with fresh engine oil.
- Use a piston ring compressor to carefully guide the piston back into the cylinder.
- Reassemble all components in reverse order of removal, torquing bolts to manufacturer specifications.
- Refill engine oil and coolant. Reconnect the battery and test the engine.
Troubleshooting & FAQ
How do I know if these piston rings will fit my engine?
Verify your engine model and year against the compatibility tables on this page. It is crucial to match your complete engine model number (e.g., F75TLR) to ensure a proper fit. If you are unsure, please contact us with your engine details before purchasing.
What are the signs of a failing piston ring?
Common symptoms of worn or damaged piston rings include excessive oil consumption, blue or grey exhaust smoke, noticeable loss of engine power, and poor results from a cylinder compression test.
Is this a complete set for one piston?
Yes, this package contains one complete ring set required to service a single piston. If you are rebuilding multiple cylinders, you will need to purchase one set for each piston.
Does the 79mm diameter refer to the piston or the cylinder bore?
The 79mm dimension refers to the standard cylinder bore diameter for which these rings are designed. This ensures a tight seal for optimal compression.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility and batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free; expedited options will appear at checkout where available.
Warranty & returns?
This product is covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement part, not an OEM component.
- Professional installation is highly recommended for safety and optimal performance.
