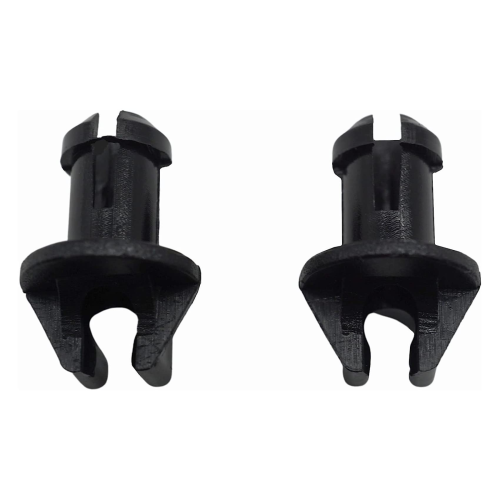

Throttle Lever Linkage Swivel Bushing – Fits Mercury/Mariner Outboard & MerCruiser (Replaces 23-932481, 8M0215006)

$14.50

Shipping calculated at checkout.

Throttle Lever Linkage Swivel Bushing – Fits Mercury/Mariner Outboard & MerCruiser (Replaces 23-932481, 8M0215006) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This replacement Throttle Lever Linkage Swivel Bushing is designed for a precise fit on a range of Mercury and Mariner outboards, primarily 70–200 HP 2-Stroke models manufactured between 1987 and 1991. It also fits select MerCruiser remote controls and Mercury Sport Jet drives, restoring smooth and reliable throttle operation.

This component directly interchanges with Mercury OEM part numbers 93248, 23-932481, and 8M0215006.

Installs via a simple press-fit into the throttle linkage arm.
Made from durable black plastic to withstand the marine environment.
Used in both remote control systems and engine-side throttle linkages.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Superseded By
Mercury	93248	23-932481
Mercury	23-932481	8M0215006
Mercury	8M0215006

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This bushing fits the following Mercury outboard models.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercury	ELO/ELPTO	70	2-Stroke	1987–1989	23-932481	Multiple model variants
Mercury	ELHPTO	70	2-Stroke	1988	23-932481
Mercury	ELO/ELPTO	75	2-Stroke	1990	23-932481
Mercury	ELO/ELPTO	80	2-Stroke	1987–1989	23-932481
Mercury	ELO	90	2-Stroke	1987–1988	23-932481
Mercury	ELPTO	90	2-Stroke	1987–1990	23-932481
Mercury	EL	90	2-Stroke	1990	23-932481
Mercury	L/XL/CXL	135	2-Stroke	1990–1991	23-932481
Mercury	L/XL/CXL	150	2-Stroke	1990–1991	23-932481
Mercury	ELPTO	150XR4	2-Stroke	1990–1991	23-932481
Mercury	L/XL	175	2-Stroke	1990–1991	23-932481
Mercury	L	175XRI	2-Stroke	1991	23-932481
Mercury	L/XL/CXL	200	2-Stroke	1991	23-932481
Mercury	ELPTO/EXLPTO	220XRI	2-Stroke	1987–1988	23-932481
Mercury	ELPTO	200XRI	2-Stroke	1989–1991	23-932481
Mercury	Sport Jet	Various	Jet Drive	Various	23-932481	Used in multiple Sport Jet models

This bushing fits the following Mariner outboard models.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Mariner	ELO/ELPTO	75	2-Stroke	1987–1989	23-932481
Mariner	ELHPTO	75	2-Stroke	1989	23-932481
Mariner	ELO/ELPTO	90	2-Stroke	1987–1989	23-932481
Mariner	L/XL	135	2-Stroke	1990–1991	23-932481
Mariner	L/XL/CXL	150	2-Stroke	1990–1991	23-932481
Mariner	ELPTO	150MG2	2-Stroke	1990-1991	23-932481
Mariner	L/XL	175	2-Stroke	1990–1991	23-932481
Mariner	L	175MG	2-Stroke	1991	23-932481
Mariner	L	175SKI	2-Stroke	1989–1990	23-932481
Mariner	L/XL/CXL	200	2-Stroke	1991	23-932481
Mariner	L/XL	220XRI	2-Stroke	1987–1988	23-932481

This bushing is also used in various MerCruiser applications.

Brand	Model	Years	OEM Part No.	Notes
MerCruiser	Remote Controls	Various	23-932481	Used in remote control systems

Technical Specs

Product Type: Throttle Lever Linkage Swivel Bushing
Installation: Press-fit into throttle linkage
Connection: Press-fit component
Housing Material: Plastic
Housing Color: Black
Fitting Type: Swivel bushing for throttle lever linkage
Other Technical Attributes: Used in remote controls and throttle linkage systems
Warranty: OEM warranty if purchased through authorized dealer

What’s in the Box

2 x Swivel Bushing (Replaces 23-932481 / 8M0215006)

Installation Notes

Ensure the engine is off and the shifter is in neutral. Disconnect the negative battery terminal.
Locate the throttle linkage connection point on the engine or remote control.
Carefully disconnect the linkage cable from the lever where the old bushing is located.
Pry out the old, worn bushing from the linkage arm. A small flat-head screwdriver or pick may be helpful. Take care not to damage the arm.
Clean the hole to remove any debris or residue.
Align the new swivel bushing and press it firmly and evenly into the hole until it is fully seated.
Reconnect the throttle cable to the newly installed bushing, ensuring it snaps securely into place.
Test the throttle lever for smooth, unrestricted movement before reconnecting the battery and starting the engine.

Troubleshooting & FAQ

How do I know if this bushing fits my specific engine serial number?

While the model and year ranges provided are extensive, the best way to guarantee fitment is to cross-reference the OEM part number (23-932481 or 8M0215006) with your engine's specific service manual or parts diagram. If your original part number matches, this component will fit.

What are the signs of a failing throttle bushing?

Common symptoms include a loose or "sloppy" feel in the throttle control lever, inconsistent throttle response, difficulty achieving full throttle, or visible cracking and disintegration of the original plastic bushing.

How often should this part be replaced?

There is no specific replacement interval. It is best to inspect throttle linkage bushings during regular maintenance. Replace them proactively if you notice any signs of wear, brittleness, or excessive play to prevent failure during operation.

Is any special tool required for installation?

No special tools are typically required. The bushing is designed for a press-fit. It can usually be pushed in by hand or gently tapped into place. A small pick or flat-head screwdriver can be useful for removing the old bushing.

What is the difference between OEM and aftermarket?

This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, it is batch-inspected for consistency and reliable performance.

What are the shipping speed and cost?

We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free for most orders; expedited options will appear at checkout if available for your location.

What is the warranty and return policy?

This part is covered by a 1-year warranty against manufacturing defects under normal use. If any issues arise, contact our support team with your order details. Returns are accepted within our standard window, provided the item is unused and in its original condition. Please see our policy page or reach out for instructions.

Safety & Important Info

Verify images and specifications against your original part before purchasing. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement component, not an original OEM part.
Professional installation is recommended for safety and optimal performance.
