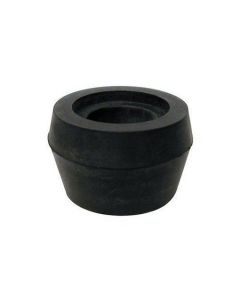

Trim Cylinder Pin Bushing – Fits MerCruiser Bravo Series Drives (23-807073)

$7.79 $12.00

Shipping calculated at checkout.

Trim Cylinder Pin Bushing – Fits MerCruiser Bravo Series Drives (23-807073) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This replacement Trim Cylinder Pin Bushing is designed for MerCruiser Bravo I, II, III, X, XR, and XZ stern drives that use power trim systems. It ensures smooth operation of the trim cylinder pins, which are critical for adjusting the drive angle.

This part directly interchanges with Sierra 18-4288 and A.A Power 23-44165.

Installation Method: Press-fit
Application: Used for power trim cylinder pins on Bravo drives.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
MerCruiser	23-807073
Sierra	18-4288
A.A Power	23-44165

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Designed for use with MerCruiser Bravo series stern drives.

Brand	Model	OEM Part No.
MerCruiser	Bravo I	23-807073
MerCruiser	Bravo II	23-807073
MerCruiser	Bravo III	23-807073
MerCruiser	Bravo X	23-807073
MerCruiser	Bravo XR	23-807073
MerCruiser	Bravo XZ	23-807073

Technical Specs

Product Type: Trim Cylinder Pin Bushing
Installation: Press-fit
Housing Color: Black
Dimensions (H x W x L): 2.3 x 10.0 x 12.0
Weight: 0.28 g (0.01 oz)
Fitting Type: Cylindrical bushing
Other Technical Attributes: Used for power trim cylinder pins on Bravo drives

What’s in the Box

1 x Trim Cylinder Pin Bushing (23-807073)

Installation Notes

Ensure the engine is off and the stern drive is in a safe, accessible position. Using a trim support is recommended.
Remove the existing trim cylinder pin that secures the cylinder to the gimbal housing.
Carefully press or knock out the old, worn bushing from the trim cylinder eye.
Clean the bushing housing to remove any debris or corrosion.
Align the new bushing and use a suitable press or socket to gently press it into place until it is fully seated.
Re-install the trim cylinder pin and secure any retainers.
Test the power trim system to ensure smooth and correct operation.

Troubleshooting & FAQ

What is this bushing's function on a MerCruiser Bravo drive?

This bushing is installed in the eye of the power trim cylinders. It provides a smooth, low-friction pivot point for the pin that connects the trim cylinder to the transom assembly, allowing the stern drive to be tilted up and down.

How can I tell if my trim cylinder bushings need to be replaced?

Signs of worn bushings include excessive play or "slop" in the trim system, jerky or uneven trim movement, and audible clunking or grinding noises when trimming the drive up or down. A visual inspection may also reveal a visibly elongated or deteriorated bushing.

How many bushings are required for a complete service?

While this part is sold individually, a complete service of a Bravo drive's two trim cylinders typically requires four bushings in total (two per cylinder: one upper and one lower). Please verify the quantity needed for your specific repair.

Is this a direct replacement for OEM part 23-807073?

Yes, this is a direct aftermarket replacement for MerCruiser part number 23-807073 and also cross-references to Sierra 18-4288 and A.A Power 23-44165.

Is any special tool needed for installation?

Installation is a "press-fit." While a dedicated bushing press is ideal for safe and even installation, a proper-sized socket and a vice or clamp can often be used to carefully press the new bushing into place.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
