U-Joint Bellows – Fits MerCruiser Bravo & Blackhawk Drives (Rep...
Product Details

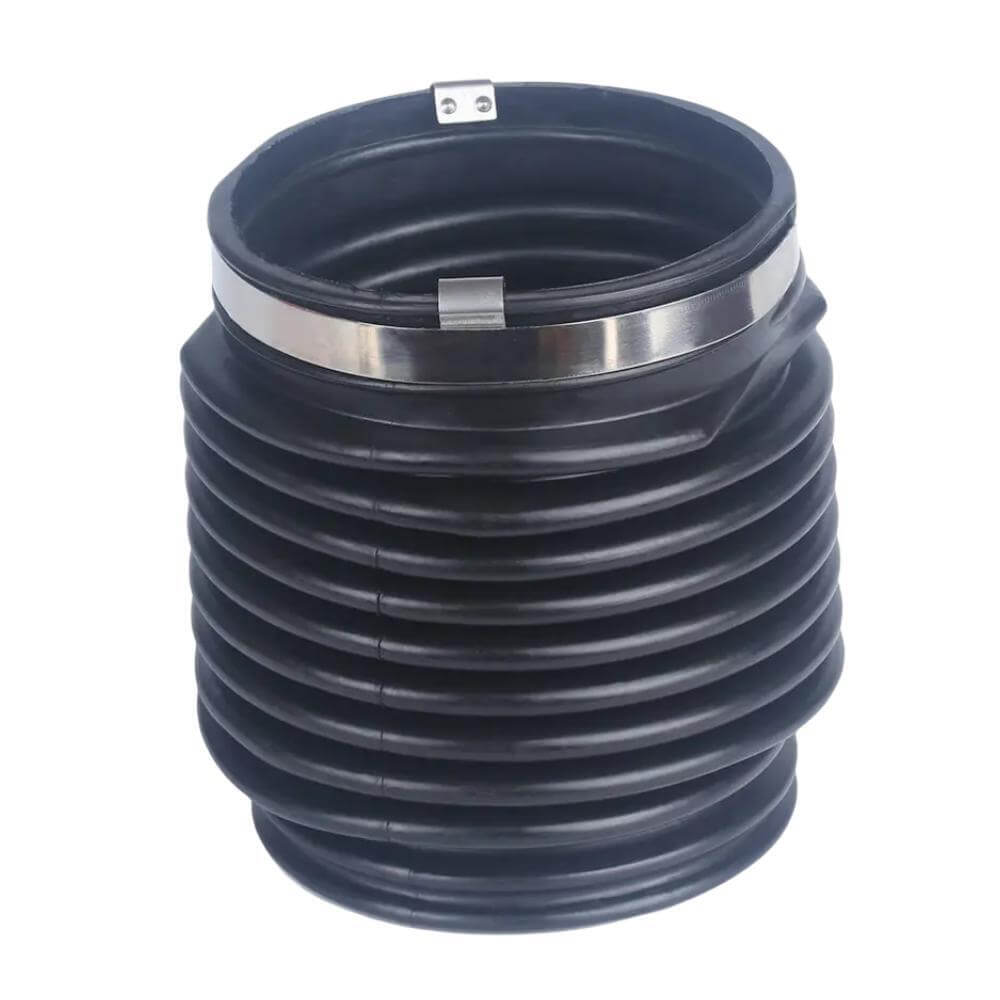

This aftermarket MerCruiser Bravo U-Joint Bellows is designed to protect the U-joint and driveshaft assembly on MerCruiser Bravo and Blackhawk sterndrives. It fits Bravo I, Bravo II, Bravo III, and Blackhawk models from 1988 and newer, creating a crucial seal as the drive shaft passes through the transom.
It serves as a direct cross-reference for multiple OEM and aftermarket part numbers, including Sierra 18-2756, GLM 89140, Mallory Marine 9-72702, and Mercury 86840A05 / 8M0062406.
- Designed for direct, hassle-free installation.
- Constructed from durable neoprene rubber to resist oil, saltwater, and abrasion.
- Includes the necessary stainless steel hose clamps for a secure fit.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 86840A05 |
| Mercury | 8M0062406 |
| Sierra | 18-2756 |
| GLM | 89140 |
| Mallory Marine | 9-72702 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is designed exclusively for the MerCruiser sterndrive models listed below.
| Brand | Model | Years | OEM Part No. | Notes |
|---|---|---|---|---|
| MerCruiser | Bravo I | 1988–Present | 86840A05/8M0062406 | |
| MerCruiser | Bravo II | 1988–Present | 86840A05/8M0062406 | |
| MerCruiser | Bravo III | 1988–Present | 86840A05/8M0062406 | |
| MerCruiser | Blackhawk | 1988–Present | 86840A05/8M0062406 |
Technical Specs
- Product Type
- U-Joint Bellows
- Material
- Neoprene rubber
- Color
- Black
- Design
- Ridge design for improved sealing
- Application
- Seals drive shaft as it passes through the transom
- Box Dimensions
- 15cm x 15.5cm x 16cm
- Warranty
- Manufacturer warranty
What’s in the Box
- 1 x U-Joint Bellows (Replaces 86840A05/8M0062406)
- 1 x Stainless Steel Hose Clamp
Installation Notes
- Disconnect the vessel's battery for safety.
- Tilt the sterndrive to the full "up" or "trailer" position to access the bellows.
- Carefully remove the old hose clamps and cut away the old, damaged bellows.
- Thoroughly clean the mounting surfaces on the bell housing and transom assembly.
- Fit the new U-joint bellows into position, ensuring it is seated correctly on both ends.
- Secure the new bellows with the provided stainless steel hose clamps. Tighten firmly but do not overtighten.
- Lower the sterndrive and inspect the new installation for proper alignment and sealing.
- Reconnect the battery and test the sterndrive's function in the water, checking for any leaks.
Troubleshooting & FAQ
How do I know if my U-joint bellows needs replacing?
Inspect the bellows regularly for cracks, splits, or brittleness. Any sign of water inside the bellows or grease leaking out indicates an immediate need for replacement to prevent catastrophic U-joint failure.
What happens if a U-joint bellows fails?
A failed bellows will allow water to enter the sterndrive, quickly destroying the U-joints and gimbal bearing. This can lead to a complete loss of propulsion and costly repairs.
What is the recommended replacement interval?
As a preventative maintenance item, it's wise to inspect your bellows annually and replace it every 3–5 years, or immediately if any damage is found, regardless of age.
Is this bellows compatible with all Bravo drives?
It's designed for a wide range of MerCruiser Bravo and Blackhawk drives, typically from 1988 onward. Due to manufacturing variations, always double-check that your drive model and year fall within this range and visually compare the old part to our photos.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
