Water Pump Impeller Kit – Fits Mercury Marine & MerCruiser 65-225HP (Replaces 46-96148A8, 46-96148Q8)

$28.00

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Mercury Marine & MerCruiser 65-225HP (Replaces 46-96148A8, 46-96148Q8) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This aftermarket Water Pump Impeller Kit – Fits Mercury Marine & MerCruiser 65-225HP (Replaces 46-96148A8, 46-96148Q8) is a complete assembly for servicing the cooling systems on Mercury Marine 65–225HP 2-Stroke outboards (1970–1990) and MerCruiser Alpha One, I, R, and MR sterndrives (S/N 2495186–0D469858).

It serves as a direct replacement, providing interchange for Mercury parts 46-96148A8, 46-96148Q8, 46-96148T8, and aftermarket equivalents like Sierra 18-3517 and GLM 12280.

Direct replacement installation with no modifications required.
Kit includes a durable Nylon PA66 housing and a neoprene rubber impeller.
Features a short-vane impeller design as required for the specified models.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Mercury	46-96148A8
Mercury	46-96148Q8
Mercury	46-96148T8
Quicksilver	96148A8
Sierra	18-3517
GLM	12280

Engine & Model Compatibility

Confirm your engine model and serial number in the tables below.

For Mercury outboards, verify that your engine's serial number falls within the specified range for your model.

Brand	Model	Rated HP	Stroke	Serial #	OEM Part No.	Notes
Mercury	4-cylinder	65	2-Stroke	1542745-3293183	46-96148A8
Mercury	4-cylinder	70	2-Stroke	1503959-1566239	46-96148A8
Mercury	4-cylinder	75	2-Stroke	6432901 & Up	46-96148A8
Mercury	4-cylinder	80	2-Stroke	2559001-6432900	46-96148A8
Mercury	4-cylinder	85	2-Stroke	1566240-4861998	46-96148A8
Mercury	4-cylinder	90	2-Stroke	1766824 & Up	46-96148A8
Mercury	SS	100	2-Stroke	1503332-2836018	46-96148A8
Mercury	6-cylinder	110	2-Stroke	1870204-2314955	46-96148A8
Mercury	6-cylinder	115	2-Stroke	2836019 & Up	46-96148A8
Mercury	6-cylinder	125	2-Stroke	2314956-2839368	46-96148A8
Mercury	6-cylinder	135	2-Stroke	2839369-3293233	46-96148A8
Mercury	6-cylinder	140	2-Stroke	3293234 & Up	46-96148A8
Mercury	6-cylinder	150	2-Stroke	3502806 & Up	46-96148A8
Mercury	6-cylinder	175	2-Stroke	4301235 & Up	46-96148A8
Mercury	6-cylinder	200	2-Stroke	4839034 & Up	46-96148A8	Not including V-200 DFI 3.0L
Mercury	6-cylinder	220	2-Stroke	OB117316 & Up	46-96148A8

For MerCruiser sterndrives, this kit fits Pre-Alpha, Alpha One, I, R, and MR models within the specified serial number range.

Brand	Model	Years	OEM Part No.	Notes
MerCruiser	Pre-Alpha	1970–1983	46-96148A8
MerCruiser	Alpha One	1983–1990	46-96148A8	Fits S/N 2495186–0D469858
MerCruiser	I/R/MR	1983–1990	46-96148A8	Fits S/N 2495186–0D469858

Technical Specs

Product Type: Water Pump Impeller Kit
Installation: Direct replacement
Housing Material: Nylon PA66 Plastic Water Pump Housing
Impeller Material: Neoprene Rubber
Housing Color: Black
Other Technical Attributes: Short-vane impeller design
Dimensions: 150mm × 104mm × 81mm (5.91" × 4.09" × 3.19")
Weight: 330g (11.6oz)
Country of Origin: Taiwan
Warranty: 1 Year

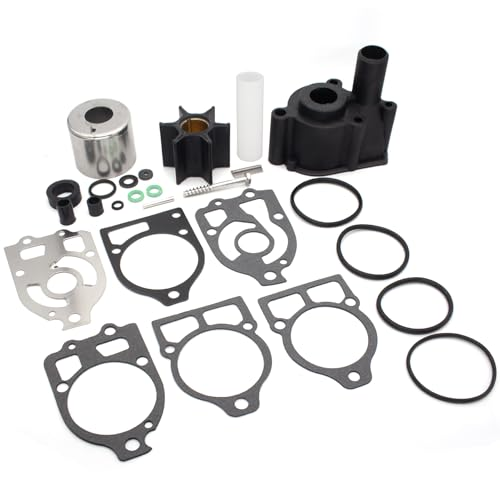

What’s in the Box

1 x Water Pump Housing (Replaces 46-48743A1, 46-96148, 46-96148A1)
1 x Impeller (Replaces 47-30221, 47-65960, 47-85460)
1 x Cup
1 x Impeller Plate (Replaces 30605)
1 x Water Tube Guide (Replaces 23-29804, 23-29804T)
1 x Seal Ring Gasket (Replaces 26-45577, 26-455771)
2 x Water Pump Housing Bushing (Replaces 26-29677)
1 x Slinger Rubber Ring (Replaces 25-30271)
5 x O-Ring (Replaces 25-30271, 25-896523, 25-27018)
5 x Water Pump Gasket (Replaces 27-32438, 27-30603, 27-30604)
2 x Drain Screw Gasket (Replaces 191833)

Installation Notes

Disconnect the battery and remove the engine cover.
Shift the engine into forward gear to simplify driveshaft re-engagement.
Remove the bolts securing the lower unit (gearcase) to the engine leg and carefully lower it.
Unbolt and remove the old water pump housing assembly from the driveshaft. Note the orientation of all parts.
Thoroughly clean the mating surfaces on the gearcase and driveshaft.
Assemble the new kit, starting with the base gaskets and impeller wear plate.
Slide the new impeller onto the driveshaft, rotating the shaft clockwise to bend the vanes correctly.
Install the new housing, seals, and remaining components from the kit.
Torque the housing bolts to the manufacturer's specified value.
Apply marine grease to the driveshaft splines and carefully reinstall the lower unit, ensuring the water tube and shift shaft align.
Once secured, reconnect the battery and test the engine in water, confirming a steady tell-tale stream.

Troubleshooting & FAQ

How do I confirm this fits my MerCruiser Alpha One?

This kit is specifically for Alpha One sterndrives with serial numbers from 2495186 to 0D469858. Models outside this range, including Alpha One Gen II drives, require a different kit.

What are the symptoms of a failing impeller?

Common signs include the engine temperature rising above normal at idle or low speeds, a weak or non-existent water stream from the "tell-tale" outlet, and in severe cases, a steam cloud from the exhaust.

How often should this water pump kit be replaced?

For preventative maintenance, it is recommended to replace the impeller and associated components every 1–2 years or every 100–200 hours of operation, whichever comes first. This is especially critical for boats used in saltwater.

What is a "short-vane" impeller and why is it important?

This kit uses a short-vane impeller, which was the original design for the specified 1970–1990 Mercury engines. Using an incorrect (e.g., long-vane) impeller can result in improper housing fit, reduced water pressure, and engine overheating.

My engine overheated. Is replacing the impeller kit enough?

If your engine has severely overheated, the impeller may have disintegrated. Replacing the kit is the first step, but you must also inspect and clear the engine's cooling passages of any old impeller fragments to prevent blockages.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
