Water Pump Impeller Kit – Fits Mercury/Mariner 40-300 HP & Alpha One Gen II (Replaces 47-43026Q06, 8M0100526)

$79.00

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Mercury/Mariner 40-300 HP & Alpha One Gen II (Replaces 47-43026Q06, 8M0100526) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This aftermarket Water Pump Impeller Kit provides a reliable solution for servicing Mercury/Mariner 40-300 HP 2-stroke and 4-stroke outboards, MerCruiser Alpha One Gen II sterndrives (serial number D494569 and above), and select 1996–1998 Honda BF70/BF90 outboards.

It serves as a direct interchange for multiple part numbers, including Mercury 47-43026Q06, 47-43026T11, 8M0100526, Honda 19021-ZW1-003, Sierra 18-3214, 18-3265, and GLM 12043, 12080.

Installs directly, matching OEM form and function.
Impeller elastomers provide improved flexibility across a broad temperature range for consistent performance.
Kit includes impeller, face plate, gaskets, seals, and other essential hardware for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Mercury	47-43026Q06
Mercury	47-43026T11
Mercury	8M0100526
Honda	19021-ZW1-003
Sierra	18-3214
Sierra	18-3265
GLM	12043
GLM	12080

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Mercury/Mariner Owners: Fits a wide variety of 2-stroke and 4-stroke outboards from 40 HP to 300 HP, including Bigfoot, Optimax, and Verado models.

For MerCruiser Owners: Compatible with Alpha One Generation II sterndrives with serial number D494569 and higher.

For Honda Owners: Fits specific BF70, BF90, BF75AT, and BF90AT models from the mid-to-late 1990s.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercury/Mariner	40/45/50/60 HP	40-60	4-Stroke		47-43026Q06	BIGFOOT
Mercury/Mariner	60 HP	60	2-Stroke	1991–1995	47-43026Q06	3-cylinder Bigfoot
Mercury/Mariner	65/80 JET	65-80	2-Stroke	1994–1998	47-43026Q06
Mercury/Mariner	70 HP	70	2-Stroke	1987	47-43026Q06	3-cylinder
Mercury/Mariner	75 HP	75	2-Stroke	1990–1998	47-43026Q06	3-cylinder
Mercury/Mariner	75/115 HP	75-115	2-Stroke		47-43026Q06	Optimax
Mercury/Mariner	75-275 HP	75-275	4-Stroke		47-43026Q06
Mercury/Mariner	80/90 HP	80-90	2-Stroke	1987	47-43026Q06	3-cylinder
Mercury/Mariner	90 HP	90	2-Stroke	1995–1997	47-43026Q06
Mercury/Mariner	100 HP	100	2-Stroke	1988–1998	47-43026Q06	4-cylinder
Mercury/Mariner	115 HP	115	2-Stroke	1989–1998	47-43026Q06	4-cylinder
Mercury/Mariner	120 HP	120	2-Stroke	1995–1997	47-43026Q06
Mercury/Mariner	125 HP	125	2-Stroke	1994–1995	47-43026Q06	4-cylinder
Mercury/Mariner	V200DFI 3.0L	200	2-Stroke	1997–1998	47-43026Q06
Mercury/Mariner	V225 DFI/CARB/EFI 3.0L	225	2-Stroke		47-43026Q06
Mercury/Mariner	V250 EFI 3.0L	250	2-Stroke	1995–1998	47-43026Q06
Mercury/Mariner	135-300 HP	135-300	4-Stroke		47-43026Q06	Verado
MerCruiser	Alpha One Gen II	N/A	N/A		47-43026Q06	Serial Number D494569 & Above
Honda	BF70	70	4-Stroke	1996–1998	19021-ZW1-003
Honda	BF90	90	4-Stroke	1996–1998	19021-ZW1-003
Honda	BF75AT	75	4-Stroke		19021-ZW1-003
Honda	BF90AT	90	4-Stroke		19021-ZW1-003

Technical Specs

Product Type: Water Pump Impeller Service Kit
Installation: Direct replacement
Housing Material: Metal alloy and neoprene rubber
Housing Color: Black
Other Technical Attributes: Impeller elastomers provide improved flexibility across broad temperature ranges
Warranty: 30-day replacement (JLM Marine)

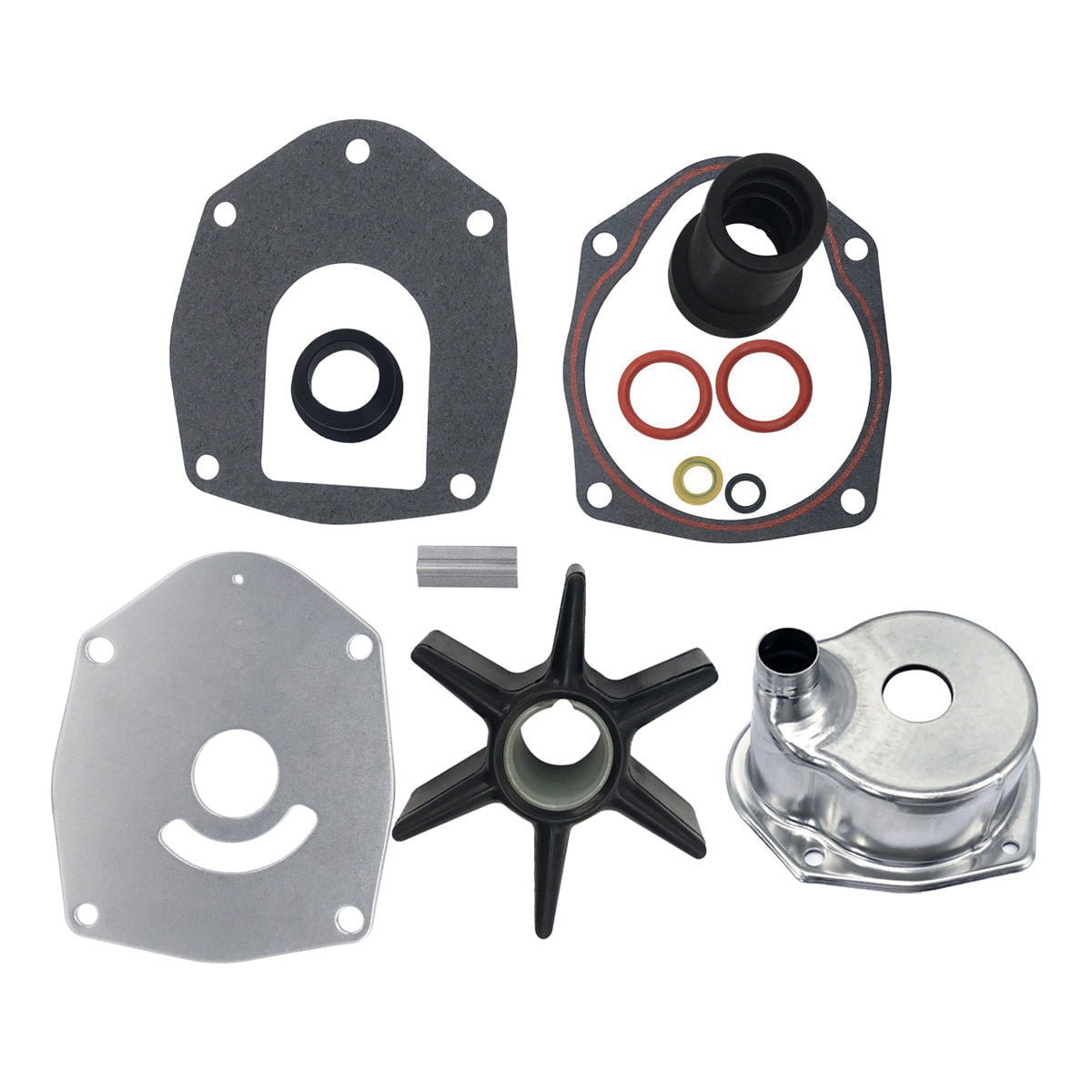

What’s in the Box

1 x Water Pump Impeller (47-43026Q06)
1 x Face Plate (26-816575A2)
1 x Impeller Key
2 x Impeller Gasket (27-817277)
1 x Impeller Gasket (27-430331)
1 x Seal Ring Gasket (26-45577)
2 x O-Ring (25-21836)
1 x Face Seal
1 x Cover
1 x Washer

Installation Notes

Disconnect the battery and ensure the engine is off and cool.
Remove the lower unit (gearcase) afrom the outboard or sterndrive.
Unbolt and remove the existing water pump housing.
Take note of the old impeller's blade orientation before removing it and the key.
Clean all mounting surfaces, removing old gasket material and debris.
Install the new gaskets, seals, and key from the kit.
Slide the new impeller into the housing while turning the driveshaft clockwise to seat the blades correctly.
Install the new face plate and reassemble the pump housing, torquing bolts to manufacturer specifications.
Reinstall the lower unit, ensuring the water tube and shift shaft align correctly.
Reconnect the battery and test the engine with a water supply, checking for proper water outflow.

Troubleshooting & FAQ

How do I know if this impeller kit fits my engine?

Always check the compatibility tables on this page against your engine's model, horsepower, and year. For MerCruiser Alpha One Gen II, your serial number must be D494569 or later. When in doubt, compare the part numbers listed in the 'Part Number Matrix' to your service manual.

What are the signs of a failing water pump impeller?

Common symptoms include a weak or non-existent water stream from the engine's tell-tale port, engine overheating alarms, and a decrease in overall engine performance. A dry, cracked, or deformed impeller upon inspection also indicates it needs replacement.

How often should I replace my water pump impeller?

As a general maintenance guideline, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation, whichever comes first. Usage in saltwater or sandy/silty conditions may require more frequent replacement.

Do I need any special tools for installation?

Basic hand tools like a socket set, wrenches, and a screwdriver are required. A torque wrench is highly recommended to tighten bolts to the correct specifications. A gasket scraper can help remove old material, and applying a small amount of marine grease to the new impeller can ease installation.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
