Water Pump Impeller Kit – Fits Mercury/Mariner, Honda, MerCruiser A...
Product Details
This Water Pump Impeller Kit provides all the necessary components to service the lower unit water pump on a wide range of outboard and stern drive models. It is designed for Mercury/Mariner outboards (40–250 HP, 1991–2023), MerCruiser Alpha One Generation 2 stern drives (1991–2023), and select Honda outboards (70–90 HP, 1996–1998). Regular impeller replacement is crucial for preventing engine overheating and ensuring reliable performance.
This kit serves as a direct replacement for multiple OEM and aftermarket part numbers, including Mercury 47-43026Q06 / 47-8M0100526, Sierra 18-3214, GLM 12042, and Honda 19021-ZW1-003.
- Engineered as a direct-fit replacement for easy installation.
- Features a durable neoprene rubber impeller for optimal cooling performance.
- Includes all essential gaskets, seals, and hardware for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 47-43026Q06 |
| Mercury | 47-8M0100526 |
| Sierra | 18-3214 |
| GLM | 12042 / 12043 |
| Mallory | 9-48313 |
| Honda | 19021-ZW1-003 |
| Honda | 06192-ZW1-305 |
| NorthBoat | 43026Q06 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Mercury/Mariner models, pay close attention to serial numbers and specific model designations like "Bigfoot" or "Verado" to ensure an exact match.
For MerCruiser applications, this kit fits Alpha One Gen 2 drives with serial numbers 0D469859 and above.
For Honda outboards, this kit is compatible with specific 75 HP and 90 HP models from 1996 to 1998.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | F40-F60 | 40-60 | 4-Stroke | 1999–2023 | 47-43026Q06 | Bigfoot/Command Thrust models |
| Mercury | 60 Bigfoot | 60 | 2-Stroke | 1994–2023 | 47-43026Q06 | Serial number 0D000750 and above |
| Mercury | 70-90 | 70-90 | 2-Stroke | 1994–2023 | 47-43026Q06 | Serial number 0A996142 and above |
| Mercury | 75-115 | 75-115 | 4-Stroke | 1994–2023 | 47-43026Q06 | All models |
| Mercury | 100-125 | 100-125 | 2-Stroke | 1995–2023 | 47-43026Q06 | 4-cylinder models with pump cover screws without insulators |
| Mercury | 135-175 EFI Verado | 135-175 | 4-Stroke | 2004–2023 | 47-43026Q06 | 4-cylinder models |
| Mercury | 200 | 200 | 2 & 4-Stroke | 1995–2023 | 47-43026Q06 | Verado 4-cyl and 6-cyl models included |
| Mercury | V-200/225/250 | 200-250 | 2-Stroke | 1995–2023 | 47-43026Q06 | 3.0L models |
| Mercury | 225 | 225 | 4-Stroke | 2001–2023 | 47-43026Q06 | DTS/Verado 6-cylinder models |
| Mercury | 250-300 | 250-300 | 4-Stroke | 2001–2023 | 47-43026Q06 | Verado 6-cylinder models |
| Mercury | 350 | 350 | 4-Stroke | 2015–2023 | 47-43026Q06 | Verado models with 4.80 dia. torpedo gearcases |
| MerCruiser | Alpha One Gen 2 | N/A | N/A | 1991–2023 | 47-43026Q06 | Serial number 0D469859 and up |
| Honda | BF75AW, BF75AT | 75 | 4-Stroke | 1996–1998 | 19021-ZW1-003 | |
| Honda | BF90AW, BF90AT | 90 | 4-Stroke | 1996–1998 | 19021-ZW1-003/06192-ZW1-305 |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Direct replacement
- Impeller Diameter
- 88 mm (3.46")
- Impeller Height
- 31.31 mm (1.23")
- Shaft Size
- 22.25 mm (0.88")
- Number of Blades
- 6
- Impeller Material
- Neoprene rubber
- Warranty
- 1 year (typical for aftermarket); varies by brand

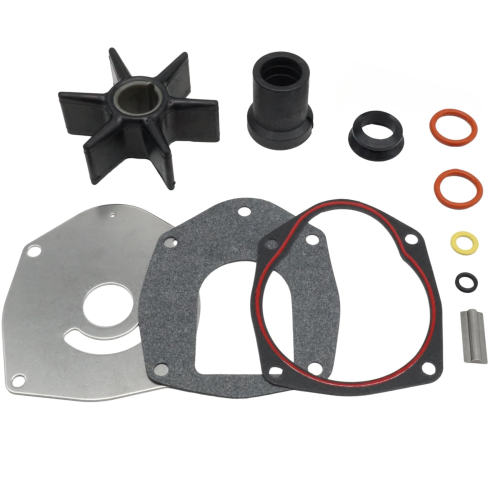

What’s in the Box
- 1 x Water Pump Impeller (47-43026T2)
- 1 x Impeller Plate (817276)
- 1 x Impeller Key (28-43037)
- 1 x Impeller Gasket (27-817277)
- 1 x Impeller Gasket (27-430331)
- 1 x Face Seal (26-816575A2)
- 1 x Coupling Assembly (816597A1) - For Alpha One Gen 2 applications
- 4 x O-Ring (25-21836)
Installation Notes
- Disconnect the battery and ensure the engine is off and in neutral.
- Drain the gearcase by removing the drain/fill plugs.
- Unbolt and carefully lower the gearcase from the engine midsection.
- Remove the water pump housing cover to access the old impeller.
- Take note of the old impeller's blade orientation before removing it. Remove the old key, gaskets, and plate.
- Clean all mating surfaces thoroughly, removing any old gasket material or debris.
- Install the new gaskets, plate, key, and impeller. Lubricate the new impeller with a marine-safe lubricant.
- Reinstall the water pump housing and torque bolts to manufacturer specifications.
- Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are correctly aligned.
- Refill the gearcase with the correct type and amount of gear lube.
- Reconnect the battery. Start the engine using a water supply (flushing muffs) and verify water is exiting the tell-tale port.
Troubleshooting & FAQ
How can I be sure this kit fits my engine?
The best way to ensure fitment is to match your engine's model, year, and serial number against our compatibility table. If available, cross-reference the part number stamped on your old impeller or housing with the numbers in our Part Number Matrix.
What are the signs of a failing water pump impeller?
Common signs include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alerts or alarms, and a dry, cracked, or brittle appearance of the old impeller upon inspection.
How often should the impeller be replaced?
For most recreational boats, it's recommended to inspect the impeller annually and replace it every 1-2 years, or every 100-200 hours of use, whichever comes first. Usage in saltwater or sandy/murky water may require more frequent changes.
Why does this kit include a coupling assembly?
The included Coupling Assembly (816597A1) is specifically required for servicing the water pump on MerCruiser Alpha One Gen 2 stern drives. It is not used for outboard applications.
My old impeller was broken. What should I do?
If the old impeller has missing pieces or blades, it is critical to find and remove all fragments from the engine's cooling passages. Back-flushing the system may help dislodge them. Failure to remove debris can lead to serious blockages and engine damage.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
