Water Pump Impeller Repair Kit – Fits Mercury/Mariner 40-250 HP &am...
Product Details
This Water Pump Impeller Repair Kit is engineered for a broad range of Mercury and Mariner outboards (40–250 HP, 2-Stroke & 4-Stroke models from the 1990s to present) and MerCruiser Alpha One Generation II stern drives with serial numbers 0D469859 and above.
It serves as a direct interchange for Mercury/Quicksilver part numbers 8M0100526 and 47-43026Q06, along with Sierra reference 18-3265 and other superseded numbers.
- Complete 15-piece kit designed for a full water pump service.
- Engineered for durability to restore higher flow rates and proper cooling.
- Designed as a direct replacement for a straightforward installation.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury / Quicksilver | 8M0100526 |
| Mercury / Quicksilver | 47-43026Q06 |
| Mercury | 47-43026T11 |
| Mercury | 47-43026T10 |
| Mercury | 47-43026Q5 |
| Mercury | 47-43026T6 |
| Mercury | 47-43026T7 |
| Mercury | 47-43026T8 |
| Sierra | 18-3265 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Mercury/Mariner Outboards: Compatibility may vary by serial number and specific model configuration. Please verify your engine details against the table.
For MerCruiser Stern Drives: This kit fits Alpha One Generation II models with serial numbers 0D469859 and later.
| Brand | Model | Rated HP | Stroke | Years / S/N | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury / Mariner | Bigfoot | 60 | 2-Stroke | S/N 0D000750+ | 8M0100526 | 3 cylinder |
| Mercury / Mariner | Standard | 70-90 | 2-Stroke | S/N 0A996142+ | 8M0100526 | 3 cylinder |
| Mercury / Mariner | Verado | 135-175 | 4-Stroke | S/N 1B227000+ | 8M0100526 | 4-cylinder |
| Mercury / Mariner | Verado | 200-225 | 4-Stroke | S/N OT980000+ | 8M0100526 | 6-cylinder |
| Mercury / Mariner | Verado | 250-275 | 4-Stroke | S/N OT801000+ | 8M0100526 | 6-cylinder |
| MerCruiser | Alpha One Gen II | Various | Various | S/N 0D469859+ | 8M0100526 |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct Replacement
- Housing Material
- Various (Metal + Rubber Components)
- Dimensions
- Varies by component
- Weight
- 255 g (9 oz)
- Key Features
- Complete 15-piece water pump repair kit; designed for durability to provide higher flow rates and cooling flow

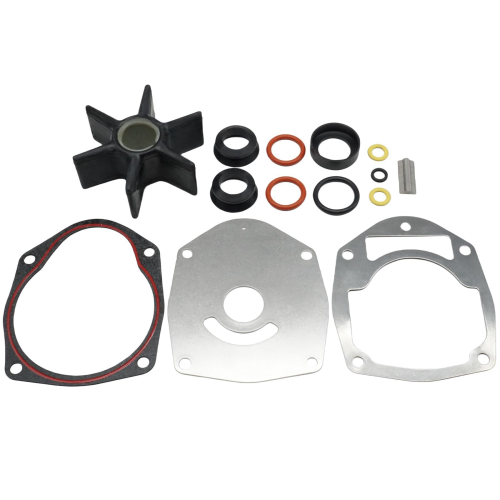

What’s in the Box
- 1 x Water Pump Impeller (8M0025709)
- 1 x Impeller Drive Key (8M0032833)
- 1 x Water Pump Faceplate (8172761)
- 1 x Faceplate Gasket (8M0050720)
- 1 x Water Pump Gasket (8172771)
- 1 x Face Seal (8M2014338)
- 1 x Quad Ring (455771)
- 1 x O-ring (0.921 in. x 0.139 in.) (90196)
- 2 x O-ring (0.796 in. x 0.139 in.) (21836)
- 2 x Drain Plug Seal (830749)
- 1 x Face Seal Setting Tool (818769)
Installation Notes
- Disconnect the negative battery cable for safety.
- Remove the lower unit (gearcase) from the outboard or stern drive.
- Unscrew the bolts holding the water pump housing and remove the housing.
- Take out the old impeller, wear plate, gaskets, and seals. Note their orientation.
- Thoroughly clean all debris and corrosion from the housing and base surfaces.
- Install the new lower gasket, wear plate, and faceplate seal.
- Slide the new impeller onto the driveshaft while turning the shaft clockwise to bend the vanes correctly.
- Install the impeller key if not already in place.
- Reinstall the water pump housing and tighten bolts to the manufacturer's specified torque.
- Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are properly aligned.
- Reconnect the battery.
- Run the engine on a water supply (flusher or in water) and confirm a steady stream from the tell-tale outlet.
Troubleshooting & FAQ
How do I know if this kit fits my engine?
This kit fits many Mercury/Mariner outboards (40-250 HP) and MerCruiser Alpha One Gen II drives. The most reliable method is to check your engine's serial number against the ranges listed in our Engine & Model Compatibility table.
What are the signs of a failing water pump impeller?
Common signs include the engine overheating at idle or low speeds, a weak or non-existent water stream from the "tell-tale" outlet, and a dry, cracked, or brittle appearance of the old impeller upon inspection.
How often should the water pump impeller be replaced?
For preventative maintenance, it is recommended to inspect and/or replace the impeller every 100-200 operating hours or at least once every one to two years, especially for boats used in saltwater.
Is the Face Seal Setting Tool necessary for installation?
Yes, the included Face Seal Setting Tool (818769) is critical for properly installing the face seal without damaging it, ensuring a leak-proof pump assembly.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
