Product Details

This complete Water Pump Kit with Housing is engineered for a wide range of Johnson/Evinrude 75-300 HP V4, V6, and V8 engines manufactured between 1991 and 2010. It serves as a direct-fit replacement to restore your engine's cooling system performance and prevent overheating.

It directly replaces Evinrude/Johnson part numbers 5001595, 0435929, and 0777802, and provides an interchange for Sierra 18-3315-2, GLM 12000, and other aftermarket equivalents.

Installs directly in the factory location with no modifications required.
The complete kit includes the housing, impeller, wear plate, gaskets, and all necessary hardware.
Specifically designed for engines that utilize an impeller drive key with a flat spot.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.

Brand	Part Number
Evinrude/Johnson	5001595, 0435929, 0777802
Sierra Marine	18-3315-2
GLM Marine	12000
Mercury Marine	8M6012793, 8M6012794
EMP	46-07300
Mallory Marine	9-48200
SEI Marine	96-306-01K

Engine & Model Compatibility

Confirm your engine model and year in the table below to ensure a correct fit.

This kit is designed for the Johnson/Evinrude V4, V6, and V8 engine families listed here.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Johnson/Evinrude	V4	90, 115	2-Stroke	1995–Up	5001595	SL & DI models
Johnson/Evinrude	V4	105	2-Stroke	1998–2001	5001595	Commercial models
Johnson/Evinrude	V4	120, 125	2-Stroke	1993–1994	5001595	ESX models
Johnson/Evinrude	V6	120, 130	2-Stroke	1993–Up	5001595
Johnson/Evinrude	V6	135	2-Stroke	2001	5001595	25" shaft
Johnson/Evinrude	V6	140	2-Stroke	1993–2000	5001595	25" shaft, F suffix models (1993), standard 25" (1994–2000)
Johnson/Evinrude	V6	150, 175	2-Stroke	1993–Up	5001595	SL, EL, DI models, 20" & 25"
Johnson/Evinrude	V6/V8	200	2-Stroke	1993–Up	5001595	25" & 30" shaft
Johnson/Evinrude	V6/V8	225, 250	2-Stroke	1993–Up	5001595	25" & 30" shaft
Johnson/Evinrude	OMC Quiet Rider	Multiple	2-Stroke	1991–2010	5001595	Sea drive models, 25" & 30" shaft, relieved gearcase

Technical Specs

Product Type: Water Pump Repair Kit with Housing
Installation: Direct replacement
Connection: Direct mount to gearcase
Housing Material: Aluminum
Housing Color: Natural aluminum
Product Dimensions: 12.0 × 11.5 × 15.5 in
Weight: 24.3 oz (689 g)
Fitting Type: Direct mount
Thread Size: Multiple fasteners (see package contents)
Operating Temperature: Marine water temperature range
Other Technical Attributes: For engines with flat spot for impeller drive key

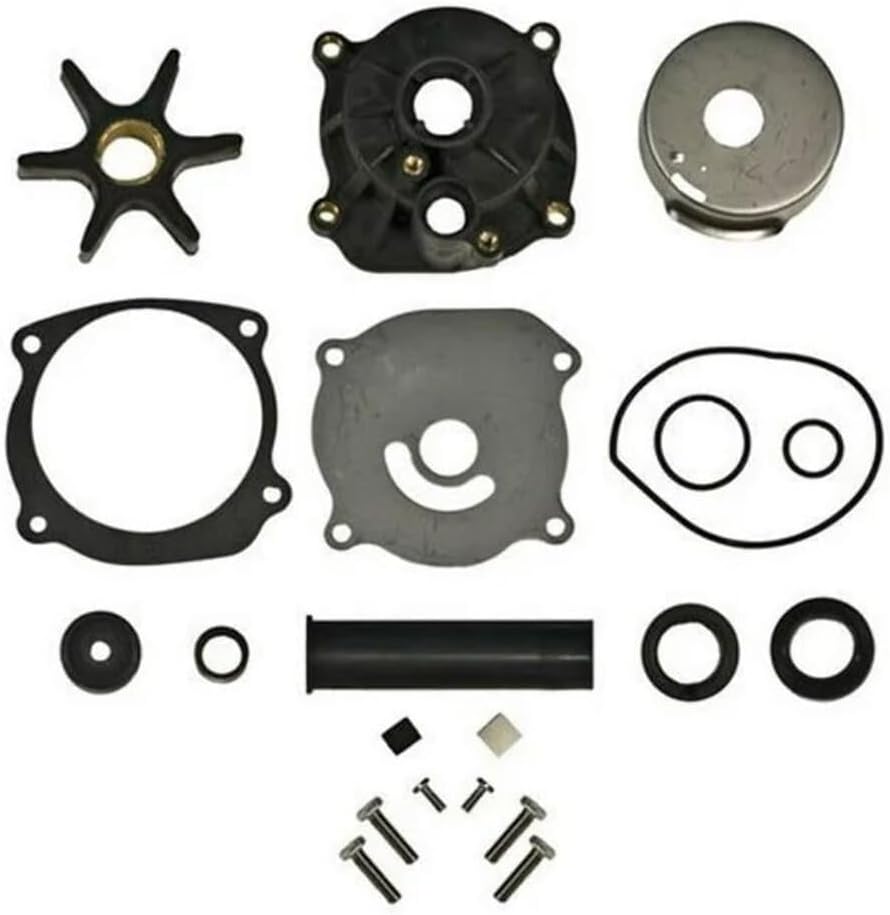

What’s in the Box

1 x Impeller & CAM Assembly (5001593/0777816)
1 x Cup Impeller Housing (0338486)
1 x Impeller Housing (0338893)
1 x Impeller Housing Plate Gasket (0338484)
1 x Plate (0338485)
1 x Impeller Housing to Plate Seal (0331353)
1 x Cover (0354578)
1 x O-Ring (0331188)
1 x Spacer to Impeller O-Ring (5" Longer Model) (0302035)
1 x Impeller Key (0331107)
4 x Grommets (0320943/0314008/0338601)
2 x Impeller Housing to gearcase - Y Screw (0302325)
4 x Screw (0306643)

Installation Notes

Disconnect the battery and remove the engine cowling to prevent accidental starting.
Place a drain pan under the lower unit and remove the gearcase oil drain/fill screws to empty the oil.
Remove the bolts securing the lower unit (gearcase) to the midsection and carefully lower it from the engine.
Unbolt the existing water pump housing. You may need to gently pry it loose if it is stuck.
Remove the old impeller, gaskets, wear plate, and seals, taking note of their orientation for reassembly.
Thoroughly clean the driveshaft and all mating surfaces on the gearcase, removing any old gasket material or sealant.
Install the new gaskets, wear plate, impeller key, and impeller. Ensure the key is properly seated and the impeller vanes are oriented correctly (typically bent counter-clockwise during housing installation).
Install the new housing and seals, tightening the bolts to the manufacturer's specified torque in a crisscross pattern.
Carefully reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube align correctly.
Refill the gearcase with fresh marine-grade gear oil according to your engine's manual.
Before launching the boat, use a flush attachment ("muffs") to supply water to the engine and check for a strong, steady stream from the telltale outlet.

Troubleshooting & FAQ

How do I know if this kit fits my specific engine?

First, check the "Engine & Model Compatibility" table and cross-reference your engine's model, horsepower, and year. Second, use the "Part Number Matrix" to see if your old part number is listed. This kit is specifically for V4, V6, and V8 engines from 1991–2010 that use a flat-sided impeller drive key.

What are the signs of a failing water pump?

Common signs include the engine overheating at idle or low speeds, a weak or inconsistent stream of water from the "telltale" outlet, and visible damage like a dry-rotted, cracked, or melted impeller upon inspection.

How often should the water pump impeller be replaced?

As a general maintenance guideline, it's recommended to inspect and/or replace the water pump impeller every 1–2 years or every 100–200 hours of operation, whichever comes first. Proactive replacement helps prevent unexpected engine overheating.

Is the housing included in this kit?

Yes, this is a complete Water Pump Kit with Housing. It includes the impeller cup, housing body, wear plate, impeller, gaskets, and all necessary installation hardware as listed in the "What’s in the Box" section.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. All our parts are manufactured in an ISO 9002 facility and are batch-inspected for quality and consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free to most locations, with expedited options available at checkout where applicable.

Warranty & returns?

Our parts are covered by a 1-year warranty against manufacturing defects under normal use. If you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window for parts that are unused and in original condition. See our policy page or reach out for instructions.

Safety & Important Info

Verify images and specifications against your original part before purchasing. If anything differs—even if your model appears on the compatibility list—do not purchase.
This is an aftermarket replacement component, not an Original Equipment Manufacturer (OEM) part.
Professional installation is highly recommended for safety, performance, and to prevent damage to your engine.
