Water Pump Repair Kit – Fits Mercury & Mariner 25-30 HP Outboards (Replaces 853792T01, 853792A1)

$60.00 $96.00

Shipping calculated at checkout.

Water Pump Repair Kit – Fits Mercury & Mariner 25-30 HP Outboards (Replaces 853792T01, 853792A1) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

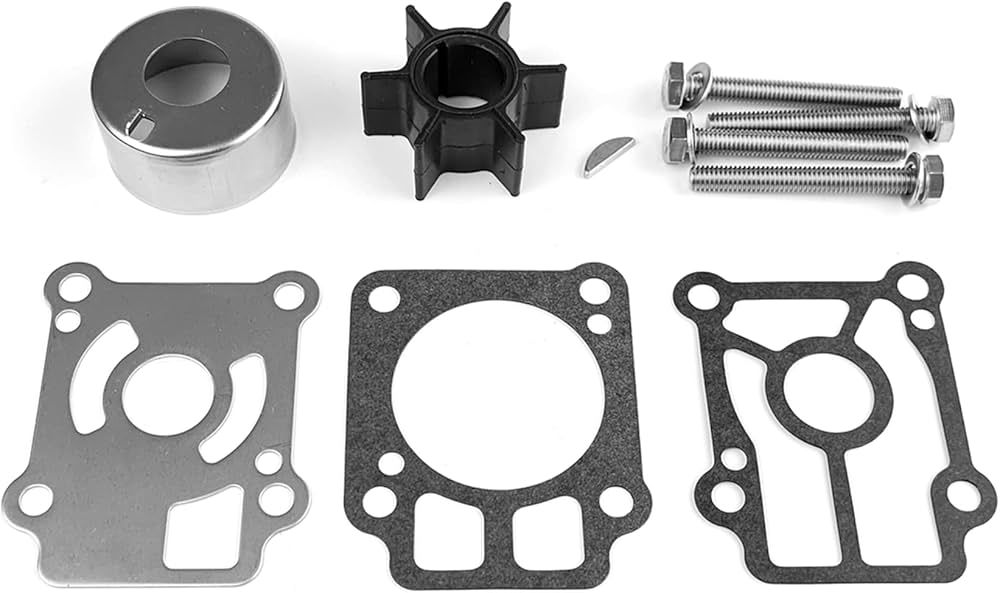

This Water Pump Repair Kit is engineered for Mercury & Mariner 25–30 HP, 2-stroke and 4-stroke outboards manufactured between 2001 and 2010. It provides a complete, reliable solution for overhauling your engine's cooling system to prevent overheating and maintain performance.

This kit serves as a direct interchange for several part numbers, including Mercury 853792T01, 853792A1, 853792A07, 8M0208905, and SeaSierra 853792A07.

Designed for direct replacement of the OEM cooling system components.
Components are made from durable materials including stainless steel, non-asbestos paper, and neoprene rubber.
Confirmed as a factory original equipment replacement for a direct fit on all listed models.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Superseded By
Mercury	853792A1	853792T01
Mercury	853792A07	853792T01
Mercury	853792T01
Mercury	8M0208905
SeaSierra	853792A07

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Mercury Outboards, check your specific model and serial number range against the notes provided.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercury	25 M	25	2-Stroke	2002–2006	853792T01	Fits 1025207ZL, 1025207ZM, 1025207AL, 1025207AM, 1025207CL, 1025207CM, 1025207FM
Mercury	25 MH	25	2-Stroke	2006	853792T01	Fits 1025207FL
Mercury	25 ML	25	2-Stroke	2002–2006	853792T01	Fits 1025217ZL, 1025217ZM, 1025217AL, 1025217AM, 1025217CL, 1025217CM, 1025217FM
Mercury	25 MLH	25	2-Stroke	2006	853792T01	Fits 1025217FL
Mercury	25 MLH/JET25	25	2-Stroke	2006	853792T01	Fits 1030271HL
Mercury	25 EL	25	2-Stroke	2010	853792T01	Fits 1025312FL
Mercury	30 E	30	2-Stroke	2001–2006	853792T01	Fits 1030302YL, 1030302CL, 1030302FL
Mercury	30 EL	30	2-Stroke	2004–2006	853792T01	Fits 1030312CL, 1030312FL
Mercury	30 ELH	30	2-Stroke	2006	853792T01	Fits 1030A11FL, 1030A11FM
Mercury	30 EMH	30	2-Stroke	2001–2006	853792T01	Fits 1030A01YL, 1030A01CL, 1030A01FL
Mercury	30 EMLH	30	2-Stroke	2001–2004	853792T01	Fits 1030A11YL, 1030A11CL, 1030A11CM
Mercury	30 M	30	2-Stroke	2001–2004	853792T01	Fits 1030201YL, 1031207ZF, 1030201AL, 1030302AL, 1030201CL
Mercury	30 MH	30	2-Stroke	2006	853792T01	Fits 1030201FL
Mercury	30 ML	30	2-Stroke	2001–2004	853792T01	Fits 1030211YL, 1031217ZF, 1030211AL, 1030211CL
Mercury	30 MLH	30	2-Stroke	2006	853792T01	Fits 1030211FL

For Mariner Outboards, please verify your model and associated `Fits` code to ensure compatibility.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mariner	25 M	25	2-Stroke	2002–2004	853792T01	Fits 7025207LL, 7025217LL, 7025207ML, 7025217ML, 7025207RL, 7025217RL
Mariner	25 MH	25	2-Stroke	2006	853792T01	Fits 7025207UL
Mariner	25 MLH	25	2-Stroke	2006	853792T01	Fits 7025217UL
Mariner	30 E	30	2-Stroke	2001–2006	853792T01	Fits 7030302KL, 7030302RL, 7030302UL
Mariner	30 EH	30	2-Stroke	2006	853792T01	Fits 7030A01UL
Mariner	30 EL	30	2-Stroke	2001–2006	853792T01	Fits 7030312KL, 7030312RL, 7030312UL
Mariner	30 ELH	30	2-Stroke	2006	853792T01	Fits 7030A11UL
Mariner	30 EMH	30	2-Stroke	2001	853792T01	Fits 7030A01KL
Mariner	30 EMLH	30	2-Stroke	2001–2004	853792T01	Fits 7030A11KL, 7030A11RL
Mariner	30 M	30	2-Stroke	2001–2004	853792T01	Fits 7030201KL, 7031207LF, 7030201ML, 7031207MF, 7030201RL
Mariner	30 MH	30	2-Stroke	2006	853792T01	Fits 7030201UL
Mariner	30 ML	30	2-Stroke	2001–2004	853792T01	Fits 7030211KL, 7031217LF, 7030211RL
Mariner	30 MLH	30	2-Stroke	2006	853792T01	Fits 7030211U2, 7030211UL

Technical Specs

Product Type: Water Pump Repair Kit
Installation: Direct replacement for OEM cooling system
Component Materials: Varies (Components include stainless steel, non-asbestos paper, neoprene rubber)
Dimensions: 9.0 in × 10.0 in × 6.0 in (229 mm × 254 mm × 152 mm)
Weight: 0.10 kg (0.22 lb)
Warranty: Standard manufacturer warranty
Other Technical Attributes: Factory original equipment replacement parts

What’s in the Box

Complete Water Pump Kit components (replaces 853792T01)

Installation Notes

Disconnect the battery and uncouple the shift linkage.
Remove the mounting bolts that secure the lower unit (gearcase) to the engine midsection.
Carefully lower and slide the gearcase assembly away from the engine.
Unbolt and remove the old water pump housing to access the impeller and wear plates.
Thoroughly clean the driveshaft and all mounting surfaces, removing any old gasket material or debris.
Install the new impeller, woodruff key, face plate, and gaskets as provided in the kit. Ensure the impeller vanes are oriented correctly.
Secure the new water pump housing over the impeller assembly and tighten the bolts to the manufacturer's torque specifications.
Carefully guide the lower unit back into place, ensuring the driveshaft, shift shaft, and water tube are properly aligned.
Reinstall the lower unit bolts and reconnect the shift linkage.
Reconnect the battery, supply water to the engine's intakes, and start the engine to check for proper water flow from the tell-tale outlet.

Troubleshooting & FAQ

How do I know if my water pump is failing?

Common signs of a failing water pump include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, or a melted/deformed impeller upon inspection. Reduced engine performance at high speeds can also indicate poor cooling.

What is the recommended replacement interval for this kit?

For optimal performance and engine protection, it is recommended to inspect your water pump impeller annually and replace the entire kit every 1-2 years or every 100-200 hours of operation, whichever comes first. This interval should be shortened if operating frequently in saltwater or debris-heavy water.

Does this kit include the housing?

Yes, this is a complete repair kit that includes the water pump housing, impeller, wear plate, gaskets, seals, and all other necessary components for a full replacement.

Is this kit compatible with 4-stroke models?

Yes, this kit is designed for a range of both 2-stroke and 4-stroke Mercury and Mariner outboards within the 25-30 HP class from 2001–2010. It is critical to check your specific engine model and year against our compatibility tables before ordering.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). It has been built to OEM-level specifications with comparable materials. All parts are manufactured in an ISO 9002 facility and batch-inspected for quality and consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free, with expedited options available at checkout where applicable.

Warranty & returns

This product is covered by a 1-year warranty against manufacturing defects under normal use. If any issues arise, please contact our support team with your order details. Returns are accepted within our standard window, provided the part is unused and in its original condition. See our policy page or reach out for instructions.

Safety & Important Info

Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement component, not an Original Equipment Manufacturer (OEM) part.
Professional installation is highly recommended for safety and optimal performance.
