Water Pump Repair Kit – Fits Yamaha 9.9/15HP Outboards (Replaces 68...
Product Details
This Water Pump Repair Kit – Fits Yamaha 9.9/15HP Outboards (Replaces 682-W0078-A1-00) provides all the essential components to restore your engine’s cooling system. It is designed for a precise fit on Yamaha 2-Stroke 9.9/15HP (1984–1995) and F9.9/T9.9/FT9.9 4-Stroke (1985–1996) models.
It serves as a direct replacement for various OEM and aftermarket part numbers, including Yamaha 682-W0078-A1-00, Sierra 18-3148, and others, ensuring broad compatibility.
- Engineered for direct OEM replacement fit and function.
- Includes all necessary gaskets, impeller, wear plate, and hardware for a complete overhaul.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 682-W0078-A1-00, 682-W0078-01-00, 682-W0078-00-00 |
| Sierra | 18-3148 |
| Mercury | 84277T, 46-84277M |
| EMP | 46-02077 |
| GLM Marine | 12278 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha Owners: This kit covers a wide range of 9.9 HP and 15 HP two-stroke and four-stroke outboards from 1984 to 1996. Verify your model code (e.g., 6E7, 6G8) against the list for an exact match.
For Mercury Owners: This kit fits specific 9.9 HP (682) and 15 HP (684) two-stroke models. The OEM part number is 46-84277T.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 9.9D (6E7) | 9.9 | 2-Stroke | 1984–1995 | 682-W0078-A1-00 | |
| Yamaha | 15D (6E8) | 15 | 2-Stroke | 1984–1995 | 682-W0078-A1-00 | |
| Yamaha | F9.9A (6G8) | 9.9 | 4-Stroke | 1985–1996 | 682-W0078-A1-00 | |
| Yamaha | F9.9B (6G9) | 9.9 | 4-Stroke | 1985–1996 | 682-W0078-A1-00 | |
| Yamaha | FT9.9A | 9.9 | 4-Stroke | 1985–1990 | 682-W0078-A1-00 | |
| Yamaha | T9.9 | 9.9 | 4-Stroke | 1991–1996 | 682-W0078-A1-00 | |
| Yamaha | 9.9ELN/ESN/LN/SN | 9.9 | 2-Stroke | 1984 | 682-W0078-A1-00 | |
| Yamaha | 9.9ELK/ESK/LK/SK | 9.9 | 2-Stroke | 1985 | 682-W0078-A1-00 | |
| Yamaha | 15ELN/ESN/LN/SN | 15 | 2-Stroke | 1984 | 682-W0078-A1-00 | |
| Yamaha | 15ELK/ESK/LK/SK | 15 | 2-Stroke | 1985 | 682-W0078-A1-00 | |
| Yamaha | Various 9.9/15 models | 9.9/15 | 2-Stroke | 1984–1995 | 682-W0078-A1-00 | See fitment grid for specific model codes |
| Mercury | 9.9 (682) | 9.9 | 2-Stroke | 46-84277T | ||
| Mercury | 15C (684) | 15 | 2-Stroke | 46-84277T |
Technical Specs
- Product Type
- Water Pump Repair Kit
- Installation
- Direct OEM Replacement
- Dimensions
- 15.5" L x 12.0" W x 9.0" H
- Weight
- 0.25 kg (0.55 lb)
- Warranty
- Manufacturer's Standard Warranty
- Other Technical Attributes
- Includes all necessary gaskets, impeller, wear plate, and hardware

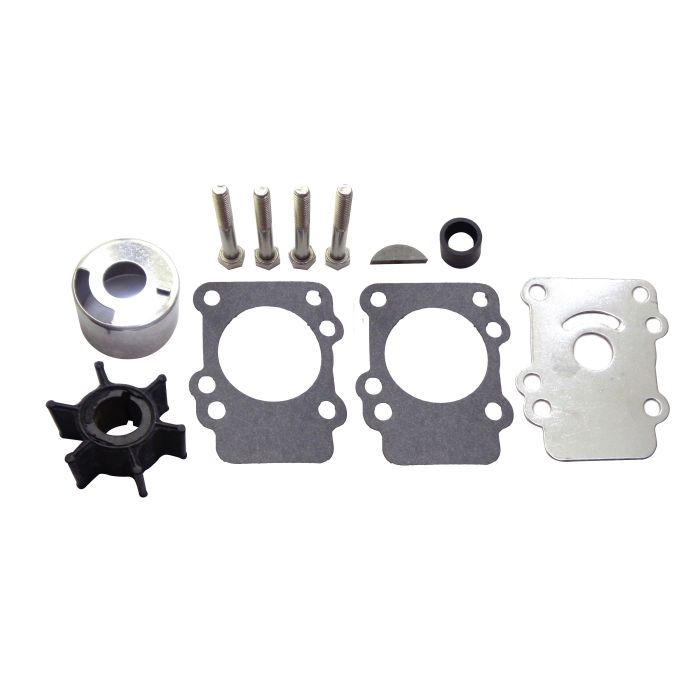

What’s in the Box
- 1 x Impeller (682-44352-01-00/682-44352-03-00)
- 1 x Cartridge Insert/Cup (682-44322-00-00)
- 1 x Cartridge Outer Plate/Wear Plate (682-44323-00-00)
- 1 x Water Seal Damper (682-44365-00-00)
- 1 x Woodruff Key (90280-03024-00)
- 2 x Water Pump Gasket (682-44315-A0-00)
- 4 x Bolt (97095-06040-00)
Installation Notes
- Disconnect the battery and remove the engine cowling.
- Drain the gearcase oil into a suitable container.
- Unbolt and carefully slide the lower unit (gearcase) off the driveshaft housing.
- Remove the old water pump housing, impeller, gaskets, and wear plate. Note the orientation of all parts.
- Thoroughly clean the mating surfaces to ensure a proper seal.
- Install the new components from the kit in reverse order of disassembly. Lightly grease the new impeller.
- Reinstall the water pump housing and torque the bolts to the manufacturer's specified values.
- Apply sealant to gaskets if required and reinstall the lower unit.
- Refill the gearcase with the correct type and amount of oil.
- Reconnect the battery and test the engine's cooling system operation in water, ensuring a steady stream of water from the tell-tale port.
Troubleshooting & FAQ
How do I know if this kit fits my engine?
The surest way is to match your engine's model and year to our compatibility chart. You can also verify by cross-referencing your existing part number with the equivalents in our Part Number Matrix.
What are the signs of a failing water pump?
Common symptoms include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, and in severe cases, steam from the exhaust. Reduced engine performance can also be an indicator.
How often should I replace my water pump impeller?
As a general maintenance rule, most manufacturers recommend replacing the impeller every 1–2 years or every 100–200 hours of operation, whichever comes first. This interval can be shorter if you operate in sandy, silty, or saltwater conditions.
Is this a complete repair kit?
Yes, this kit includes everything shown in the "What's in the Box" section: impeller, housing insert, wear plate, gaskets, a woodruff key, and mounting bolts needed for a standard water pump service.
Can I install this kit myself?
If you have good mechanical skills and the correct tools, installation is manageable. However, due to the importance of the cooling system for engine health, we recommend professional installation if you are not fully confident.
What’s the difference between this and an OEM kit?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
How fast is shipping?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
