Water Pump Impeller Kit – Fits MerCruiser Bravo 1/2/3 4.3L-7.4L V8 Engines (Replaces 47-59362T6, 47-59362T1)
Water Pump Impeller Kit – Fits MerCruiser Bravo 1/2/3 4.3L-7.4L V8 Engines (Replaces 47-59362T6, 47-59362T1) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Water Pump Impeller Kit – Fits MerCruiser Bravo 1/2/3 4.3L-7.4L V8 ...
Water Pump Impeller Kit – Fits MerCruiser Bravo 1/2/3 4.3L-7.4L V8 Engines (Replaces 47-59362T6, 47-59362T1) is backordered and will ship as soon as it is back in stock.
Product Details
This Sea Sierra Water Pump Impeller Kit is designed for MerCruiser Bravo 1, 2, and 3 inboard and sterndrive engines (4.3L, 5.0L, 5.7L, 7.4L, and 8.2L V8 models) from 1997 and later that are equipped with a one-piece sea water pump body. It provides a reliable solution for maintaining optimal engine cooling performance.
This kit serves as a direct replacement for multiple OEM and aftermarket parts, including Mercury 47-59362T6, 47-59362T1, and Sierra 18-3087.
- Engineered for a direct fit on units with a one-piece pump body.
- Features a durable neoprene impeller with a hardened nylon hub for longevity.

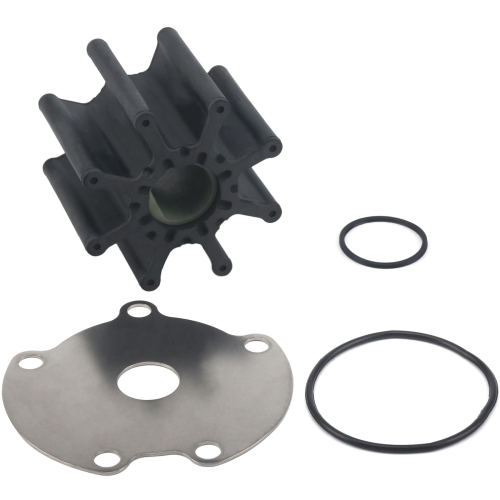

- Kit includes one impeller, one face plate, and two O-rings for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 47-59362T6 |
| Mercury | 59362T6 |
| Mercury | 47-59362T1 |
| Mercury | 59362T1 |
| Mercury | 47-59362 |
| Mercury | 59362 |
| Mercury | 47-59362A1 |
| Mercury | 59362A1 |
| Mercury | 47-59362Q01 |
| Mercury | 59362Q01 |
| Sierra | 18-3087 |
| GLM | 89740 |
| Mallory | 9-45375 |
| Jabsco | 17954-0001-P |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For MerCruiser models, this kit fits various V8 inboard and sterndrive engines from 1997 and later, specifically those using a one-piece raw water pump housing.
| Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|
| MerCruiser 260 | 260 | 4-Stroke | 1981–1984 | 47-59362T6 | |
| MerCruiser 340 | 340 | 4-Stroke | 1981–1987 | 47-59362T6 | |
| MerCruiser 350 MAG/MPI/TBI | 300+ | 4-Stroke | Various | 47-59362T6 | |
| MerCruiser 454 MAG/SKI/TBI | 330+ | 4-Stroke | Various | 47-59362T6 | |
| MerCruiser Inboard 4.3L | 190-220 | 4-Stroke | 1997–Later | 47-59362T6 | For engines with one-piece pump body |
| MerCruiser Inboard 5.0L | 220-260 | 4-Stroke | 1997–Later | 47-59362T6 | For engines with one-piece pump body |
| MerCruiser Inboard 5.7L | 250-300 | 4-Stroke | 1997–Later | 47-59362T6 | For engines with one-piece pump body |
| MerCruiser Inboard 7.4L | 310-340 | 4-Stroke | 1997–Later | 47-59362T6 | For engines with one-piece pump body |
| MerCruiser Inboard 8.2L | 375-420 | 4-Stroke | 1997–Later | 47-59362T6 | For engines with one-piece pump body |
| MerCruiser Bravo 1 | Various | 4-Stroke | 1997–Later | 47-59362T6 | For one-piece pump body |
| MerCruiser Bravo 2 | Various | 4-Stroke | 1997–Later | 47-59362T6 | For one-piece pump body |
| MerCruiser Bravo 3 | Various | 4-Stroke | 1997–Later | 47-59362T6 | For one-piece pump body |
| MerCruiser Race 320 efi | 320 | 4-Stroke | Various | 47-59362T6 | |
| MerCruiser Race 377 efi | 377 | 4-Stroke | Various | 47-59362T6 | |
| MerCruiser Race 420-800SC | 420-800 | 4-Stroke | Various | 47-59362T6 | High-performance models |
Technical Specs
- Product Type
- Sea Water Pump Impeller Kit
- Installation
- Replacement for one-piece pump body
- Material
- Neoprene rubber with hardened nylon hub
- Impeller Type
- 8-blade with D-shaped shaft/single flat drive
- Dimensions
- Bore: 0.75 in (19.05 mm), OD: 2.64 in (67.06 mm), Thickness: 2.01 in (51.05 mm)
- Weight
- 90 g (3.2 oz)
- Application
- MerCruiser Bravo 1, 2, 3 Inboard and Sterndrive engines
- Compatible Engine Types
- 4.3L, 5.0L, 5.7L, 7.4L, 8.2L V8
- Housing Compatibility
- One-piece pump body
What’s in the Box
- 1 x Water Pump Impeller
- 1 x Face Plate
- 2 x O-ring
Installation Notes
- Disconnect the battery and close the seacock/sea strainer valve.
- Locate the sea water pump on the engine. Note the hose connections before removal.
- Loosen the clamps and remove the inlet and outlet hoses. Expect some water spillage.
- Unbolt the pump housing from the engine bracket.
- Remove the pump's rear cover or face plate screws to access the impeller.
- Note the rotational direction of the old impeller blades before removing it. Use pliers or an impeller puller if necessary.
- Clean the inside of the pump housing, ensuring the sealing surfaces are free of debris or scoring.
- Lubricate the new O-rings and interior of the housing with a suitable marine lubricant.
- Install the new impeller, bending the blades in the correct rotational direction.
- Reinstall the face plate with its new gasket/O-ring, and tighten screws to the manufacturer’s torque specification.
- Re-mount the pump, reconnect the hoses, and open the seacock valve.
- Start the engine and immediately check for water flow from the exhaust and inspect the pump for any leaks.
Troubleshooting & FAQ
How do I know if this impeller kit fits my engine?
This kit is for MerCruiser V8 engines (1997 and later) that have a one-piece sea water pump body. The key is the pump housing type. Please verify your engine has this specific pump before ordering and cross-reference your existing part number with our list.
What are the signs of a failing water pump impeller?
Common signs include a higher-than-normal engine temperature at idle or low speeds, a weak or non-existent stream of water from the exhaust outlet, and visible cracks, tears, or stiff/brittle blades on the impeller itself during inspection.
How often should the impeller be replaced?
As a preventative maintenance item, it's recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater, high-sand environments).
What can cause premature impeller failure?
The most common causes are running the pump dry (even for a few seconds), sucking up sand or debris which accelerates wear, and long periods of disuse where the blades can become stiff and take a permanent set.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
