Power Trim Tilt Hydraulic Ram Cylinder Hose Kit – Fits MerCruiser Alpha One Gen 1/2 & Bravo 1/2/3 (Replaces 32-864959, 32-864960, 32-99904Q)
Power Trim Tilt Hydraulic Ram Cylinder Hose Kit – Fits MerCruiser Alpha One Gen 1/2 & Bravo 1/2/3 (Replaces 32-864959, 32-864960, 32-99904Q) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Power Trim Tilt Hydraulic Ram Cylinder Hose Kit – Fits MerCruiser A...
Product Details
This complete Power Trim Tilt Hydraulic Ram Cylinder Hose Kit is engineered for MerCruiser Alpha One (Generation 1 and 2), R, MR, and Bravo (1, 2, and 3) sterndrives. It directly connects the trim/tilt cylinders to the hydraulic connector block, providing a reliable, direct-fit replacement for the original system.
This kit serves as a direct interchange for Mercury/MerCruiser part numbers 32-864959 (Port), 32-864960 (Starboard), and 32-99904Q (Shorter hoses), as well as Sierra 18-2116.
- Engineered for direct-fit installation, connecting trim cylinders to the hydraulic connector block.
- Constructed with braided stainless steel housing for superior corrosion resistance and durability in marine environments.
- Includes a complete set of four hoses required for a full system service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Mercury/MerCruiser | 32-864959 | Port |
| Mercury/MerCruiser | 32-864960 | Starboard |
| Mercury/MerCruiser | 32-99904Q | Shorter Hoses |
| Sierra | 18-2116 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For MerCruiser sterndrives, this kit fits various Alpha, R, MR, and Bravo models. Ensure your application uses 16-3/16" long cylinders for proper fitment.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| MerCruiser | Alpha One Gen 2 | All | 4-Stroke | 1991 & Up | 32-864959 (Port), 32-864960 (Starboard) | 16-3/16" Length |
| MerCruiser | Alpha One Gen 1 | All | 4-Stroke | 1991 & Up | 32-864959 (Port), 32-864960 (Starboard) | 16-3/16" Length |
| MerCruiser | R | All | 4-Stroke | 1983–1990 | 32-864959 (Port), 32-864960 (Starboard) | With 16-3/16" cylinders |
| MerCruiser | MR | All | 4-Stroke | 1983–1990 | 32-864959 (Port), 32-864960 (Starboard) | With 16-3/16" cylinders |
| MerCruiser | Bravo 1 | All | 4-Stroke | 1991 & Up | 32-864959 (Port), 32-864960 (Starboard) | With 9B-106/9B-116 cylinders |
| MerCruiser | Bravo 2 | All | 4-Stroke | 1991 & Up | 32-864959 (Port), 32-864960 (Starboard) | With 9B-106/9B-116 cylinders |
| MerCruiser | Bravo 3 | All | 4-Stroke | 1991 & Up | 32-864959 (Port), 32-864960 (Starboard) | With 9B-106/9B-116 cylinders |
Technical Specs
- Product Type
- Trim/Tilt Hydraulic Hose Kit
- Installation
- Direct replacement
- Connection
- Trim cylinder to connector block
- Housing Material
- Stainless Steel
- Housing Color
- Silver
- Dimensions
- Port/Starboard: 16-3/16" (411.5 mm)
- Fitting Type
- OEM-style connection
- Other Technical Attributes
- Works with Trim Cylinder Casting #14035-1
- Warranty
- 1 Year (Aftermarket)

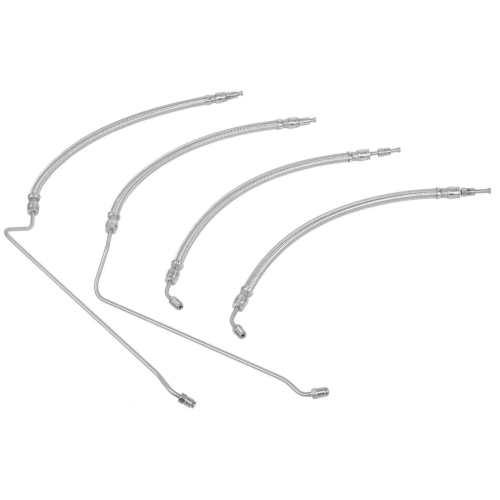

What’s in the Box
- 1 x Port cylinder to connector block (down pressure) hose (Replaces 32-864959)
- 1 x Starboard cylinder to connector block hose (Replaces 32-864960)
- 2 x Shorter hoses (Replaces 32-99904Q)
Installation Notes
- Tilt the sterndrive to the full "up" position and engage the trailering lock for safety.
- Disconnect the negative battery cable before beginning work.
- Place a suitable oil drain pan beneath the hydraulic pump and cylinder connections.
- Carefully disconnect the old hoses at both the trim cylinders and the connector block, noting their routing.
- Install the new hoses, ensuring the port and starboard lines are connected to their correct positions.
- Tighten all fittings to the manufacturer's recommended torque specifications; do not overtighten.
- Fill the hydraulic fluid reservoir with the appropriate trim/tilt fluid.
- Reconnect the battery and cycle the trim/tilt system 5-10 times to bleed any air from the lines.
- Check the fluid level again, top off as needed, and inspect all connections for leaks.
Troubleshooting & FAQ
How do I confirm these hoses will fit my specific MerCruiser model?
The key is to verify your sterndrive model and year against the compatibility table. This kit fits Alpha One (Gen 1 & 2), Bravo (1, 2, & 3), and older R/MR drives that use 16-3/16" long trim cylinders. Cylinders with casting number 14035-1 are also compatible.
What are the signs that my existing trim hoses need replacing?
Common signs of failure include visible fluid leaks around the fittings or along the hose, cracks or bulges in the hose casing, and a spongy or slow response when operating the trim/tilt system. Any visible damage warrants immediate replacement.
Can I replace just one leaking hose, or should I replace the whole set?
For optimal reliability and performance, it is highly recommended to replace all four hoses as a complete set. Hoses degrade at a similar rate, and replacing only one may lead to another failure shortly after.
What is the difference between these hoses and the original OEM parts?
These are aftermarket hoses designed to meet or exceed OEM specifications. They are made from comparable high-quality materials, such as braided stainless steel, to offer similar performance and durability to the original MerCruiser parts but at a more accessible price point.
How often should trim hoses be inspected or replaced as part of routine maintenance?
We recommend a visual inspection of all hydraulic hoses at least once per season. As a general guideline for preventative maintenance, consider replacing the hoses every 5-7 years, depending on usage and environmental conditions (e.g., saltwater vs. freshwater).
What type of hydraulic fluid should I use with these hoses?
Always use the fluid recommended by your sterndrive manufacturer. Typically, this is a high-quality power trim and steering fluid. Check your owner's manual for the exact specification to ensure system compatibility and longevity.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
