Crankshaft Bearing – Fits Suzuki DT20/DT25/DT30/DT75/DT85 Outboards...
Product Details

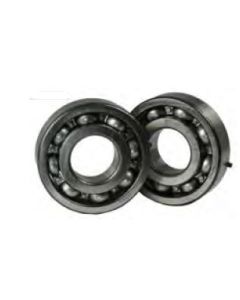

This aftermarket Crankshaft Bearing – Fits Suzuki DT20/DT25/DT30/DT75/DT85 Outboards (Replaces 09262-30055) is designed for a range of 2-stroke Suzuki outboard engines from 20 to 85 HP, manufactured between 1986 and 2004. It serves as a crucial internal component for crankshaft stability and engine performance.
It is a direct replacement for Suzuki OEM part numbers 09262-30055, 09262-30055-000, 09262-30091, 09262-30092, 09262-30049, 09262-30046, and 09262-30L02.
- Installation: Mounts as an internal engine component.
- Material: Constructed from durable steel for long-term performance.
- Warranty: Includes a 1-year warranty from TMP Global against manufacturing defects.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09262-30055 |
| Suzuki | 09262-30055-000 |
| Suzuki | 09262-30091 |
| Suzuki | 09262-30092 |
| Suzuki | 09262-30049 |
| Suzuki | 09262-30046 |
| Suzuki | 09262-30L02 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This bearing is verified to fit the listed Suzuki 2-stroke outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT20 | 20 | 2-Stroke | 1986–2000 | 09262-30055 | |
| Suzuki | DT25 | 25 | 2-Stroke | 1986–2004 | 09262-30055 | Includes DT25K1-K2 (2001-04) |
| Suzuki | DT30G-Y | 30 | 2-Stroke | 1986–2000 | 09262-30055 | |
| Suzuki | DT30K1-K2 | 30 | 2-Stroke | 2001–2004 | 09262-30055 | |
| Suzuki | DT40 | 40 | 2-Stroke | 1986–2000 | 09262-30055 | Listed by BH Marine |
| Suzuki | DT75 | 75 | 2-Stroke | 1986–2000 | 09262-30055 | |
| Suzuki | DT85J-Y | 85 | 2-Stroke | 1988–2000 | 09262-30055 | Listed by MarineEngine.com |
Technical Specs
- Product Type
- Crankshaft Bearing
- Installation
- Internal Engine Component
- Dimensions
- 30 × 72 × 19 mm
- Material
- Steel
- Weight
- 0.38 kg (0.83 lb)
- Warranty
- 1 Year (TMP Global)
What’s in the Box
- 1 × Crankshaft Bearing (09262-30055)
Installation Notes
- Disconnect the battery and all fuel lines before beginning work.
- Following the official service manual for your engine model, carefully disassemble the engine block to access the crankshaft.
- Remove the old crankshaft and bearings, noting their orientation.
- Thoroughly clean all mating surfaces, removing any old gasket material or debris.
- Press the new bearing into place, ensuring it is properly seated and lubricated according to manual specifications.
- Reinstall the crankshaft and reassemble the engine block, torquing all bolts to manufacturer specifications.
- Reconnect fuel lines and the battery, and test the engine at low RPM before returning to normal service.
Troubleshooting & FAQ
How do I know if this bearing fits my Suzuki outboard?
First, check the comprehensive compatibility table provided on this page. This part is confirmed to fit a wide range of Suzuki models including the DT20, DT25, DT30, DT75, and DT85 from years 1986–2004. For absolute certainty, cross-reference your original part’s number with those in our Part Number Matrix.
My engine is a Suzuki DT40. Will this fit?
While some aftermarket sources cite compatibility with the DT40, it is not universally confirmed across all suppliers. We strongly advise you to physically compare the bearing dimensions (30 × 72 × 19 mm) and OEM part number against your existing part before purchasing to ensure a perfect match.
What are the signs of a failing crankshaft bearing?
Common symptoms of a worn or failing crankshaft bearing include a distinct knocking, rumbling, or grinding noise from the engine that may increase with RPM. You might also notice excessive engine vibration or discover metallic shavings in the engine oil during an oil change.
What is the difference between this bearing and an OEM part?
This is an aftermarket component engineered to meet or exceed original equipment (OEM) standards for fit, function, and durability. It offers comparable performance and material quality at a more accessible price point.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
