Crankshaft Bearing – Fits Suzuki DT40/DTW 40-65HP Outboards (09262-35052)
Crankshaft Bearing – Fits Suzuki DT40/DTW 40-65HP Outboards (09262-35052) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Crankshaft Bearing – Fits Suzuki DT40/DTW 40-65HP Outboards (09262-...
Product Details

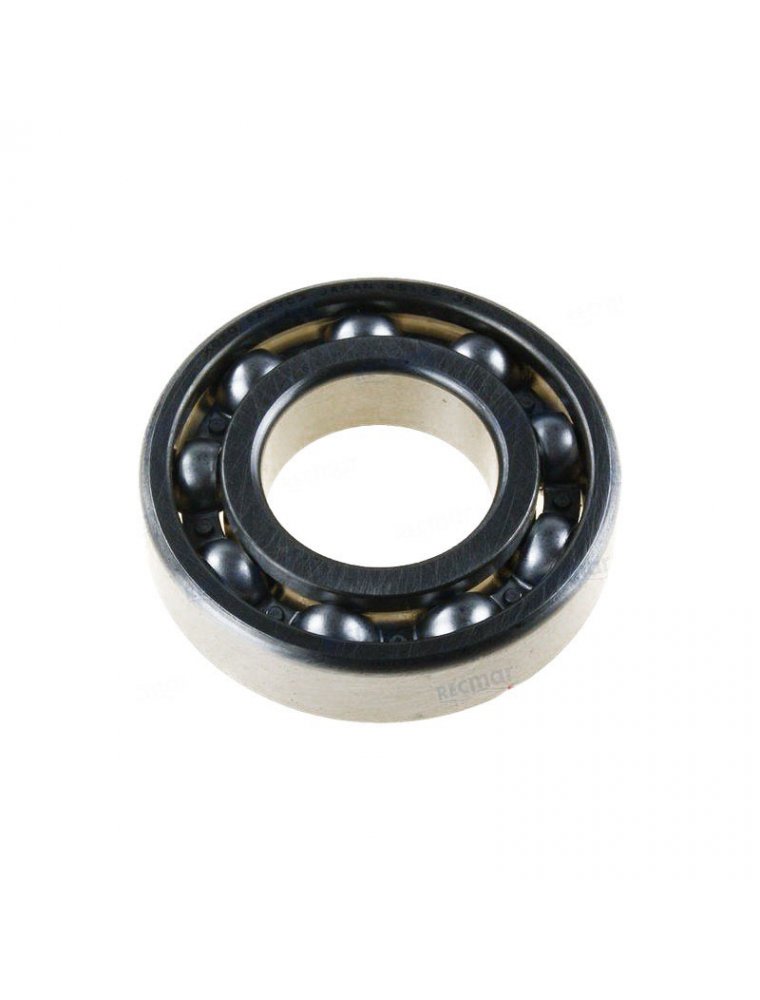

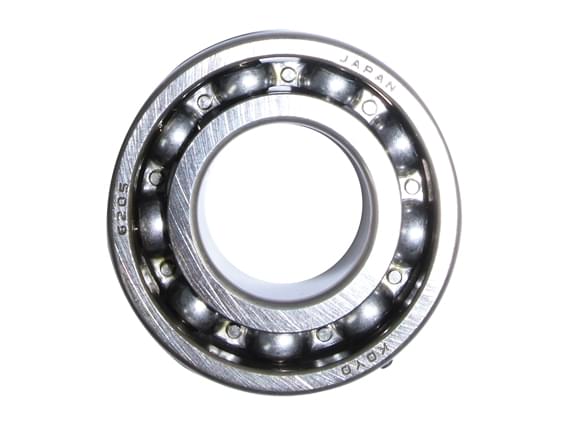

This is an aftermarket Crankshaft Bearing – Fits Suzuki DT40/DTW 40-65HP Outboards (09262-35052). It is designed for a wide range of Suzuki 40-65HP 2-Stroke outboards, including DT40, DT55, and DT65 series engines manufactured between 1986 and 2004. This component installs in the lower crankshaft position, serving as a crucial part for engine stability and performance.
This part is a direct replacement for Suzuki OEM part numbers 09262-35023, 09262-35049, 09262-35052, and the latest supersession, 09262-35L09.
- Installs in the lower position of the crankshaft.
- Engineered as a high-performance ball bearing.
- Includes one bearing, sufficient for a single replacement.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Suzuki | 09262-35023 | 09262-35049 |
| Suzuki | 09262-35049 | 09262-35052 |
| Suzuki | 09262-35052 | 09262-35L09 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki Outboards: Please verify your specific model and year against this list. This bearing fits a range of DT series engines from the mid-1980s to the early 2000s.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT40C/W/G/X | 40 | 2-Stroke | 1986–1999 | 09262-35052 | |
| Suzuki | DTW-K1-KA | 40 | 2-Stroke | 2001–2004 | 09262-35052 | |
| Suzuki | DT55TCLJ | 55 | 2-Stroke | 1988 | 09262-35052 | |
| Suzuki | DT55HTCLL | 55 | 2-Stroke | 1990 | 09262-35052 | |
| Suzuki | DT55CRLK | 55 | 2-Stroke | 1989 | 09262-35052 | |
| Suzuki | PU55CRSVK | 55 | 2-Stroke | 1989 | 09262-35052 | |
| Suzuki | DT65TCLJ | 65 | 2-Stroke | 1988 | 09262-35052 | |
| Suzuki | DT65HTCLL | 65 | 2-Stroke | 1990 | 09262-35052 | |
| Suzuki | DT65TCLS | 65 | 2-Stroke | 1995 | 09262-35052 |
Technical Specs
- Product Type
- Crankshaft Bearing
- Installation
- Lower Crankshaft (Under)
- Dimensions
- 35 × 72 × 18 mm
- Bearing Type
- Ball bearing
What’s in the Box
- 1 x Bearing (09262-35052)
Installation Notes
- Disconnect the battery and ensure the engine has completely cooled.
- Following your service manual, drain engine fluids and remove components to access the engine block.
- Carefully disassemble the engine block to expose the crankshaft assembly.
- Use a dedicated bearing puller to remove the old bearing from the crankshaft.
- Thoroughly clean the crankshaft journal and bearing seat, removing any grime or old sealant.
- Lubricate the new bearing with clean engine assembly lube.
- Press the new bearing into place using a press or appropriate installation tool. Do not strike the bearing directly.
- Reassemble the engine, ensuring all bolts are torqued to the manufacturer’s specifications.
- Refill engine fluids, reconnect the battery, and test at low RPMs before operation.
Troubleshooting & FAQ
How do I confirm this bearing fits my specific Suzuki model?
Check the "Engine & Model Compatibility" table on this page. Match your engine's model name, horsepower, and year range. For absolute certainty, cross-reference the OEM part number (09262-35052) with your engine's service manual or parts diagram.
What are common signs of a failed crankshaft bearing?
Symptoms of a bad crankshaft bearing include a knocking or rumbling noise from the engine that increases with RPM, excessive engine vibration, or the presence of metal shavings in the engine oil during an oil change.
Where is this specific bearing installed?
This is the lower crankshaft bearing, which is located at the bottom end of the crankshaft within the engine block.
Is this an OEM part?
This listing is for a high-quality aftermarket replacement, not an original OEM part. It is engineered to meet or exceed OEM specifications and is manufactured in an ISO 9002 certified facility to ensure quality and performance.
What is your shipping and return policy?
We offer fast worldwide shipping, with most orders arriving in 5–15 days. Standard shipping is free, with expedited options available at checkout. This part is covered by a 1-year warranty against manufacturing defects. Returns are accepted for unused items in their original condition; please see our full policy page for details.
Safety & Important Info
- Verify images and specifications against your original part before purchasing. If anything differs—even if your model is listed as compatible—do not install.
- This is an aftermarket replacement part, not an OEM component.
- Professional installation is strongly recommended for safety and optimal performance.
