Tapered Roller Bearing – Fits Suzuki 20-30 HP Outboard Motors (Repl...
Product Details

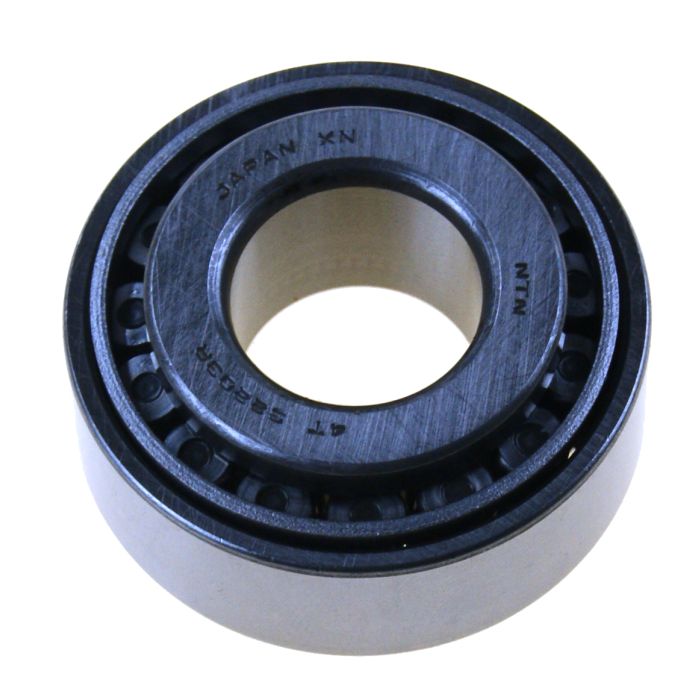

This high-quality Tapered Roller Bearing is engineered for Suzuki 20-30 HP outboard motors, including DT20, DT25, and DT30 2-stroke models (1986–2002) and DF25/DF30 4-stroke models (2000–2015+). It also fits select Johnson/Evinrude J/BJ 25 HP and J 30 HP models, serving as a robust replacement for various bearing applications like the gearbox, driveshaft, or steering head.
This component is a direct replacement for Suzuki part number 09265-17002, BRP (Evinrude/Johnson) 5031885, and OVERSEE 09265-17002-00.
- Manufactured in Japan from durable metallochrome steel for longevity.
- Designed for installation in the gearbox, driveshaft, or steering head assembly.
- Meets precise dimensional standards for reliable fit and function.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09265-17002 |
| Evinrude/Johnson (BRP) | 5031885 |
| OVERSEE | 09265-17002-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki outboards, this bearing fits a wide range of 2-stroke and 4-stroke models from 20 HP to 30 HP, as detailed below.
For Johnson/Evinrude outboards, please verify your specific model and year against OEM part number 5031885 before ordering.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Suzuki | DT20R | 20 | 2-Stroke | 1986–2000 | 09265-17002 |
| Suzuki | DT20 | 20 | 2-Stroke | 1986–2000 | 09265-17002 |
| Suzuki | DT25 | 25 | 2-Stroke | 1986–2000 | 09265-17002 |
| Suzuki | DT25C | 25 | 2-Stroke | 1989–2000 | 09265-17002 |
| Suzuki | DT25/DT30 K1-K2 | 25/30 | 2-Stroke | 2001–2002 | 09265-17002 |
| Suzuki | DT30C K-Y | 30 | 2-Stroke | 1989–2000 | 09265-17002 |
| Suzuki | DF25 | 25 | 4-Stroke | 2000–2006 | 09265-17002 |
| Suzuki | DF25V2 | 25 | 4-Stroke | 2006–2013 | 09265-17002 |
| Suzuki | DF30Y-K6 | 30 | 4-Stroke | 2000–2006 | 09265-17002 |
| Suzuki | DF25A | 25 | 4-Stroke | 2015+ | 09265-17002 |
| Suzuki | DF30A | 30 | 4-Stroke | 2015+ | 09265-17002 |
Technical Specs
- Product Type
- Tapered Roller Bearing
- Installation Location
- Gearbox/Driveshaft/Steering Head
- Housing Material
- Metallochrome Steel
- Dimensions
- 25 × 62 × 17 mm (0.98 × 2.44 × 0.67 in)
- Weight
- 0.27 kg (0.60 lb)
- Other Attributes
- Japanese-manufactured bearing
What’s in the Box
- 1 x Bearing (09265-17002/5031885)
Installation Notes
- Disconnect the battery and ensure the engine is stable and secure.
- Depending on the bearing location, drain the gearcase oil if accessing the driveshaft or gearbox.
- Disassemble the corresponding components (steering head, lower unit) to access the old bearing.
- Carefully remove the old bearing using an appropriate bearing puller or press. Avoid damaging the housing.
- Thoroughly clean the bearing seat and surrounding area, removing any old grease, rust, or debris.
- Apply a thin coat of marine-grade grease to the new bearing and its seat.
- Press the new bearing into place evenly using a press or a correctly sized driver. Do not hammer directly on the bearing.
- Reassemble all components in reverse order, ensuring correct torque specifications.
- If applicable, refill the gearcase with fresh lubricant.
- Test for smooth operation before returning to service.
Troubleshooting & FAQ
How do I know if this bearing fits my engine?
The best way is to match your original part number to the ones listed: Suzuki 09265-17002 or BRP 5031885. You can also use our compatibility table to check your engine model and year range. When in doubt, compare the listed dimensions (25x62x17mm) to your old part.
Where is this bearing typically installed?
This part is versatile and used in several locations depending on the engine model, including the driveshaft housing, gearbox, or as a steering head bearing. Consult your service manual to confirm the exact location for your specific outboard.
What are the signs of a failing tapered roller bearing?
Common symptoms include a grinding or whining noise from the engine's lower unit or steering column, excessive vibration, or noticeable play/looseness in the driveshaft or steering. A visual inspection may reveal corrosion, pitting, or visible wear on the bearing races.
Do I need special tools for installation?
Yes, professional installation is recommended. Tools such as a bearing press or a specialized bearing driver and puller are often required to remove the old bearing and install the new one without damaging the part or its housing.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9001 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
