Thrust Bearing (20x35x4.5) – Fits Suzuki 9.9HP-15HP Outboards (Repl...
Product Details

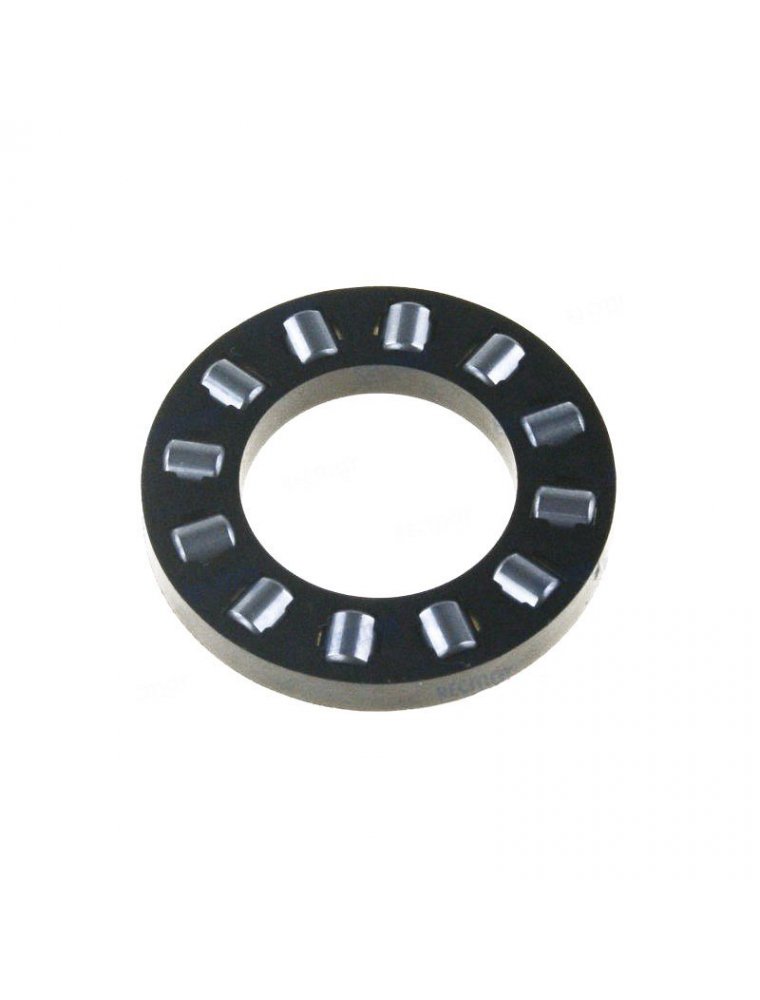

This is an aftermarket Thrust Bearing (20x35x4.5) designed for Suzuki 9.9HP and 15HP 2-stroke outboard models from the 1990s to the current year. It ensures smooth rotational movement in the gearcase and driveshaft assembly, reducing friction and wear.
This part serves as a direct replacement for Suzuki part numbers 09263-20024, 09263-20L04, 09263-20L04-000, and OMC/Johnson/Evinrude 5033003.
- Installation Method: Requires a press-in fit into the gearcase housing.
- Material: Constructed from durable steel for longevity in marine environments.
- Design: Features a roller cage style for efficient load distribution.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Suzuki | 09263-20024 | 09263-20L04 | Original part number. |
| Suzuki | 09263-20L04 | Current part number. | |
| Suzuki | 09263-20L04-000 | Alternate part number format. | |
| OMC/Johnson/Evinrude | 5033003 | Cross-referenced to Suzuki 09263-20L04. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This bearing is a confirmed fit for the specified Suzuki 2-stroke outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT9.9 / DT15 | 9.9–15 | 2-Stroke | 1997–2010 | 09263-20L04 | Superseded from 09263-20024 |
| Suzuki | DT9.9B / DT15A / DT20A | 9.9–20 | 2-Stroke | 2013–Current | 09263-20L04 |
Technical Specs
- Product Type
- Thrust Bearing
- Installation
- Press-In
- Dimensions
- 20 × 35 × 4.5 mm
- Material
- Steel
- Other Technical Attributes
- Roller cage style bearing
What’s in the Box
- 1 x Thrust Bearing (Replaces 09263-20L04)
Installation Notes
- Disconnect the battery and secure the engine in a stable, upright position.
- Drain the gearcase oil.
- Disassemble the lower unit (gearcase) to access the driveshaft assembly.
- Carefully press out the old, worn thrust bearing using a suitable bearing puller or press.
- Thoroughly clean the bearing seat and surrounding area, inspecting for any damage or burrs.
- Align the new thrust bearing and use a press and appropriate driver to install it until it is fully seated. Do not hammer the bearing into place.
- Reassemble the driveshaft and gearcase components according to the manufacturer's service manual, ensuring correct shimming and torque specifications.
- Refill the gearcase with fresh oil before operation.
Troubleshooting & FAQ
How do I know if this thrust bearing fits my outboard?
This bearing fits specific Suzuki 9.9HP and 15HP 2-stroke models. Check the "Engine & Model Compatibility" table and compare your engine's model, year, and original part number to confirm fitment. Visually matching your old part is always recommended.
What are the signs of a failing thrust bearing?
Symptoms of a bad thrust bearing include grinding or humming noises from the gearcase, excessive vibration during operation, or difficulty shifting gears. A conclusive diagnosis is often made during a lower unit service by inspecting for pitting, scoring, or roughness when turning the bearing.
What is the difference between part 09263-20024 and 09263-20L04?
The part number 09263-20L04 is the official superseded (updated) version for 09263-20024. They are dimensionally and functionally identical. This aftermarket part is a direct replacement for both OEM versions.
Can I install this myself?
Installation requires disassembly of the outboard's lower unit and the use of a mechanical press to seat the bearing correctly. Due to the precision required, professional installation by a qualified marine mechanic is highly recommended to prevent damage and ensure safety.
How often should this bearing be replaced?
There is no fixed replacement interval. The bearing should be inspected for wear, damage, or roughness anytime the gearcase is serviced. Replace it if any signs of failure are present to prevent catastrophic gear damage.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
