Cylinder Head Gasket – Fits Suzuki DT55/DT65 3-Cylinder Outboards (...
Product Details

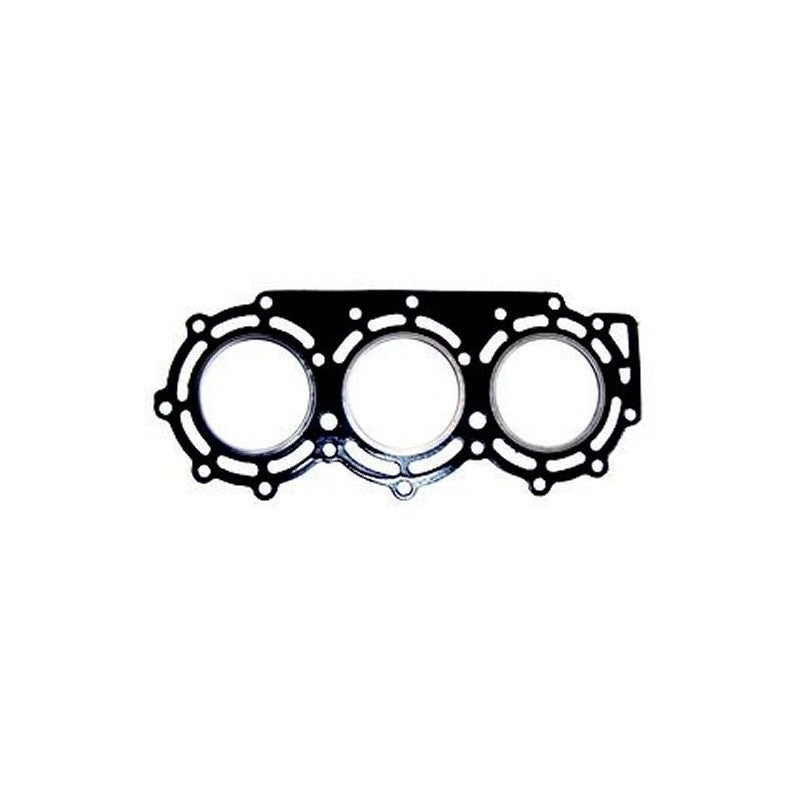

This high-quality aftermarket Cylinder Head Gasket is engineered for a precise fit on Suzuki DT55 and DT65 3-cylinder, 2-stroke outboard engines manufactured between 1988 and 1999. It serves as a direct-fit replacement, ensuring reliable sealing and engine performance.
It provides a direct interchange for Suzuki part numbers 11141-94701, 11141-94701-H17, 11141-94710, 11141-94720, and 11141-94720-000, as well as aftermarket equivalents from GLM (36250) and Sierra (18-3820).
- Installation Method: Direct replacement
- Material: Durable multi-layer composite
- Compatibility: J-X engine series
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 11141-94701 |
| Suzuki | 11141-94701-H17 |
| Suzuki | 11141-94710 |
| Suzuki | 11141-94720 |
| Suzuki | 11141-94720-000 |
| GLM | 36250 |
| Sierra | 18-3820 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is designed for specific Suzuki outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT55 | 55 | 2-Stroke | 1988–1999 | 11141-94720 | Multiple supersession part numbers |
| Suzuki | DT65 | 65 | 2-Stroke | 1988–1999 | 11141-94720 | J-X engine variant |
Technical Specs
- Product Type
- Cylinder Head Gasket
- Installation
- Direct replacement
- Fuel Type
- Gasoline (Petrol)
- Material
- Multi-layer composite
- Dimensions
- 36.0 cm L x 15.0 cm W x 2.0 cm H
- Weight
- 0.10 kg (0.22 lb)
- Warranty
- Typically 1-year limited warranty (varies by seller)
- Other Technical Attributes
- J-X engine series compatible
What’s in the Box
- 1 x Cylinder Head Gasket (11141-94720)
Installation Notes
- Disconnect the battery and completely drain the engine's cooling system.
- Remove the engine cover and any components obstructing access to the cylinder head, such as ignition coils or wiring harnesses.
- Carefully loosen and remove the cylinder head bolts following the reverse of the manufacturer's specified tightening sequence to prevent head warpage.
- Lift the cylinder head straight up from the engine block and set it aside. Remove the old head gasket.
- Thoroughly clean both the cylinder head and engine block mating surfaces. Ensure all old gasket material, sealant, and debris are removed.
- Position the new cylinder head gasket on the engine block, aligning it with the dowel pins. Do not use sealant.
- Carefully place the cylinder head back onto the block.
- Lightly oil the threads of the new head bolts and install them finger-tight.
- Torque the head bolts to the manufacturer's specified values using the correct sequence, typically in multiple stages. This is critical for a proper seal.
- Reinstall all components that were previously removed.
- Refill the cooling system with the appropriate coolant mixture.
- Reconnect the battery, start the engine, and carefully inspect for any coolant, fuel, or exhaust leaks around the head.
Troubleshooting & FAQ
How do I know if my cylinder head gasket is failing?
Common signs of a blown head gasket include persistent engine overheating, a loss of power or compression, milky or discolored engine oil (resembling a milkshake), and excessive white smoke from the exhaust after the engine has warmed up.
Is this gasket compatible with all DT55/DT65 models?
This gasket is specifically for the 3-cylinder, 2-stroke versions of the Suzuki DT55 and DT65 from model years 1988 through 1999. Always confirm your engine's specifications before purchasing.
Do I need to use gasket sealant during installation?
No. This multi-layer composite gasket is designed to be installed dry. Applying sealants can interfere with its ability to create a proper seal and may cause premature failure.
What torque specifications should I use for the head bolts?
Torque specifications and the tightening sequence are critical and model-specific. You must consult the official service manual for your exact Suzuki engine model to ensure a reliable and safe installation.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
