Drain Plug Gasket – Fits Suzuki DF25-350 Marine Outboards (Replaces 09168-12012)
Drain Plug Gasket – Fits Suzuki DF25-350 Marine Outboards (Replaces 09168-12012) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Drain Plug Gasket – Fits Suzuki DF25-350 Marine Outboards (Replaces...
Product Details

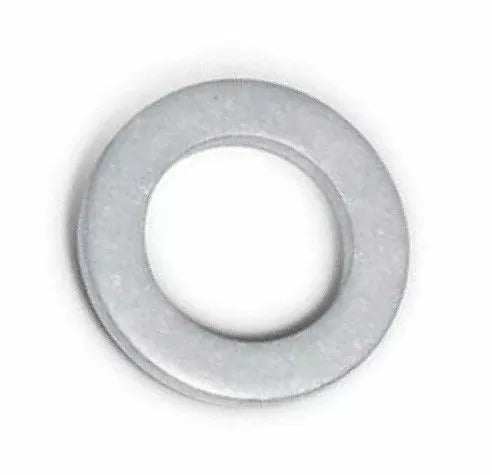

This Drain Plug Gasket – Fits Suzuki DF25-350 Marine Outboards (Replaces 09168-12012) provides a reliable seal for the engine oil drain plug on a wide range of Suzuki 4-stroke outboard motors from 25 HP to 350 HP (2006–present). It is designed as a crucial replacement crush washer to prevent oil leaks after routine maintenance.
It serves as a direct interchange for Suzuki part numbers 09168-12012, 09168-12012-000, and 09168-12017, as well as aftermarket equivalents from Sierra, Mallory, GLM, and WSM.
- Installs on the engine oil drain plug.
- Engineered from durable stainless steel to ensure a tight seal.
- Suzuki recommends replacing this gasket at every 100-hour service interval to maintain performance and prevent leaks.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09168-12012 |
| Suzuki | 09168-12012-000 |
| Suzuki | 09168-12017 |
| Sierra | 18-0902 |
| Mallory | 9-60104 |
| GLM | 31200 |
| Easterner | C14405 |
| WSM | 607-12 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF25 | 25 | 4-Stroke | 2006+ | 09168-12012 | |
| Suzuki | DF30 | 30 | 4-Stroke | 2006+ | 09168-12012 | |
| Suzuki | DF40 | 40 | 4-Stroke | Late 2006-2010 | 09168-12012 | |
| Suzuki | DF40A | 40 | 4-Stroke | 2010+ | 09168-12012 | |
| Suzuki | DF50 | 50 | 4-Stroke | Late 2006-2010 | 09168-12012 | |
| Suzuki | DF50A | 50 | 4-Stroke | 2010+ | 09168-12012 | |
| Suzuki | DF50AV | 50 | 4-Stroke | 2014+ | 09168-12012 | |
| Suzuki | DF60 | 60 | 4-Stroke | 2007+, 2014+ | 09168-12012 | |
| Suzuki | DF60A | 60 | 4-Stroke | 2010+ | 09168-12012 | |
| Suzuki | DF60AV | 60 | 4-Stroke | 2014+ | 09168-12012 | |
| Suzuki | DF70 | 70 | 4-Stroke | 2007+ | 09168-12012 | |
| Suzuki | DF70A | 70 | 4-Stroke | 2009+ | 09168-12012 | |
| Suzuki | DF80A | 80 | 4-Stroke | 2009+ | 09168-12012 | |
| Suzuki | DF90A | 90 | 4-Stroke | 2009+ | 09168-12012 | |
| Suzuki | DF115 | 115 | 4-Stroke | 2010–2012 | 09168-12012 | |
| Suzuki | DF115A | 115 | 4-Stroke | 2013+ | 09168-12012 | |
| Suzuki | DF115SS | 115 | 4-Stroke | 2013+ | 09168-12012 | |
| Suzuki | DF140 | 140 | 4-Stroke | 2010–2012 | 09168-12012 | |
| Suzuki | DF140A | 140 | 4-Stroke | 2013+ | 09168-12012 | |
| Suzuki | DF150 | 150 | 4-Stroke | 2006+ | 09168-12012 | |
| Suzuki | DF150A | 150 | 4-Stroke | 2016+ | 09168-12012 | |
| Suzuki | DF150SS | 150 | 4-Stroke | 2006+ | 09168-12012 | |
| Suzuki | DF175 | 175 | 4-Stroke | 2006+ | 09168-12012 | |
| Suzuki | DF175A | 175 | 4-Stroke | 2016+ | 09168-12012 | |
| Suzuki | DF200 | 200 | 4-Stroke | 2006+ | 09168-12012 | |
| Suzuki | DF200A | 200 | 4-Stroke | 2016+ | 09168-12012 | |
| Suzuki | DF225 | 225 | 4-Stroke | 2011+ | 09168-12012 | V6 Models |
| Suzuki | DF250 | 250 | 4-Stroke | 2011+ | 09168-12012 | V6 Models |
| Suzuki | DF250AP | 250 | 4-Stroke | 2011+ | 09168-12012 | |
| Suzuki | DF250SS | 250 | 4-Stroke | 2011+ | 09168-12012 | |
| Suzuki | DF300A | 300 | 4-Stroke | 2011+ | 09168-12012 | |
| Suzuki | DF300AP | 300 | 4-Stroke | 2011+ | 09168-12012 | |
| Suzuki | DF300B | 300 | 4-Stroke | 2017+ | 09168-12012 | |
| Suzuki | DF350A | 350 | 4-Stroke | 2017+ | 09168-12012 |
Technical Specs
- Product Type
- Oil Drain Plug Gasket/Crush Washer
- Installation
- Engine Oil Drain Plug
- Material
- Metal/Stainless Steel
- Dimensions
- 12.5 mm ID × 20 mm OD × 2.5 mm Thickness
- Thread Size
- Fits M12 drain plugs
- Package Dimensions
- 6.0 in (L) x 4.0 in (W) x 0.2 in (H)
What’s in the Box
- 15 x Drain Plug Gasket (09168-12012)
Installation Notes
- Position a suitable oil drain pan under the engine's lower unit.
- Remove the engine oil drain plug using the appropriate socket or wrench. Allow the old oil to drain completely.
- Remove and discard the old drain plug gasket. Clean any residue from the plug and the sealing surface on the engine.
- Place the new gasket over the drain plug's threads.
- Reinstall the drain plug by hand to avoid cross-threading, then tighten it to the manufacturer's specified torque. Do not overtighten.
- Refill the engine with the correct type and amount of new outboard oil.
- Run the engine for a few minutes and check the drain plug for any signs of leaks.
Troubleshooting & FAQ
How often should I replace this drain plug gasket?
For optimal performance and to prevent oil leaks, Suzuki recommends replacing the engine oil drain plug gasket during every 100-hour service interval or each time you perform an oil change.
What are the signs of a failing drain plug gasket?
The most common sign of a worn or improperly installed gasket is a visible oil leak or drip from the engine oil drain plug. You may also notice a lower-than-normal oil level on your dipstick. Always replace the gasket during an oil change to ensure a proper seal.
Will this gasket fit my specific outboard model?
This gasket is designed for a wide range of Suzuki outboards from 25 to 350 HP, manufactured from 2006 to the present. Please review the detailed "Engine & Model Compatibility" table on this page to confirm a match for your specific model and year.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
