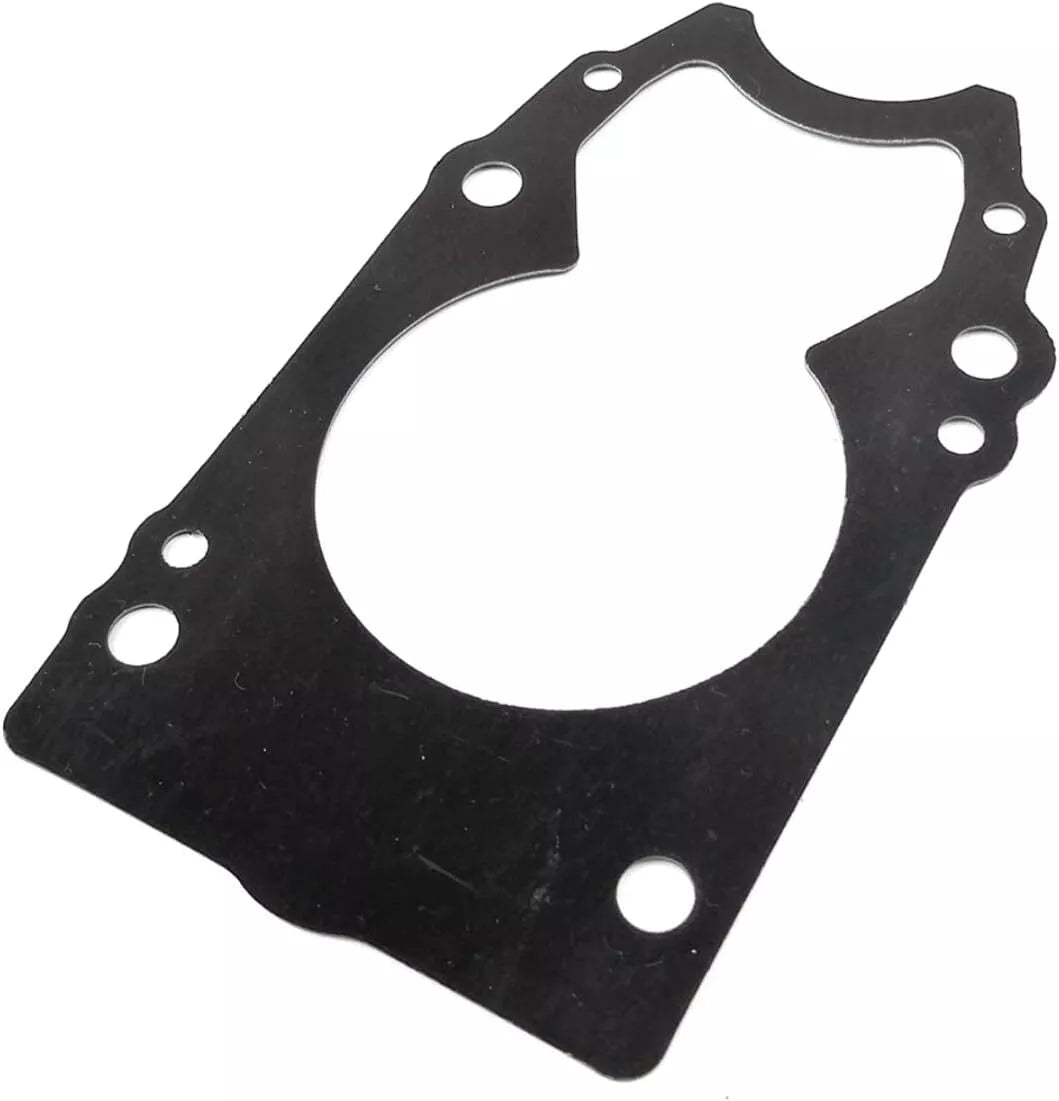

Gasket, Pump Case Panel – Fits Suzuki DF200 / DF225 / DF250 / DF300 Series (Replaces 17472-98J00)
Gasket, Pump Case Panel – Fits Suzuki DF200 / DF225 / DF250 / DF300 Series (Replaces 17472-98J00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Gasket, Pump Case Panel – Fits Suzuki DF200 / DF225 / DF250 / DF300...
Product Details
This is a high-quality aftermarket Gasket, Pump Case Panel – Fits Suzuki DF200 / DF225 / DF250 / DF300 Series, engineered for Suzuki 4-Stroke outboard motors from 200 to 350 HP (DF200, DF225, DF250, DF300, DF350 series), model years 2004 to current. It provides a reliable seal for the water pump assembly.
This part serves as a direct replacement for Suzuki part numbers 17472-98J00 and 17472-98J00-000, and is an interchange for Sierra 18-0651.
- Installation Location: Mounts between the water pump case and its corresponding panel.
- Material: Constructed from durable, high-grade gasket material to ensure a tight seal.
- Function: Critical for preventing leaks and maintaining pressure within the engine's cooling system.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 17472-98J00 |
| Suzuki | 17472-98J00-000 |
| Sierra | 18-0651 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This gasket is designed for the following Suzuki outboard models:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Suzuki | DF200 | 200 | 4-Stroke | 2004 & Up | 17472-98J00 |
| Suzuki | DF225 | 225 | 4-Stroke | 2004 & Up | 17472-98J00 |
| Suzuki | DF250 | 250 | 4-Stroke | 2004–2015 | 17472-98J00 |
| Suzuki | DF250AP | 250 | 4-Stroke | 2013 & Up | 17472-98J00 |
| Suzuki | DF250SS | 250 | 4-Stroke | 2008 & Up | 17472-98J00 |
| Suzuki | DF300 | 300 | 4-Stroke | 2007–2015 | 17472-98J00 |
| Suzuki | DF300AP | 300 | 4-Stroke | 2012 & Up | 17472-98J00 |
| Suzuki | DF300AP-T/Z | 300 | 4-Stroke | 2007–2012 | 17472-98J00 |
| Suzuki | DF300B | 300 | 4-Stroke | 2017 & Up | 17472-98J00 |
| Suzuki | DF350A | 350 | 4-Stroke | 2017 & Up | 17472-98J00 |
Technical Specs
- Product Type
- Water Pump Case Panel Gasket
- Installation
- Between pump case and panel
- Housing Material
- Gasket Material
- Housing Color
- Black/Gray
- Dimensions
- 6.0" H x 9.31" W x 0.25" L
- Weight
- 0.02 kg (0.044 lbs)
- Fitting Type
- Direct Fit
- Other Technical Attributes
- Water pump sealing gasket
What’s in the Box
- 1 x Gasket, Pump Case Panel (17472-98J00)
Installation Notes
- Before starting, disconnect the battery and allow the engine to cool completely.
- Carefully remove the lower unit from the outboard motor assembly.
- Disassemble the water pump housing, paying close attention to the order of all components.
- Remove the old pump case panel gasket. Thoroughly clean any residue from both mating surfaces to ensure a proper seal.
- Position the new gasket between the pump case and its panel, verifying correct alignment.
- Reassemble the water pump housing and re-install the lower unit according to manufacturer specifications.
- Reconnect the battery, start the engine, and check for a strong, steady water stream from the tell-tale outlet.
Troubleshooting & FAQ
How do I know if this gasket fits my Suzuki outboard?
This gasket is designed for a specific range of Suzuki DF series engines (200–350 HP, 2004 and newer). The best way to confirm fitment is to check your engine's model and year against the compatibility table on this page. Verifying that your existing part number matches a cross-reference number (like 17472-98J00) is also reliable.
What are the signs of a failing water pump gasket?
A worn gasket can cause a coolant leak, leading to engine overheating. Common symptoms include a weak or non-existent water stream from the "tell-tale" outlet, engine temperature alarms, or visible water leaking from the pump housing area.
How often should this gasket be replaced?
It is recommended to replace this gasket whenever you service the water pump impeller, typically every 100-200 operating hours or every 1-2 years, whichever comes first. Proactive replacement during routine maintenance helps prevent unexpected cooling system failures.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused T& in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
