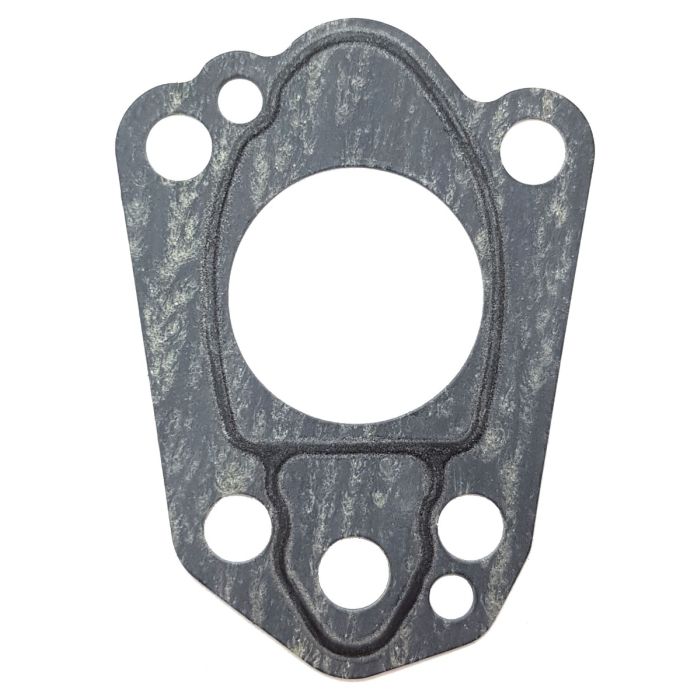

Pump Case Panel Gasket – Fits Suzuki DF2.5 (Replaces 17472-97JL0)
Product Details
This replacement Pump Case Panel Gasket is designed for Suzuki 2.5HP 4-stroke outboard motors manufactured from 2012 to the current model year. It ensures a proper seal within the water pump assembly, which is critical for maintaining correct engine temperature and performance.
It is a direct replacement for Suzuki OEM part numbers 17472-97JL0 and the superseded part 17472-97J00.
- Installs as a direct replacement for the original part.
- Engineered as a crucial component for the water pump assembly.
- Made from durable gasket materials to ensure a reliable seal.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Suzuki | 17472-97J00 | 17472-97JL0 | Older version |
| Suzuki | 17472-97JL0 | Current part number |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Fitment is for specific Suzuki DF2.5 models. Verify your part number or engine year range before ordering.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF2.5 | 2.5 | 4-Stroke | 2012–Current | 17472-97JL0 | Current part number |
| Suzuki | DF2.5 | 2.5 | 4-Stroke | 2006–2011 | 17472-97J00 | Superseded by 17472-97JL0 |
Technical Specs
- Product Type
- Pump Case Panel Gasket
- Installation
- Direct replacement
- Housing Material
- Gasket material
- Dimensions
- 7.0 in L x 5.0 in W x 0.1 in H
- Other Technical Attributes
- Used with Suzuki water pump assembly
What’s in the Box
- 1 x Pump Case Panel Gasket (17472-97JL0)
Installation Notes
- Ensure the engine is off and cool. Disconnect the battery.
- Remove the lower unit from the outboard motor.
- Unbolt and detach the water pump housing to access the old gasket.
- Carefully remove the old pump case panel gasket.
- Thoroughly clean the mating surfaces, ensuring they are free from any old gasket residue or debris.
- Position the new gasket correctly onto the clean surface.
- Reinstall the water pump housing, tightening the bolts to the manufacturer's specified torque.
- Reattach the lower unit to the engine and test for proper water circulation in a suitable environment.
Troubleshooting & FAQ
How do I know if this gasket fits my Suzuki DF2.5?
This gasket is for Suzuki DF2.5 models from 2012-Current, which use part number 17472-97JL0. It also replaces the older part 17472-97J00 used on 2006–2011 models. Always verify against your existing part number if possible.
What are the signs of a failed pump case panel gasket?
A failed gasket can cause water leaks from the pump assembly, leading to engine overheating or a weak or non-existent water stream from the "tell-tale" outlet. This indicates poor water circulation and requires immediate attention.
Can I reuse my old gasket after inspection?
No. Gaskets are designed for a single use. They compress to create a seal and will not provide a reliable seal if re-installed. Always use a new gasket when servicing the water pump.
What is the difference between part 17472-97JL0 and 17472-97J00?
17472-97JL0 is the current, updated OEM part number from Suzuki. It directly supersedes the older part, 17472-97J00, and is the correct replacement for all specified model years.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
