Water Pump Case Panel Gasket – Fits Suzuki DT40-DT65 Outboards (Rep...
Product Details

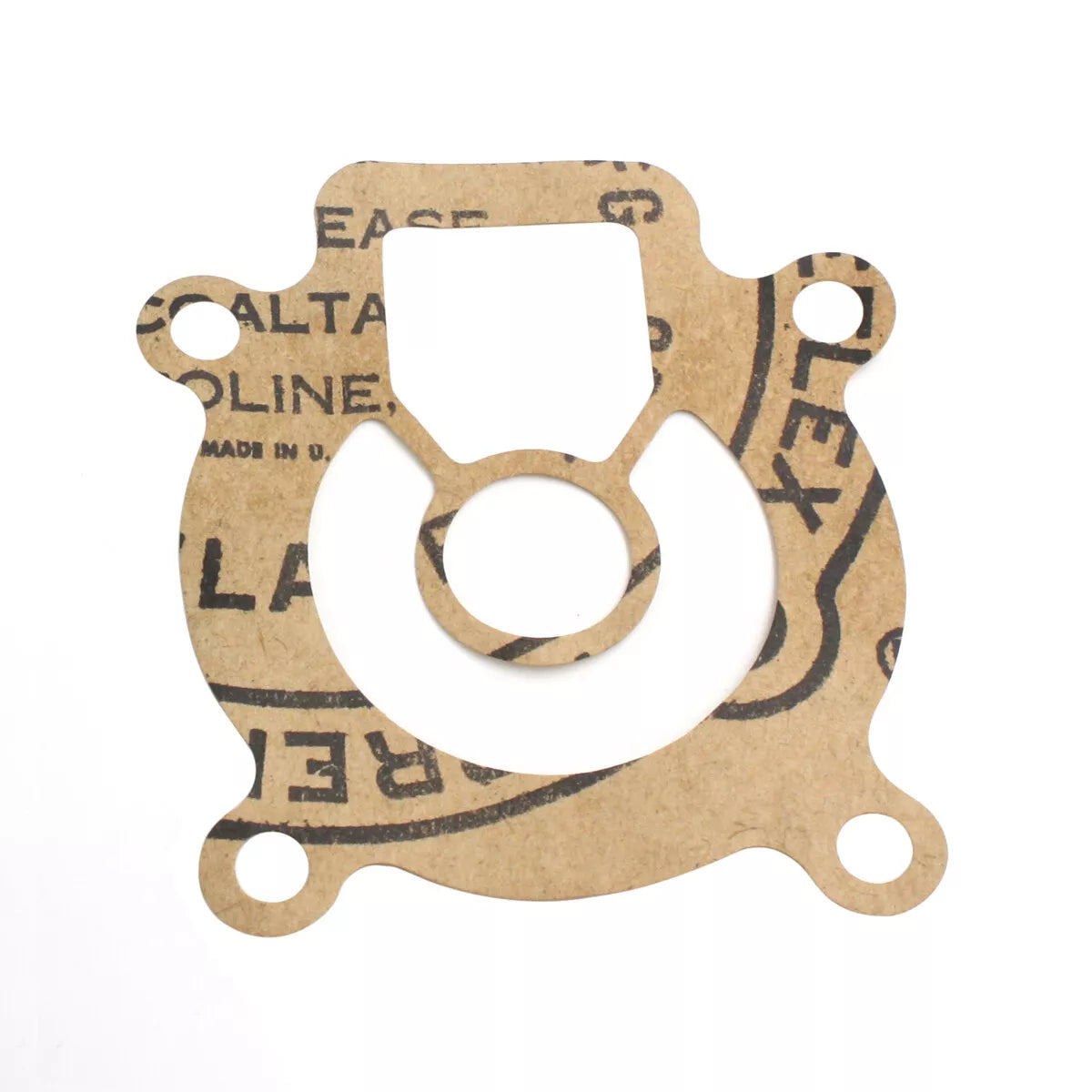

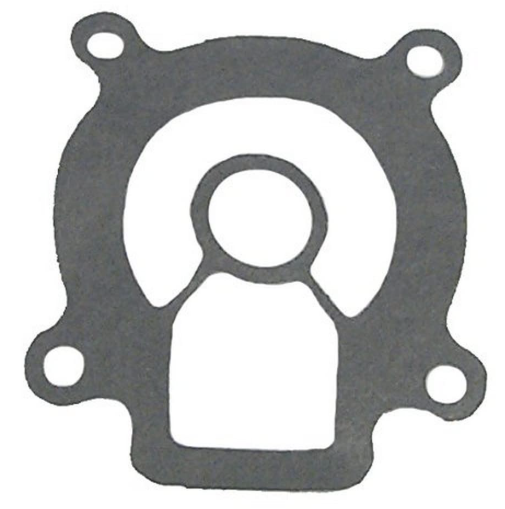

This high-quality aftermarket Water Pump Case Panel Gasket creates a crucial seal between the water pump plate and the driveshaft housing. It is designed specifically for Suzuki 2-stroke outboard motors from 40 to 65 HP, including the DT40, DT50, DT55, DT60, and DT65 series manufactured between 1985 and 1997.
This gasket serves as a direct replacement for Suzuki part numbers 17472-95310 and 17472-95300 (superseded), as well as Sierra part 18-0460, ensuring a perfect fit and reliable performance.
- Installs between the water pump plate and a driveshaft housing to prevent water leaks.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki | 17472-95310 | Current OEM Part Number |
| Sierra | 18-0460 | Aftermarket Interchange |
| Suzuki | 17472-95300 | Superseded OEM Part Number |
Engine & Model Compatibility
Confirm your engine model and year in the table below. This gasket fits a range of Suzuki 2-stroke outboard motors produced between 1985 and 1997, plus specific commercial models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT40 | 40 HP | 2-Stroke | 1985–1997 | 17472-95310 | Replaces 17472-95300 |
| Suzuki | DT50 | 50 HP | 2-Stroke | 1985–1997 | 17472-95310 | Replaces 17472-95300 |
| Suzuki | DT55 | 55 HP | 2-Stroke | 1985–1997 | 17472-95310 | Replaces 17472-95300 |
| Suzuki | DT60 | 60 HP | 2-Stroke | 1985–1997 | 17472-95310 | Replaces 17472-95300 |
| Suzuki | DT65 | 65 HP | 2-Stroke | 1985–1997 | 17472-95310 | Replaces 17472-95300 |
| Suzuki | PU55 | 55 HP | 2-Stroke | 17472-95310 | Commercial/utility model |
Technical Specs
- Product Type
- Water Pump Case Panel Gasket
- Installation Location
- Between water pump plate and driveshaft housing
- Compatible Engines
- Suzuki 2-Stroke DT40-DT65 Outboards
- Product Dimensions
- 7.13" L x 6.0" W x 1.13" H
What’s in the Box
- 1 x Gasket, Water Pump Plate (Replaces Suzuki 17472-95310)
Installation Notes
- For safety, disconnect the battery and remove the propeller.
- Drain the gear lube from the lower unit.
- Remove the lower unit (gearcase) from the outboard's driveshaft housing.
- Unbolt and lift the water pump housing to access the internal components.
- Remove the old impeller, wear plate, and all existing gaskets, noting the orientation of each part.
- Thoroughly clean all mating surfaces, ensuring they are free of old gasket material and corrosion.
- Place the new Water Pump Case Panel Gasket onto the driveshaft housing surface.
- Install the water pump plate over the new gasket, ensuring alignment.
- Reassemble the rest of the water pump with any other new components (e.g., impeller, wear plate).
- Carefully reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are correctly aligned.
- Refill the lower unit with fresh marine gear lube to the proper level.
- Once fully assembled, test the engine in the water to confirm strong water flow from the tell-tale outlet.
Troubleshooting & FAQ
How do I know if this gasket fits my Suzuki engine?
This gasket is specifically made for Suzuki 2-Stroke models including the DT40, DT50, DT55, DT60, DT65, and the commercial PU55, primarily from years 1985–1997. Please check the compatibility table on this page against your engine's model and serial number to ensure a correct match.
Where exactly does this gasket get installed?
This particular gasket creates a seal between the water pump plate and the driveshaft housing. It's a critical component located at the base of the water pump assembly inside the lower unit.
What are the signs of a failing water pump gasket?
Common symptoms include the engine overheating at low or high speeds, a weak or intermittent water stream from the "telltale" water indicator outlet, or evidence of water leaking from the seam where the lower unit meets the midsection.
Should I use sealant or adhesive with this gasket?
No, this gasket is designed to be installed dry. Applying sealant can cause it to squeeze out into water passages, leading to blockages and overheating. Ensure both metal surfaces are clean and smooth before installation.
How often should this gasket be replaced?
It is strongly recommended to replace this gasket any time you service the water pump. As a general rule, the entire water pump service, including the impeller and all gaskets, should be performed every 1-2 years or 100-200 hours of operation.
Is this part the same as Suzuki part 17472-95300?
Yes. This product is a direct replacement for part number 17472-95310, which itself superseded the older part number 17472-95300. It is the correct, updated component.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
