Suzuki Fuel Connector Engine End 5/16" - Fits Suzuki Outboard Motors (Replaces GS31071)
Suzuki Fuel Connector Engine End 5/16" - Fits Suzuki Outboard Motors (Replaces GS31071) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Suzuki Fuel Connector Engine End 5/16" - Fits Suzuki Outboard ...
Product Details

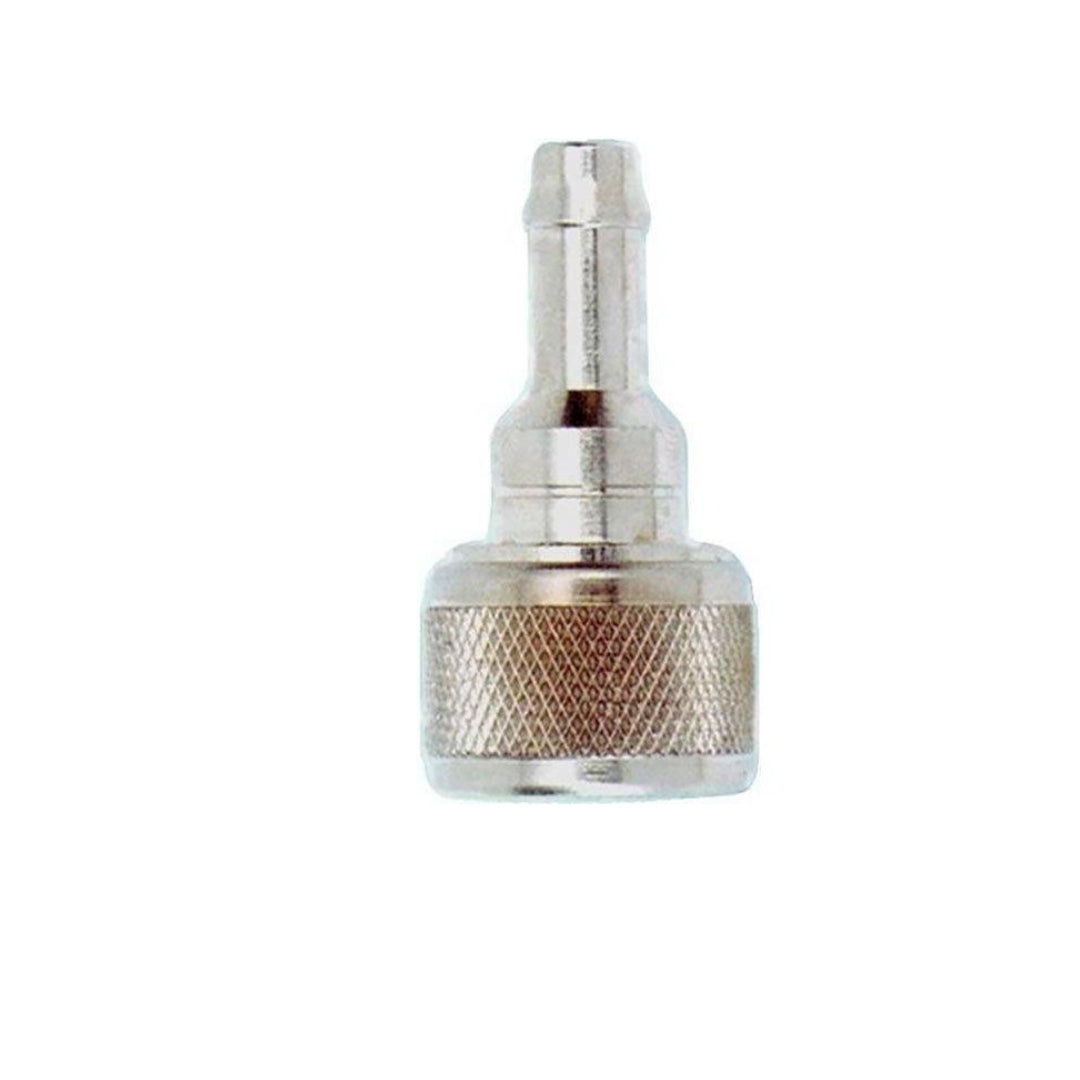

This Suzuki Fuel Connector Engine End 5/16" is designed for a wide range of Suzuki outboard motors from 3.5HP to 140HP (both 2-Stroke and 4-Stroke models). It provides a secure, reliable engine-end connection for 5/16" (8mm) fuel hoses, ensuring proper fuel flow from the line to the engine.
It serves as a direct replacement for Suzuki part number GS31071 and Sierra 18-80425.
- Provides a secure engine-end connection for 5/16" (8mm) fuel lines.
- Constructed from high-quality brass for durability and corrosion resistance.
- Fits a broad range of Suzuki 2-Stroke and 4-Stroke outboard models.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | GS31071 |
| Sierra | 18-80425 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This part is known to fit the following Suzuki outboard engine series.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| Suzuki | DT Series | 3.5-140 | 2-Stroke | GS31071 |
| Suzuki | DF Series | 3.5-140 | 4-Stroke | GS31071 |
Technical Specs
- Product Type
- Fuel Line Connector
- Installation
- Engine End
- Fuel Type
- Gasoline
- Connection
- 5/16" (8mm) Hose Barb
- Housing Material
- Brass
- Housing Color
- Metallic (Brass)
- Dimensions
- Height: 2.5cm, Width: 9.5cm, Length: 13.5cm
- Weight
- 0.06kg (0.13 lbs)
- Fitting Type
- Socket/Female
- Thread Size
- 8mm
- Other Technical Attributes
- Secure fit design for reliable connection
What’s in the Box
- 1 x Suzuki Hose Connector-Engine End 5/16" (GS31071)
Installation Notes
- Ensure the engine is off, cool, and disconnected from the battery.
- Safely relieve any pressure from the fuel system.
- Place a rag under the connection point to catch any residual fuel.
- Carefully disconnect the old fuel connector from the engine and fuel hose.
- Inspect the fuel hose for cracks or wear; replace if needed.
- Firmly attach the new connector to the 5/16" fuel hose.
- Securely click the new connector onto the engine's fuel inlet port.
- Reconnect the battery, prime the fuel system, and meticulously check for leaks before starting the engine.
Troubleshooting & FAQ
How do I know if this connector fits my Suzuki motor?
This connector is designed for a wide range of Suzuki 3.5HP to 140HP outboard motors (both 2-Stroke and 4-Stroke) that use a 5/16" (8mm) fuel hose. Please verify your engine's requirements and cross-reference the OEM part number GS31071.
What are the signs of a failing fuel connector?
Common signs include fuel leaks at the connection point, difficulty starting the engine, stalling, or a noticeable smell of gasoline around the motor. A loose or cracked connector should be replaced immediately.
Can I install this myself?
Yes, installation is straightforward for those with basic mechanical skills. However, as it involves the fuel system, we recommend professional installation if you are unsure. Always ensure a secure, leak-free connection.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
