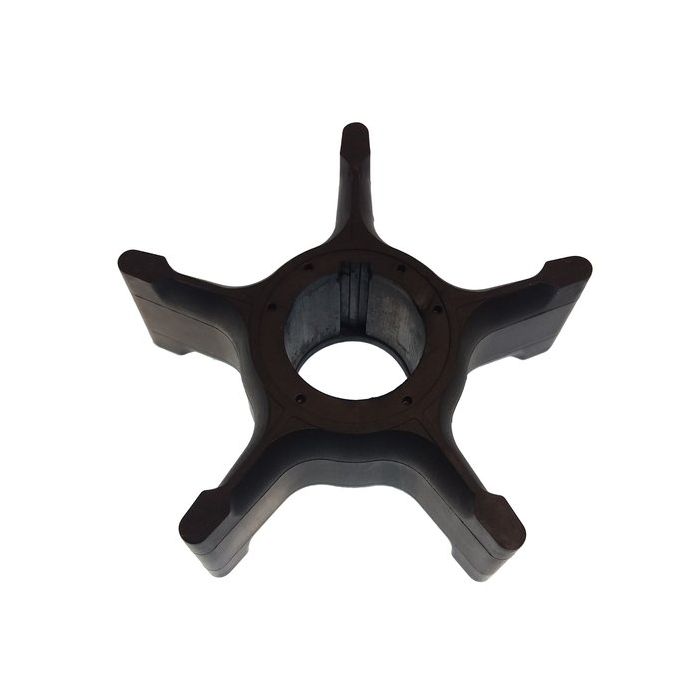

Water Pump Impeller – Fits Suzuki 75–225 HP Outboards (Replaces 17461-90J01, 17461-90J00)
Water Pump Impeller – Fits Suzuki 75–225 HP Outboards (Replaces 17461-90J01, 17461-90J00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller – Fits Suzuki 75–225 HP Outboards (Replaces 174...
Product Details
This aftermarket Water Pump Impeller – Fits Suzuki 75–225 HP Outboards (Replaces 17461-90J01, 17461-90J00) is designed for a broad range of Suzuki outboards. It fits 4-stroke models including the DF90, DF100, DF115, DF140, DF150, and DF175 from 2001 to current, as well as 2-stroke models like the DT115, DT140, DT150, DT175, DT200, and DT225 from 1981 to 2003.
This part serves as a direct replacement for Suzuki OEM part numbers 17461-90J01 and 17461-90J00, and is an interchange for Sierra 18-3023, Mallory 9-45503, GLM 89370, and EMP 47-09213.
- Installs as a direct replacement part.
- Engineered for use in gasoline-powered 2-stroke and 4-stroke outboards.
- Constructed from durable neoprene rubber for longevity.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Suzuki | 17461-90J00 | 17461-90J01 | Original OEM part number. |
| Suzuki | 17461-90J01 | Current OEM part number. | |
| Sierra | 18-3023 | Aftermarket equivalent. | |
| Mallory | 9-45503 | Aftermarket equivalent. | |
| GLM | 89370 | Aftermarket equivalent. | |
| EMP | 47-09213 | Aftermarket equivalent. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This impeller is designed for a wide range of Suzuki 2-stroke and 4-stroke outboard engines.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF90 | 90 | 4-Stroke | 2001–current | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DF100 | 100 | 4-Stroke | 2001–current | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DF115 | 115 | 4-Stroke | 2001–current | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DF140 | 140 | 4-Stroke | 2001–current | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DF150 | 150 | 4-Stroke | 2001–current | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DF175 | 175 | 4-Stroke | 2001–current | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DT115 | 115 | 2-Stroke | 1981–2001 | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DT140/PU140 | 140 | 2-Stroke | 1981–2001 | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DT150/DT150G/DT150EFI/DT150S/DT150SS/DT150STC | 150 | 2-Stroke | 1986–2003 | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DT175 | 175 | 2-Stroke | 1987–1992 | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DT200/DT200G/DT200EFI/DT200S | 200 | 2-Stroke | 1986–2001 | 17461-90J01 | Superseded 17461-90J00 |
| Suzuki | DT225/DT225G | 225 | 2-Stroke | 1990–2003 | 17461-90J01 | Superseded 17461-90J00 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct Replacement
- Fuel Type
- Gasoline, 2-Stroke & 4-Stroke
- Housing Material
- Rubber (Neoprene)
- Housing Color
- Black
- Product Dimensions
- Height: 4.0 in; Width: 10.0 in; Length: 13.0 in;
- Weight
- 0.07 kg (2.53 oz)
- Warranty
- 1 Year
- Other Technical Attributes
- Key included with some aftermarket versions
What’s in the Box
- 1 x Water Pump Impeller (17461-90J01)
Installation Notes
- Disconnect the battery and shift the outboard into neutral.
- Remove the gearcase-to-exhaust housing bolts. Be prepared for the lower unit to drop.
- Carefully lower the gearcase away from the engine.
- Locate and unbolt the water pump housing cover.
- Remove the old impeller, noting its rotational direction.
- Clean the housing interior and install the new impeller, rotating the driveshaft in its normal direction.
- Apply a light coat of marine grease to the new gaskets and reassemble the pump housing.
- Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are correctly aligned. Secure all bolts to the manufacturer's torque specs.
- Reconnect the battery and test the engine with a water supply, checking for a strong "telltale" stream.
Troubleshooting & FAQ
How do I know if this impeller fits my Suzuki outboard?
The best way to ensure correct fitment is to check your engine's model number and year against the compatibility table provided on this page. You can also cross-reference your existing part number with the numbers in our Part Number Matrix.
What are the signs of a failing water pump impeller?
Common symptoms include a weak or non-existent water stream from the "telltale" outlet, engine overheating alarms, and reduced engine performance. In severe cases, you may notice steam from the exhaust.
How often should the water pump impeller be replaced?
As a general maintenance guideline, most manufacturers recommend replacing the impeller every 1-2 years or every 100-200 hours of use, whichever comes first. Usage in saltwater or sandy/silty conditions may require more frequent changes.
Does this impeller come with a key?
This particular aftermarket part number does not specify the inclusion of a drive key. While some aftermarket kits bundle the key, the OEM part often does not. It is recommended to retain and reuse your original key if it is in good condition.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
