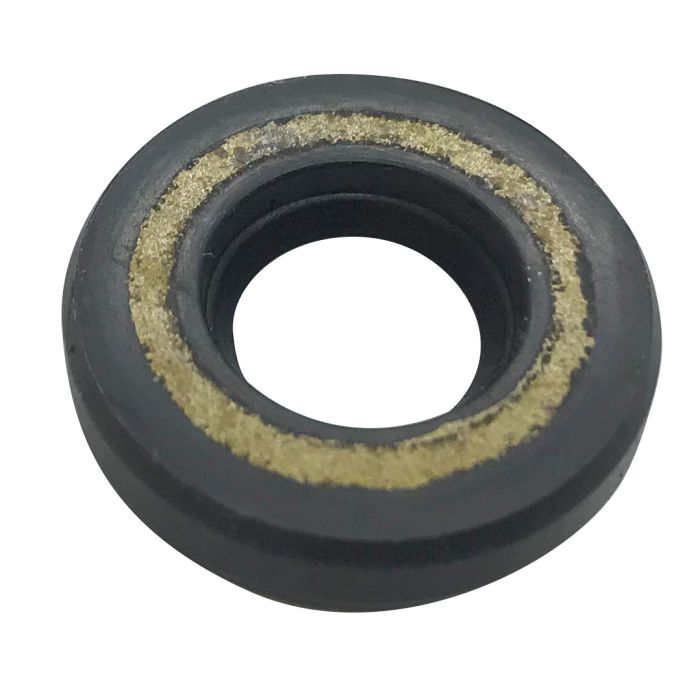

Oil Seal – Fits Suzuki 2.5–6 HP Outboards (Replaces 09282-10008)
Product Details
This replacement Oil Seal – Fits Suzuki 2.5–6 HP Outboards (Replaces 09282-10008) is engineered for a precise fit on a range of Suzuki and BRP/Johnson Evinrude models. It is compatible with Suzuki 4-stroke outboards from 2.5 to 6 HP (2001–2013) and 2-stroke outboards from 4 to 5 HP (1988–2002). It also serves as a replacement for select BRP/Johnson Evinrude models.
This component directly interchanges with Suzuki part numbers 09282-10008, 09282-10008-000, and 59293-91J00, as well as BRP/Johnson Evinrude 5030107.
- Installation Type: Shaft/Rotary Seal
- Housing: Durable rubber with a stainless steel garter spring for corrosion resistance.
- Seal Profile: SC (Single Lip Radial Seal) for effective sealing in rotary applications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09282-10008 |
| Suzuki | 09282-10008-000 |
| Suzuki | 59293-91J00 |
| BRP/Johnson Evinrude | 5030107 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki models, check your specific engine model and year range to ensure a proper fit.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF2.5 | 2.5 | 4-Stroke | 2006–2013 | 09282-10008 | |
| Suzuki | DF4 | 4 | 4-Stroke | 2002+ | 09282-10008 | |
| Suzuki | DF5 | 5 | 4-Stroke | 2002+ | 09282-10008 | |
| Suzuki | DF6 | 6 | 4-Stroke | 2002+ | 09282-10008 | |
| Suzuki | DT4/J4 | 4 | 2-Stroke | 1988–2002 | 09282-10008 | |
| Suzuki | DT5Y | 5 | 2-Stroke | 1988–2002 | 09282-10008 | |
| Suzuki | DT4K1 | 4 | 2-Stroke | 2001 | 09282-10008 |
Technical Specs
- Product Type
- Oil Seal
- Installation
- Shaft/Rotary Seal
- Housing Material
- Rubber with Stainless Steel Garter Spring
- Housing Color
- Black
- Dimensions
- 10 × 21 × 4.5 mm (0.39 × 0.83 × 0.18 in)
- Weight
- 0.05 lbs (0.023 kg)
- Fitting Type
- SC (Single Lip Radial Seal)
- Other Technical Attributes
- Single lip radial seal with single garter spring made of stainless steel
What’s in the Box
- 1 x Oil Seal (09282-10008)
Installation Notes
- Ensure the engine is off and the propeller is disconnected. Drain the gearcase or engine oil as required to access the seal.
- Carefully remove the old oil seal using a seal puller or flat-head screwdriver, taking care not to scratch the housing or shaft surfaces.
- Thoroughly clean the seal housing and the shaft, removing any old sealant, rust, or debris.
- Lightly lubricate the inner and outer surfaces of the new oil seal with fresh marine grease or the same type of oil it will be sealing.
- Position the new seal squarely over the bore. Use a seal driver or a socket with an outer diameter matching the seal's to gently and evenly tap it into place until it is fully seated.
- Reassemble all components in the reverse order of disassembly and refill with the correct type and amount of oil.
Troubleshooting & FAQ
How do I know if this oil seal fits my engine?
First, check the "Engine & Model Compatibility" table on this page. Compare your engine's brand, model, horsepower, and year against the listed compatible models. Second, cross-reference your existing part number with the "Part Number Matrix" to confirm it is a direct replacement.
What are the signs of a failing oil seal?
Common signs include visible oil leaks around the shaft where the seal is located, a noticeable drop in oil levels without other apparent causes, or oil contaminating areas where it shouldn't be (e.g., in the water, on the outside of the lower unit).
Is this a driveshaft or crankshaft seal?
This seal is typically used in various locations depending on the specific engine model, often on the driveshaft or propeller shaft within the lower unit (gearcase). Always consult your service manual to confirm the exact location and part number for your specific application.
What is the difference between a single lip (SC) and double lip (TC) seal?
This is an SC (Single Lip) seal, designed primarily to keep oil in. A TC (Double Lip) seal has a secondary "dust" lip that helps prevent external contaminants like water and dirt from entering. This SC seal is sufficient for its intended application as specified by the OEM.
How often should this seal be replaced?
Oil seals should be inspected during regular lower unit maintenance (e.g., water pump service) and replaced if they show signs of drying, cracking, or leaking. There is no fixed replacement interval; it is based on condition and service needs.
Can I install this seal myself?
While DIY installation is possible for those with mechanical experience and the right tools (like a seal puller and driver), professional installation is recommended to ensure the seal is seated correctly without damage, preventing premature failure and leaks.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
