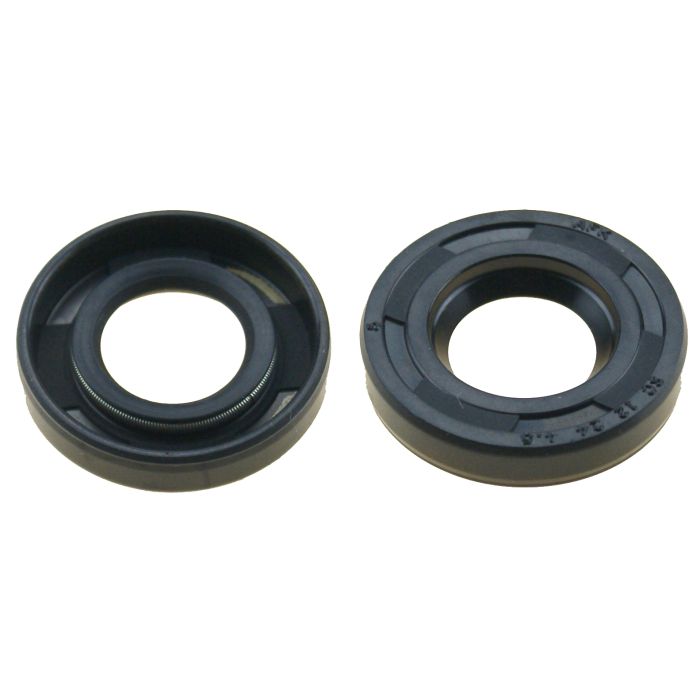

Oil Seal – Fits Suzuki Outboards DF2.5, DF4/5/6, DT4/5/8/9.9 (Replaces 09282-12008)
Oil Seal – Fits Suzuki Outboards DF2.5, DF4/5/6, DT4/5/8/9.9 (Replaces 09282-12008) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Oil Seal – Fits Suzuki Outboards DF2.5, DF4/5/6, DT4/5/8/9.9 (Repla...
Product Details
This replacement Oil Seal – Fits Suzuki Outboards DF2.5, DF4/5/6, DT4/5/8/9.9 (Replaces 09282-12008) is designed for a range of Suzuki engines. It is compatible with 2-stroke models including the DT4, DT5Y, DT8, and DT9.9C-JV series (1988–2002) as well as 4-stroke models DF2.5 (2012), DF4, DF5, and DF6 (2002–2012).
It serves as a direct interchange for Suzuki part numbers 09282-12008, 09282-12003, and 09282-12008-000, and also cross-references to BRP/Johnson/Evinrude part 5030108.
- Designed for gearcase installation on the propeller or driveshaft assembly.
- Constructed with marine-grade rubber and a stainless steel garter spring for durability in harsh saltwater environments.
- Profile Type SC ensures a reliable single-lip seal against oil and water.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki | 09282-12008 | Primary OEM Reference |
| Suzuki | 09282-12008-000 | Alternate OEM Code |
| Suzuki | 09282-12003 | Superseded by 09282-12008 |
| BRP (Johnson/Evinrude) | 5030108 | Interchange Part Number |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki Models: Check your engine series and production year range.
For Johnson/Evinrude Models: This part serves as a direct cross-reference, but specific model applications are not provided. Verify fitment against the OEM part number.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF2.5 | 2.5 | 4-Stroke | 2012 | 09282-12008 | |
| Suzuki | DTK1 | - | - | 2001 | 09282-12008 | |
| Suzuki | DF4/DF5/DF6 | 4-6 | 4-Stroke | 2002–2012 | 09282-12008 | Supersedes 09282-12003 |
| Suzuki | DT4/J4/DT5Y | 4-5 | 2-Stroke | 1988–2002 | 09282-12008 | Supersedes 09282-12003 |
| Suzuki | DT8/DT9.9C-JV | 8-9.9 | 2-Stroke | 1988–1997 | 09282-12008 | Supersedes 09282-12003 |
| BRP (Johnson/Evinrude) | - | - | - | - | 5030108 | Cross-reference to Suzuki 09282-12008 |
Technical Specs
- Product Type
- Oil Seal / Rotary Shaft Seal
- Installation Location
- Gearcase
- Dimensions
- 12 × 24 × 4.5 mm
- Profile Type
- SC (Single lip radial seal with garter spring)
- Material
- Marine-grade rubber with stainless steel spring
- Warranty
- 1 Year (Aftermarket)
What’s in the Box
- 1 x Oil Seal (Replaces 09282-12008)
Installation Notes
- Disconnect the battery and ensure the engine is secure before beginning work.
- Access the gearcase assembly according to your engine’s service manual.
- Carefully remove the old, worn, or damaged oil seal, taking care not to scratch the housing bore.
- Clean the seal bore thoroughly to remove any old sealant, oil, or debris.
- Lightly lubricate the new oil seal's inner and outer lips with marine-grade grease.
- Gently press the new seal into place using a seal driver or a socket of matching diameter, ensuring it is seated evenly and squarely.
- Reassemble the gearcase components, torqueing all fasteners to the manufacturer's specifications.
- After reassembly, check for leaks before returning the engine to service.
Troubleshooting & FAQ
How do I know if this oil seal fits my specific outboard model?
The surest way is to match your original part number to one listed in our Part Number Matrix. You can also consult the Engine & Model Compatibility table to find your model and year range. When in doubt, compare the dimensions (12 × 24 × 4.5 mm) to your old seal.
What are common signs that my gearcase oil seal is failing?
The most common indicators are visible gear oil leaking from around the propeller shaft area or discovering milky, water-contaminated oil during a gear lube change. Water intrusion can cause severe gearcase damage if not addressed.
What does the "SC" profile type mean?
"SC" refers to a standard single-lip seal design that includes a garter spring. The spring provides consistent radial force on the shaft to create a reliable seal, compensating for minor wear and thermal expansion. It is a common and effective design for marine applications.
What's the recommended replacement interval for a gearcase oil seal?
There is no fixed interval, but seals should be inspected for leaks during every gear lube service. It is highly recommended to replace the oil seals whenever the gearcase is disassembled for other service, such as water pump replacement or bearing work, as they are a critical and inexpensive wear item.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
