Product Details

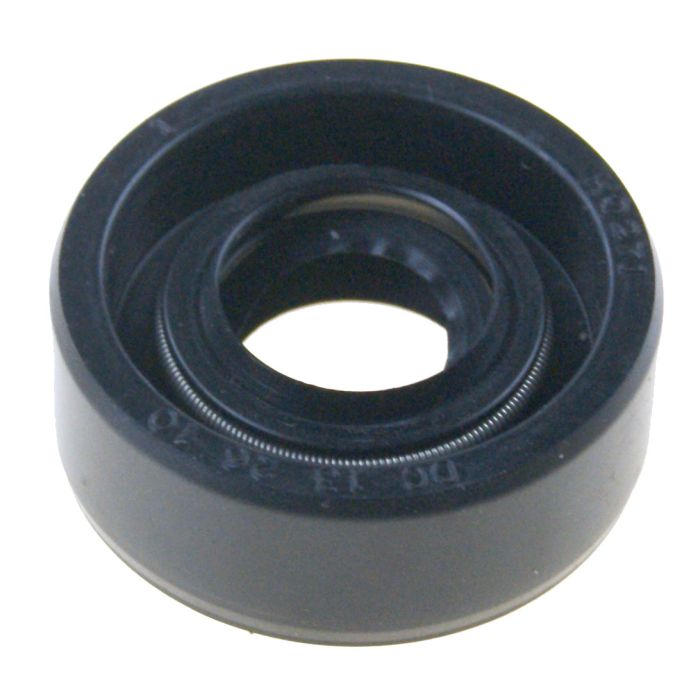

This Water Pump Oil Seal – Fits Suzuki Outboard 9.9HP/15HP is designed for a wide range of Suzuki 9.9HP and 15HP 2-Stroke & 4-Stroke outboard engines made between 1986 and 2011. It also serves as a cross-reference part for select BRP, Evinrude, and Johnson 9.9HP and 15HP models requiring part number 5033014.
It provides a direct replacement for Suzuki part numbers 09289-12003 and 09289-12003-000, and BRP interchange part 5033014.
- Engineered for a direct OEM replacement fit and function.
- Features a double-lip (DC) profile with integrated garter springs for a durable, reliable seal.
- Crucial for separating fluids and preventing leaks within the water pump assembly.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Suzuki | 09289-12003 |
| Suzuki | 09289-12003-000 |
| BRP | 5033014 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki models, please verify your engine's model, horsepower, and year range against the table to ensure correct fitment.
For BRP and Johnson models, this part cross-references to OEM #5033014 for specific 9.9HP and 15HP applications.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF9.9 | 9.9 | 4-Stroke | 1996–2003 | 09289-12003 | DF9.9, DF9.9T-K3 models |
| Suzuki | DF9.9 | 9.9 | 4-Stroke | 2004–2011 | 09289-12003 | DF9.9, DF9.9(R) models |
| Suzuki | DF15 | 15 | 4-Stroke | 1996–2003 | 09289-12003 | DF15T-K3 models |
| Suzuki | DF15 | 15 | 4-Stroke | 2004–2011 | 09289-12003 | DF15, DF15(R) models |
| Suzuki | DT9.9 | 9.9 | 2-Stroke | 1986–2000 | 09289-12003 | DT9.9K, DT9.9KGY models |
| Suzuki | DT9.9 | 9.9 | 2-Stroke | 2001–2004 | 09289-12003 | DT9.9 K1-K4 models |
| Suzuki | DT15 | 15 | 2-Stroke | 1986–2000 | 09289-12003 | DT15K, DT15KGY models |
| Suzuki | DT15 | 15 | 2-Stroke | 2001–2004 | 09289-12003 | DT15 K1-K4 models |
| Suzuki | DT15C | 15 | 2-Stroke | 1989–1997 | 09289-12003 |
Technical Specs
- Product Type
- Water Pump Oil Seal
- Installation
- Direct OEM replacement
- Dimensions
- 13 × 26 × 10 mm (shaft × external × thickness)
- Seal Profile
- DC (double lip with integrated springs)
- Housing Material
- Metal cage with rubber coating
- Seal Design
- Double primary sealing lip with integrated springs
- Application
- Separates fluids in water pump assembly
- Other Technical Attributes
- Rotary shaft seal for water pump assembly
What’s in the Box
- 1 × Oil Seal (Replaces 09289-12003)
Installation Notes
- Disconnect the battery and ensure the engine is cool before starting work.
- Remove the lower unit (gearcase) from the outboard motor.
- Disassemble the water pump housing to access the old oil seal.
- Carefully pry out the old seal, taking care not to scratch the housing or driveshaft.
- Thoroughly clean the seal seat and shaft surface to remove any old sealant or corrosion.
- Lightly lubricate the new seal's inner lip and outer diameter with marine-grade grease.
- Press the new seal squarely into position using a suitable socket or seal driver an an even press.
- Reassemble the water pump, install a new impeller, and attach the lower unit.
- Reconnect the battery, start the engine in water, and check for any leaks around the lower unit.
Troubleshooting & FAQ
How do I know if this oil seal is correct for my engine?
Cross-reference your original part number with our Part Number Matrix. Also, check the Engine & Model Compatibility table to ensure your specific engine model and year are listed. When in doubt, compare the listed dimensions (13 × 26 × 10 mm) to your existing seal.
What are the common signs of a failing water pump oil seal?
Signs of failure include water contaminating the gearcase oil (milky or frothy appearance), oil leaking from the water pump tell-tale, or visible damage and brittleness on the old seal during inspection.
How often should I replace this seal?
It is best practice to replace the water pump oil seal whenever you service the water pump impeller, typically every 1-2 years or 100-200 hours, depending on operating conditions (especially in saltwater).
Is any special tool required for installation?
While not always necessary, using a seal driver or a socket with a matching outer diameter is highly recommended to press the new seal in evenly without damaging it. Always lubricate the seal before installation.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
