Product Details
This Water Pump Impeller Kit – Fits Suzuki 5-15 HP 2-Stroke Outboards (Replaces 17400-98551, 17400-98550) provides reliable service for Suzuki 5–15 HP 2-Stroke outboards manufactured between 1983 and 2002. It is designed to fit a range of models including the DT5, DT6, DT8, DT9.9, DT15, and DT15C series.
It serves as a direct replacement for Suzuki part numbers 17400-98551 and 17400-98550, and interchanges with Sierra 18-3259 and 18-48317.
- Engineered for direct OEM-replacement installation.
- Neoprene impeller and stainless steel components ensure corrosion-resistant performance in marine environments.
- Includes the impeller, wear plate, gasket, and shaft key for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 17400-98551 |
| Suzuki | 17400-98550 |
| Sierra | 18-3259 |
| Sierra | 18-48317 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This kit is designed for specific Suzuki 2-stroke models. Please verify your engine details against the list below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT5 | 5 | 2-Stroke | 1983–2000 | 17400-98551 | Except 1992, 1996 models |
| Suzuki | DT6 | 6 | 2-Stroke | 1984–2002 | 17400-98551 | All models |
| Suzuki | DT8 | 8 | 2-Stroke | 1986–1997 | 17400-98551 | All models |
| Suzuki | DT9.9 | 9.9 | 2-Stroke | 1985–1987 | 17400-98551 | All models |
| Suzuki | DT15 | 15 | 2-Stroke | 1983–1988 | 17400-98551 | All models |
| Suzuki | DT15C | 15 | 2-Stroke | 1989–1997 | 17400-98551 | All models |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Direct OEM replacement
- Housing Material
- Neoprene (impeller), Stainless Steel (components)
- Dimensions
- 13.0 × 8.0 × 3.0 in (330.2 × 203.2 × 76.2 mm)
- Weight
- 0.45 kg (1 lb)
- Other Technical Attributes
- Corrosion-resistant construction

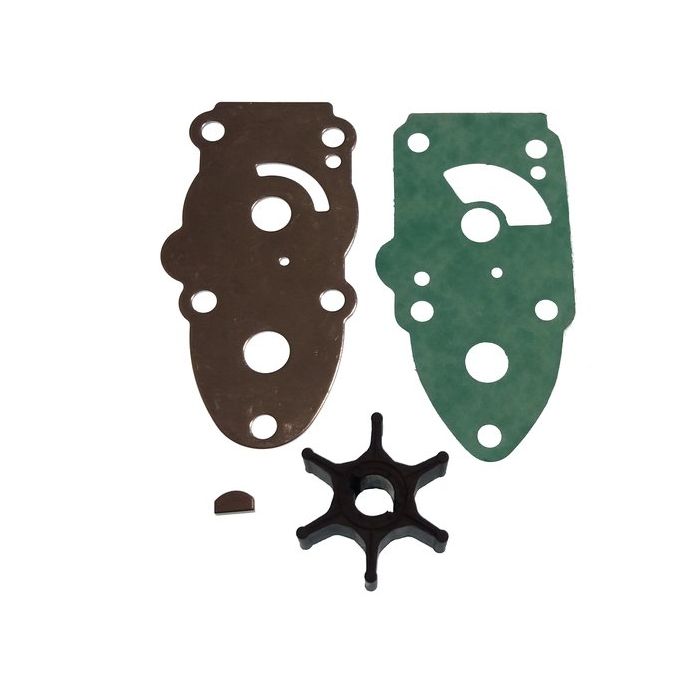

What’s in the Box
- 1 x Pump Wear Plate (17471-98503)
- 1 x Water Pump Impeller (17461-98503/17461-985M0)
- 1 x Impeller Shaft Key (09420-03002)
- 1 x Housing Gasket (17472-98503/17472-98502)
Installation Notes
- Disconnect the engine's battery and shift the outboard into neutral.
- Carefully remove the lower unit (gearcase) from the outboard's driveshaft housing.
- Unbolt and lift the water pump housing to access the impeller. Note component orientation for reassembly.
- Remove the old impeller, gasket, wear plate, and key. Clean all mating surfaces thoroughly.
- Install the new components from the kit in reverse order. Lightly grease the new impeller and housing interior.
- Reinstall the lower unit, ensuring the driveshaft and water tube align correctly. Test operation in water before use.
Troubleshooting & FAQ
How do I know if this kit fits my specific Suzuki outboard?
Check your model, horsepower, and year against the "Engine & Model Compatibility" table. If your model is listed and the year range matches, this kit is compatible. Always visually compare the parts to your old ones before installing.
What are the signs of a failing water pump impeller?
Common signs include the engine overheating, a weak or non-existent water stream from the "telltale" outlet, and a melted water pump housing.
How often should the water pump impeller be replaced?
As a preventative maintenance item, it's recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater).
Is this a complete kit for the job?
This kit includes the essential service components: the impeller, wear plate, housing gasket, and shaft key. Depending on your engine's condition, you may need additional seals or bolts, which are not included.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
