Product Details
This Water Pump Impeller Kit fits Suzuki 90HP, 115HP, and 140HP outboards (DF90, DF115, DF140) from 2001–2006. It is also compatible with select Johnson and Evinrude 4-stroke models from 2003–2006 that use Suzuki-built powerheads.
It serves as a direct replacement for OEM part numbers Suzuki 17400-90J20, Johnson/Evinrude 5033541, and Sierra 18-3258.
- Installs in the lower unit gearcase to restore cooling system performance.
- Complete service kit includes the impeller, wear plate, gasket, and drive key.
- Features a composite housing and clockwise rotation impeller design.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 17400-90J20 |
| Johnson/Evinrude/OMC | 5033541 |
| Sierra | 18-3258 |
Engine & Model Compatibility
Confirm your engine model and year in the table below.
For Suzuki models, this kit fits DF90, DF115, and DF140 series engines made between 2001 and 2005.
For Johnson/Evinrude models, this kit is for Suzuki-built 4-stroke engines manufactured for BRP between 2003 and 2006.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF90 | 90 | 4-Stroke | 2001–2005 | 17400-90J20 | |
| Suzuki | DF115 | 115 | 4-Stroke | 2001–2005 | 17400-90J20 | |
| Suzuki | DF140T | 140 | 4-Stroke | 2002–2005 | 17400-90J20 | |
| Suzuki | DF140Z | 140 | 4-Stroke | 2002–2005 | 17400-90J20 | |
| Johnson | J90 | 90 | 4-Stroke | 2003–2006 | 5033541 | Suzuki-built engines for BRP |
| Johnson | J115 | 115 | 4-Stroke | 2003–2006 | 5033541 | Suzuki-built engines for BRP |
| Johnson | J140 | 140 | 4-Stroke | 2003–2006 | 5033541 | Suzuki-built engines for BRP |
| Evinrude | BJ90 | 90 | 4-Stroke | 2003–2006 | 5033541 | Suzuki-built engines for BRP |
| Evinrude | BJ115 | 115 | 4-Stroke | 2003–2006 | 5033541 | Suzuki-built engines for BRP |
| Evinrude | BJ140 | 140 | 4-Stroke | 2003–2006 | 5033541 | Suzuki-built engines for BRP |
Technical Specs
- Product Type
- Water Pump Impeller Service Kit
- Installation
- Lower Unit / Gearcase
- Connection
- Direct Drive
- Housing Material
- Composite (Impeller), Metal (Plate)
- Housing Color
- Black
- Dimensions
- 15.0cm L x 13.0cm W x 7.0cm H
- Weight
- 0.18 kg (0.4 lb)
- Rotation
- Clockwise

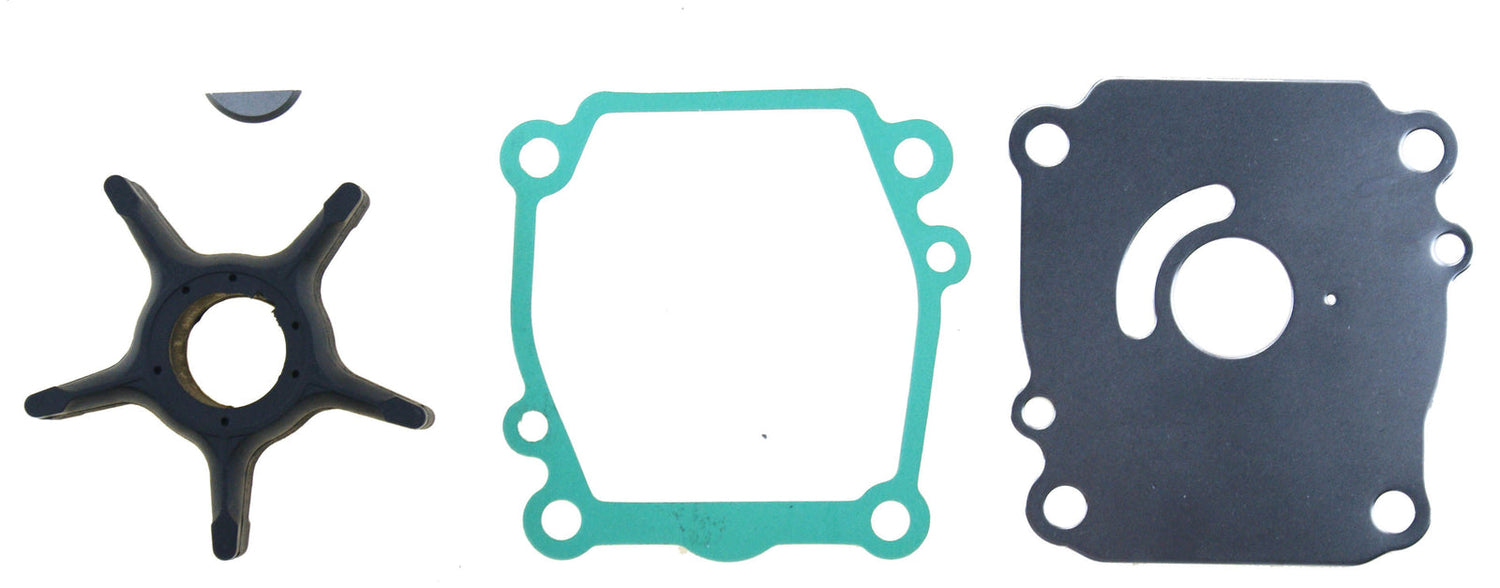

What’s in the Box
- 1 x Impeller (17461-90J00)
- 1 x Impeller Plate (17471-87E01)
- 1 x Impeller Key (09420-05006)
- 1 x Gasket (17472-87E10)
Installation Notes
- Disconnect the battery and remove the negative terminal.
- Place the outboard in neutral gear.
- Drain the gearcase oil into a suitable container.
- Remove the mounting bolts securing the lower unit (gearcase) to the driveshaft housing.
- Carefully lower and separate the gearcase from the upper housing.
- Unbolt and remove the water pump housing cover to access the impeller.
- Remove the old impeller, wear plate, and gasket. Note the direction of the old impeller fins.
- Clean all mating surfaces thoroughly, removing any old gasket material or debris.
- Install the new components in order: gasket, plate, impeller key, and then the impeller (rotating the driveshaft clockwise to seat the fins).
- Reinstall the water pump housing and torque bolts to manufacturer specifications.
- Reattach the lower unit to the engine, ensuring the driveshaft, shift shaft, and water tube are aligned.
- Refill the gearcase with fresh oil and test the engine in water, verifying a strong tell-tale stream.
Troubleshooting & FAQ
How do I know if this impeller kit fits my engine?
First, verify your engine's brand, model, and year against our compatibility table. Second, cross-reference your existing part number with those listed in the Part Number Matrix. If both match, the kit will fit.
What are the signs of a failing water pump impeller?
Common symptoms include the engine overheating at idle or low speeds, a water pressure alarm sounding, or a weak or non-existent water stream from the "telltale" outlet port. Visual inspection may reveal cracked, brittle, or broken impeller vanes.
How often should the water pump impeller be replaced?
For preventative maintenance and to avoid engine damage from overheating, most manufacturers recommend replacing the impeller every 100-200 operating hours or at least once per season, whichever comes first.
Is this kit difficult to install by myself?
Installation is a common DIY task for boaters with moderate mechanical skills and the correct tools. It involves removing the lower unit. If you are unsure, referring to a service manual for your specific engine model or hiring a professional marine mechanic is recommended.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9001 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
