Product Details

This Water Pump Repair Kit – Fits Suzuki DT115/DT140 (Replaces 17400-94611) provides all the necessary components to restore the cooling system on Suzuki DT115 and DT140 series 2-stroke outboard engines (115–140 HP) manufactured between 1986 and 2001.

It serves as a direct replacement for Suzuki OEM part numbers 17400-94600, 17400-94601, 17400-94602, 17400-94610, and 17400-94611, as well as Sierra part 18-3257.

Engineered for direct-fit installation, matching OEM specifications.
Key components for a complete water pump service are included in the package.
Recommended service interval is every 1-2 years or 100-200 operating hours to prevent engine overheating.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.

Brand	Part Number	Notes
Suzuki	17400-94611	Supersedes 17400-94600, 17400-94601, 17400-94602, 17400-94610
Sierra	18-3257	Aftermarket cross-reference

Engine & Model Compatibility

Confirm your engine model and year in the table below to ensure correct fitment.

This kit is specifically designed for Suzuki DT series outboards.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DT115	115 HP	2-Stroke	1986–2001	17400-94611
Suzuki	DT140	140 HP	2-Stroke	1986–2001	17400-94611

Technical Specs

Product Type: Water Pump Repair Kit
Installation: Direct replacement
Component Materials: Various (metal/rubber components)
Product Dimensions: 13.0cm x 10.0cm x 5.0cm
Product Weight: 0.15 kg (5.3 oz)
Lubrication: Requires lubrication during installation (silicone grease, glycerine, or dish soap recommended)

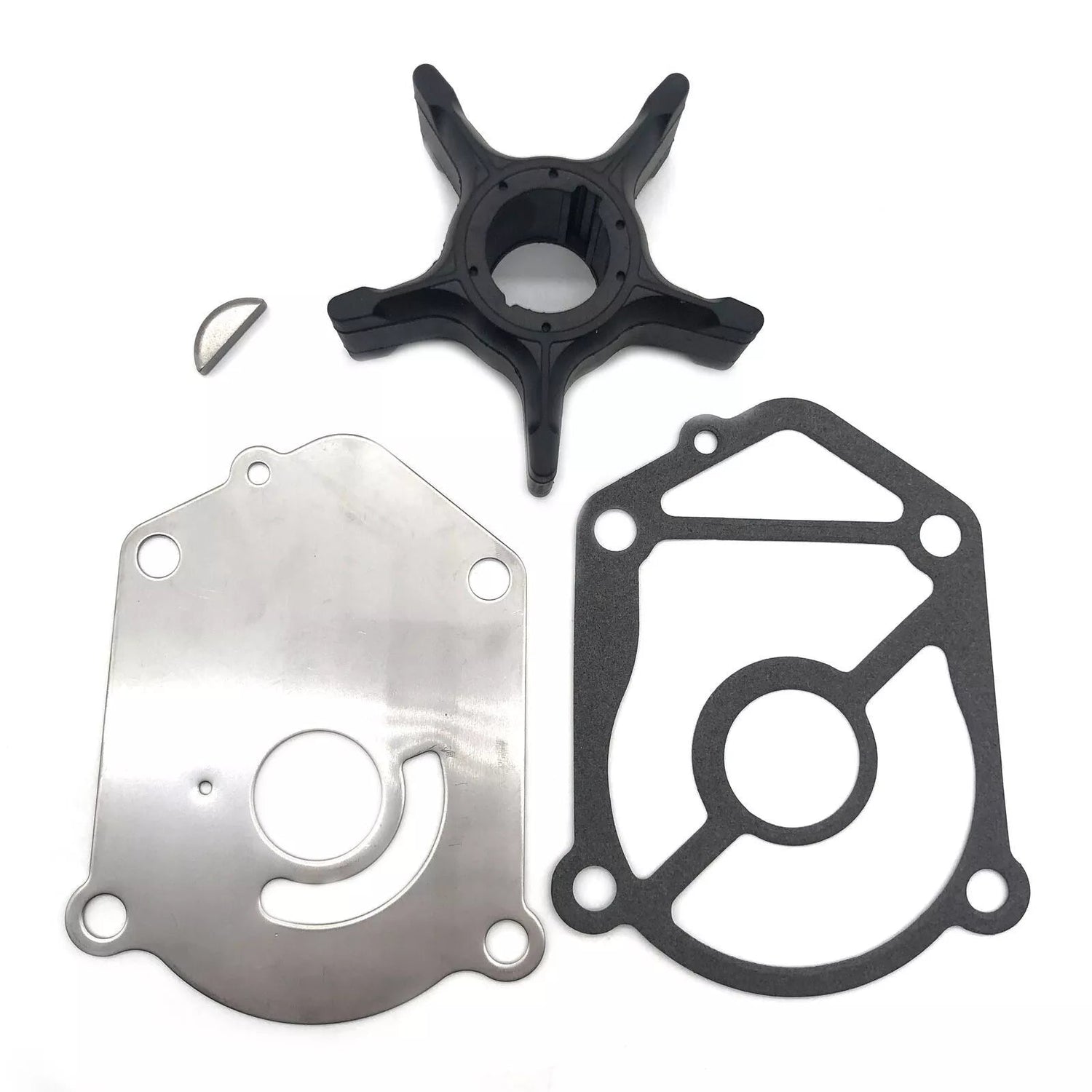

What’s in the Box

1 x Impeller (17461-94510)
1 x Impeller Plate (17471-94600)
1 x Pump Plate Gasket (17472-94510)
1 x Key (Replaces 09420-05009 / 09420-05006 / 09420-05005)

Installation Notes

Disconnect the battery and shift linkage before beginning work.
Remove the lower unit (gearcase) from the outboard's midsection.
Unbolt and remove the old water pump housing to access the impeller.
Carefully inspect the housing for scoring, warping, or cracks. Replace if damaged.
Remove the old impeller, gasket, and wear plate, noting their orientation.
Thoroughly clean all mating surfaces, removing any old gasket material or sealant.
Apply a light coat of silicone grease, glycerine, or dish soap to the new impeller and inside the pump housing.
Install the new key, gasket, plate, and impeller in the correct sequence.
Reinstall the water pump housing and torque its bolts to the manufacturer's specification.
Re-attach the lower unit, reconnect controls, and test the engine with a reliable water supply.

Troubleshooting & FAQ

How do I confirm this kit fits my specific engine?

Verify your engine's model (DT115 or DT140) and year (1986–2001) against the compatibility table. You can also cross-reference your existing part number with those listed in the Part Number Matrix.

What are the signs of a failing water pump?

Common symptoms include the engine overheating at idle or low speeds, a weak or intermittent stream from the "telltale" water outlet, or a melted water pump housing upon inspection.

How often should the water pump impeller be replaced?

For preventative maintenance, it is recommended to replace the impeller and gaskets every 1 to 2 years or every 100-200 hours of use, whichever comes first. This interval can vary based on operating conditions (e.g., saltwater vs. freshwater).

Why does the kit include a key with multiple part numbers?

The different key part numbers (09420-05009, 09420-05006, 09420-05005) are functionally identical and have been used interchangeably by the manufacturer over the production years. The included key will fit the specified engine models.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
