Water Pump Repair Kit – Fits Suzuki DT150/DT175/DT200/DT225 (Replaces 17400-87D11)

$51.39

Shipping calculated at checkout.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This complete Water Pump Repair Kit – Fits Suzuki DT150/DT175/DT200/DT225 (Replaces 17400-87D11) is designed for Suzuki V6 2-stroke outboard motors from 1986–2003. It contains all necessary components to rebuild the water pump, ensuring optimal cooling system performance.

This kit serves as a direct replacement for Suzuki part numbers 17400-87D00, 17400-87D01, 17400-87D02, 17400-87D10, and 17400-87D11, as well as Sierra 18-3253 and Mallory 9-45503.

Engineered for direct OEM replacement fit and function.
Specifically designed for V6 2-stroke outboard engines.
Includes impeller, plate, gasket, and key for a comprehensive rebuild.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17400-87D00
Suzuki	17400-87D01
Suzuki	17400-87D02
Suzuki	17400-87D10
Suzuki	17400-87D11
Sierra	18-3253
Mallory	9-45503

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is designed for the following Suzuki V6 2-stroke outboard models:

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DT 150	150	2-Stroke	1986–2003	17400-87D11
Suzuki	DT 175	175	2-Stroke	1987–1992	17400-87D11
Suzuki	DT 200	200	2-Stroke	1986–2000	17400-87D11
Suzuki	DT 225	225	2-Stroke	1990–2003	17400-87D11

Technical Specs

Product Type: Water Pump Repair Kit
Installation: Direct OEM replacement
Dimensions: 15.0 L x 13.0 W x 6.0 H cm
Weight: 0.2 kg (7.1 oz)
Application: For V6 2-stroke outboard engines

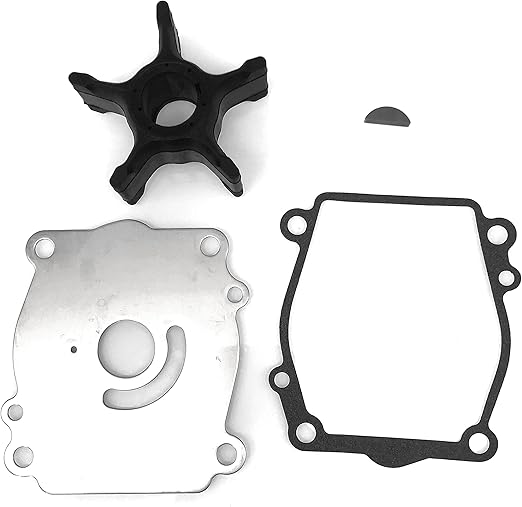

What’s in the Box

1 x Impeller (Replaces 17461-94520, 17461-90J00, 17461-90J01, 17461-94500, 17461-94501, 17461-94502, 17461-94503, 17461-94504, 17461-94505, 17461-94506, 17461-94510, 17461-94511)
1 x Impeller Plate (Replaces 17471-87D00, 17471-87D01)
1 x Pump Plate Gasket (Replaces 17472-87D10)
1 x Impeller Key (Replaces 09420-05009, 09420-05006)

Installation Notes

Disconnect Power: Disconnect the battery before beginning work.
Access Lower Unit: Drain gearcase oil, then unbolt and remove the lower unit (gearcase) from the outboard's driveshaft housing.
Disassemble Pump: Remove the water pump housing bolts and lift the housing to expose the impeller and other components. Note the orientation of the old impeller vanes.
Clean & Inspect: Clean all surfaces and inspect the housing for wear, scoring, or cracks. Replace the housing if significant damage is found.
Install New Parts: Install the new gasket, plate, impeller key, and impeller. Lubricate the new impeller and inner housing with a marine-safe lubricant. Turn the driveshaft clockwise while pushing the housing down to correctly seat the impeller vanes.
Reassemble: Secure the pump housing with the original bolts, tightening them to the manufacturer's specified torque.
Reinstall Lower Unit: Reattach the lower unit to the driveshaft housing and refill the gearcase with fresh oil.
Test Operation: Reconnect the battery. With the outboard in water, start the engine and verify a steady stream of water is exiting the "tell-tale" port.

Troubleshooting & FAQ

How do I know if my water pump is failing?

Common signs include a weak or non-existent water stream from the tell-tale (pee hole), engine overheating alarms, or a noticeable drop in cooling water pressure. Visually, a worn, cracked, or melted impeller is a clear indicator.

How often should I replace my water pump impeller kit?

For preventative maintenance, it is recommended to replace the water pump impeller every 1-2 years or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater, sandy/silty water). A full kit replacement is advised every 3-5 years.

Will this fit models outside the listed year ranges?

We can only guarantee fitment for the specific engine models and years listed in the compatibility table. Using this kit on other models is not recommended, as even minor differences in housing or driveshaft dimensions can cause failure.

What is the difference between this full kit and just replacing the impeller?

This full kit includes not only the impeller but also the wear plate, gasket, and key. Over time, the plate can become scored and the gaskets can compress, leading to pressure loss even with a new impeller. A full kit ensures all critical wear surfaces are restored for optimal reliability.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
