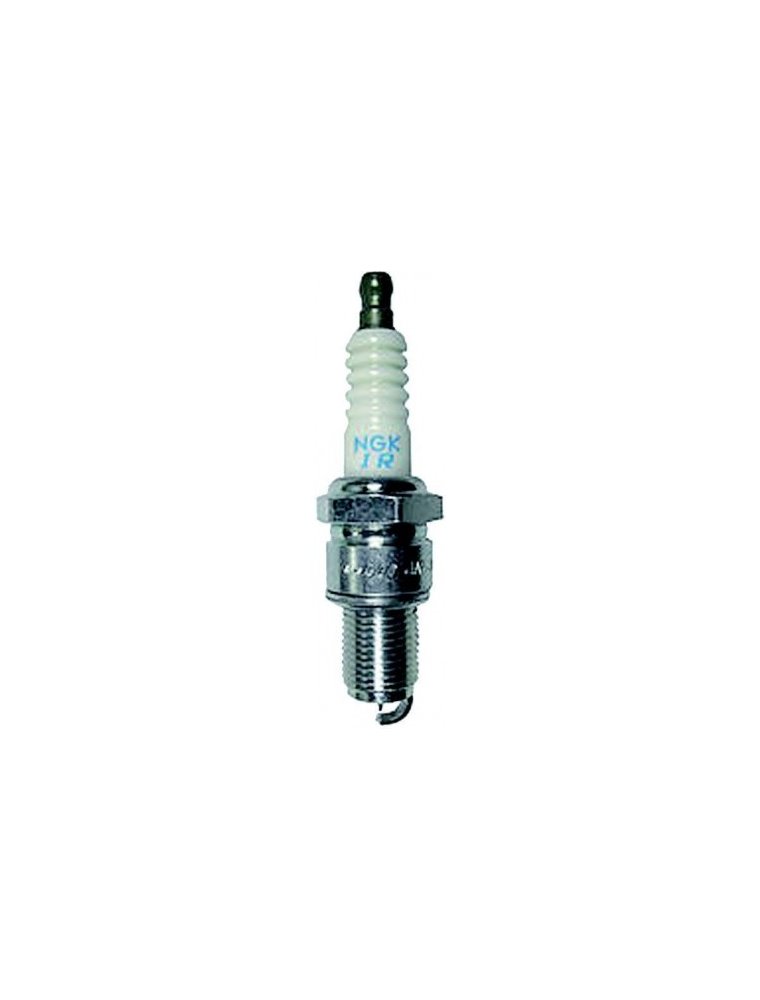

NGK Standard CR6E Spark Plug – Fits Arctic Cat & Suzuki ATVs/UTVs (Replaces 09482-00528, NGK 6965)

$6.15 $9.00

Shipping calculated at checkout.

NGK Standard CR6E Spark Plug – Fits Arctic Cat & Suzuki ATVs/UTVs (Replaces 09482-00528, NGK 6965) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

The NGK Standard CR6E Spark Plug is a high-quality replacement for a wide range of Suzuki and Arctic Cat engines. It is designed for use in 2000–2019 Suzuki 400cc–750cc ATV and marine engines, including the M90 Boulevard motorcycle, as well as 1998–2009 Arctic Cat 400cc–700cc ATV engines and the 2017–2018 Prowler 500 UTV.

This plug serves as a direct cross-reference for NGK 6965, Suzuki 09482-00528 and 09482-00457, and Arctic Cat 3303-411.

Features a standard thread-in design for straightforward installation.
Equipped with a 5k Ohm resistor to suppress electrical interference.
Utilizes a Triple Gasket Sealing Process to prevent combustion gas leakage.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
NGK	6965	Aftermarket Standard
Suzuki	09482-00528	OEM Reference
Suzuki	09482-00457	OEM Reference (Superseded)
Arctic Cat	3303-411	OEM Reference

Engine & Model Compatibility

Confirm your engine model and year in the table below.

For Arctic Cat models, this plug fits a range of 400cc to 700cc ATV engines from 1998–2009 and the Prowler 500 UTV (2017–2018).

For Suzuki applications, this plug is compatible with 400cc–750cc ATV and marine engines (2000–2019) as well as the VZ1500 Boulevard M90 motorcycle.

Brand	Model	Displacement	Stroke	Years	OEM Part No.	Notes
Arctic Cat	400 2x4	400cc	4-Stroke	1998–2001	3303-411
Arctic Cat	400 4x4	400cc	4-Stroke	1999–2002	3303-411
Arctic Cat	400i 2x4	400cc	4-Stroke	2002–2003	3303-411
Arctic Cat	400i 4x4	400cc	4-Stroke	2002–2003	3303-411
Arctic Cat	454 2WD	454cc	4-Stroke	1998	3303-411
Arctic Cat	454 4x4	454cc	4-Stroke	1998	3303-411
Arctic Cat	500 2x4	500cc	4-Stroke	1999–2000	3303-411
Arctic Cat	500 4x4	500cc	4-Stroke	1998–2009	3303-411
Arctic Cat	500 4x4 Automatic	500cc	4-Stroke	2000–2009	3303-411
Arctic Cat	500 4x4 Auto variants (LE/M4/MRP/TBX/TRV)	500cc	4-Stroke	2002–2008	3303-411	Multiple trim models
Arctic Cat	700 EFI 4x4 Auto variants	700cc	4-Stroke	2006–2008	3303-411	Including LE/M4/SE models
Arctic Cat	Prowler 500	500cc	4-Stroke	2017–2018	3303-411	2018 under Textron Offroad brand
Suzuki	LT-A450X King Quad AXi 4x4	450cc	4-Stroke	2007–2010	09482-00528	Multiple trim variants
Suzuki	LT-A500F Quad Master 4x4	500cc	4-Stroke	2000–2001	09482-00528
Suzuki	LT-A500F Vinson Automatic 4x4	500cc	4-Stroke	2002–2007	09482-00528	Including Limited/Camo editions
Suzuki	LT-A500X King Quad AXi 4x4	500cc	4-Stroke	2009–2014	09482-00528	Including Power Steering models
Suzuki	LT-A700X King Quad 4x4	700cc	4-Stroke	2005–2007	09482-00528
Suzuki	LT-A750X King Quad AXi 4x4	750cc	4-Stroke	2008–2014	09482-00528	All variants including Power Steering
Suzuki	LT-F500F Quad Runner 4x4	500cc	4-Stroke	2000–2002	09482-00528
Suzuki	LT-F500F Vinson 4x4	500cc	4-Stroke	2003–2007	09482-00528
Suzuki	VZ1500 Boulevard M90	1500cc	4-Stroke	2009, 2013–2019	09482-00528	Motorcycle application
Suzuki	DF8A, DF9.9A	8-9.9HP	4-Stroke	2011–2017	09482-00528	Marine outboard application

Technical Specs

Product Type: Spark Plug
Heat Range: 6
Thread Size: 10mm x 1.0mm
Reach: 19mm (3/4")
Hex Size: 16mm (5/8")
Gap: 0.8mm (0.031")
Center Electrode: Nickel, 2.5mm, Non-Projected
Ground Electrode: Nickel, Standard, Single
Resistor: Yes, 5k Ohm
Installation: Standard thread-in design
Terminal Type: Threaded Stud
Seat Type: Gasket
Sealing: Triple Gasket Sealing Process
Housing Material: Metal with ceramic insulator
Torque (Cast Iron): 7.2-10.8 lb. ft.
Torque (Aluminum): 7.2-8.7 lb. ft.
Longevity: Approximately 30,000 miles
Warranty: 60 Days
Weight: 0.05 kg (0.11 lb)
Product Dimensions: 8.0" L x 2.0" W x 2.0" H

What’s in the Box

1 x NGK CR6E Spark Plug (Replaces 09482-00528, NGK 6965)

Installation Notes

Ensure the engine is cool. Clean the area around the old spark plug to prevent debris from falling into the cylinder.
Carefully disconnect the spark plug wire boot with a gentle twisting motion.
Using a spark plug socket and extension, turn counter-clockwise to loosen and remove the old plug.
Verify the gap of the new CR6E plug is set to 0.8mm (0.031"). Although pre-gapped, checking is always recommended.
Thread the new plug into the cylinder head by hand until it is finger-tight. This prevents cross-threading.
Use a torque wrench for final tightening. Torque to 7.2-10.8 lb. ft. for cast iron heads or 7.2-8.7 lb. ft. for aluminum heads.
Reconnect the spark plug boot firmly until you feel it click into place.

Troubleshooting & FAQ

How do I confirm this spark plug fits my vehicle?

Refer to the "Engine & Model Compatibility" and "Part Number Matrix" sections on this page. Cross-reference your engine model, year, and original part number to ensure an exact match.

What is the difference between this and the OEM version?

This NGK plug is a direct replacement that meets or exceeds original manufacturer specifications. NGK is a leading brand that often produces the original plugs for makers like Suzuki and Arctic Cat, so performance and quality are comparable.

What is the recommended replacement interval for the CR6E plug?

The manufacturer suggests a service life of approximately 30,000 miles under normal conditions. However, intervals can be shorter for high-performance use, marine applications, or harsh environments. Regular inspection is recommended.

What are signs my current spark plug is failing?

Common symptoms include rough idling, difficulty starting the engine, decreased fuel economy, engine misfires (stumbling), and slow acceleration.

What does the heat range "6" on this plug mean?

The heat range indicates the plug's ability to dissipate heat from the firing tip. A "6" is a medium heat range plug suitable for the specified stock engines. Using an incorrect heat range can cause poor performance or even engine damage.

Is this spark plug pre-gapped?

Yes, it comes pre-gapped from the factory to 0.8mm (0.031"). However, it's best practice to verify the gap with a feeler gauge before installation, as it can shift during shipping.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images and specifications against your original part before ordering. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement component, not an OEM part. Brand names and part numbers are used for reference purposes only.
Professional installation is recommended for safety and optimal performance. Improper installation can lead to engine damage.
