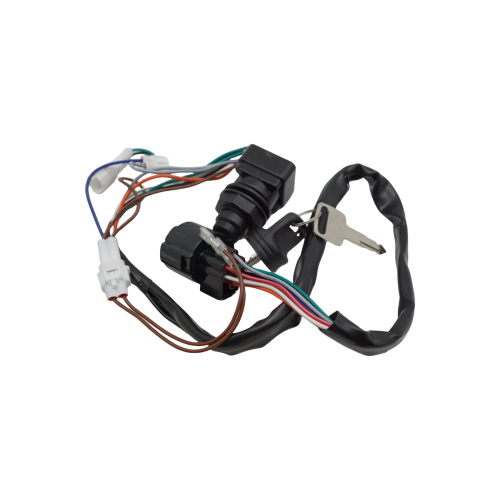

Ignition Key Switch Assembly – Fits Suzuki Outboard 15-250 HP (Replaces 37110-93J00, 37110-93J01, 37110-93J02)

$52.99

Shipping calculated at checkout.

Ignition Key Switch Assembly – Fits Suzuki Outboard 15-250 HP (Replaces 37110-93J00, 37110-93J01, 37110-93J02) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Ignition Key Switch Assembly – Fits Suzuki Outboard 15-250 HP (Replaces 37110-93J00, 37110-93J01, 37110-93J02) is designed for a wide range of Suzuki 4-stroke outboard motors from 15 HP to 250 HP, specifically covering models from 1998 to 2011. It provides a reliable, OEM-style fit to ensure proper function of your engine's electrical system.

It serves as a direct replacement for Suzuki part numbers 37110-93J00, 37110-93J01, and 37110-93J02.

Direct replacement for a hassle-free installation.
Durable plastic and metal construction for longevity.
Includes two ignition keys.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	37110-93J00
Suzuki	37110-93J01
Suzuki	37110-93J02

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Designed for Suzuki 4-stroke outboard models from 15 HP to 250 HP (1998–2011).

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DF15	15	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF25	25	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF30	30	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF40	40	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF50	50	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF60	60	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF70	70	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF80	80	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF90	90	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF115	115	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF140	140	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF150	150	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF175	175	4-Stroke	2004–2011	37110-93J00/93J01/93J02
Suzuki	DF200	200	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF225	225	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF250	250	4-Stroke	1998–2011	37110-93J00/93J01/93J02
Suzuki	DF200TXK4	200	4-Stroke	2004	37110-93J00/93J01/93J02
Suzuki	DF250TXZK4	250	4-Stroke	2004	37110-93J00/93J01/93J02
Suzuki	DF200TXK5	200	4-Stroke	2005	37110-93J00/93J01/93J02
Suzuki	DF150TLK6	150	4-Stroke	2006	37110-93J00/93J01/93J02
Suzuki	DF250TXZK6	250	4-Stroke	2006	37110-93J00/93J01/93J02
Suzuki	DF225TXXK7	225	4-Stroke	2007	37110-93J00/93J01/93J02
Suzuki	DF225TXXZK7	225	4-Stroke	2007	37110-93J00/93J01/93J02
Suzuki	DF200TLK8	200	4-Stroke	2008	37110-93J00/93J01/93J02
Suzuki	DF225TXXK8	225	4-Stroke	2008	37110-93J00/93J01/93J02
Suzuki	DF200TXZK9	200	4-Stroke	2009	37110-93J00/93J01/93J02
Suzuki	DF175ZXK9	175	4-Stroke	2009	37110-93J00/93J01/93J02
Suzuki	DF250TXK10	250	4-Stroke	2010	37110-93J00/93J01/93J02
Suzuki	DF150TXK10	150	4-Stroke	2010	37110-93J00/93J01/93J02
Suzuki	DF225TXK10	225	4-Stroke	2010	37110-93J00/93J01/93J02
Suzuki	DF250SSTLK10	250	4-Stroke	2010	37110-93J00/93J01/93J02

Technical Specs

Product Type: Ignition Key Switch Assembly
Installation: Direct replacement
Connection: Electrical harness connection
Housing Material: Plastic and metal construction
Housing Color: Black
Dimensions: 15.2 × 15.2 × 12.7 cm (6 × 6 × 5 in)
Weight: 0.45 kg (1 lb)
Fitting Type: OEM-style direct fit
Working Voltage: 12V
Warranty: 1-year warranty against manufacturing defects
Other Technical Attributes: Includes 2 ignition keys

What’s in the Box

1 x Ignition Key Switch Assembly (Replaces 37110-93J00/93J01/93J02)
2 x Keys

Installation Notes

Disconnect the battery's negative terminal to prevent electrical shorts.
Locate and access the existing ignition switch assembly on your vessel's console.
Carefully disconnect the electrical harness connected to the back of the old switch.
Remove the mounting nut or retaining clip securing the old switch and pull it out from the console.
Insert the new ignition switch assembly into the mounting hole.
Secure it in place using the original or supplied mounting hardware.
Firmly reconnect the electrical harness to the new switch, ensuring a snug fit.
Reconnect the battery's negative terminal.
Test the switch in all positions (Off, On, Start) to confirm proper function before starting the engine.

Troubleshooting & FAQ

How do I know if this ignition switch fits my Suzuki outboard?

This switch fits a wide range of Suzuki 4-stroke outboards from 15 HP to 250 HP, generally from years 1998 to 2011. The most reliable way to confirm fitment is to check if your existing part number is 37110-93J00, 37110-93J01, or 37110-93J02. You can also consult the detailed compatibility table on this page.

What are the signs of a failing ignition switch?

Common symptoms include the engine not starting, intermittent power loss to electrical components, the key being difficult to turn, or the starter motor not engaging when the key is turned to the 'Start' position.

Is any special tool required for installation?

Installation typically requires basic hand tools like a wrench or socket set to remove the mounting nut. No specialized electrical tools are usually necessary.

Do the keys need to be programmed?

These are mechanical keys and do not require any programming. They are cut specifically for the included ignition switch lock cylinder.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
