Ignition Key Switch Panel – Fits Suzuki Outboard Engines (Replaces ...
Product Details

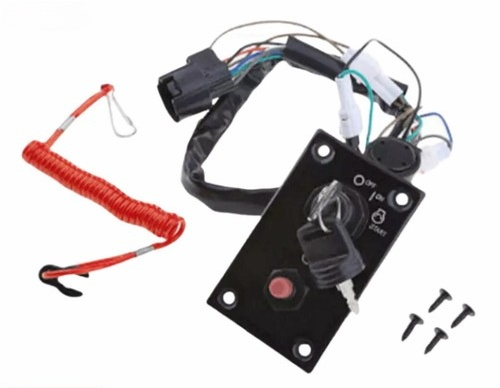

This is a complete Single Ignition Key Switch Panel – Fits Suzuki Outboard Engines (Replaces 37100-96J24, 37100-96J27), designed for dashboard mounting on models from 2005 and newer. The assembly includes an ignition switch, emergency stop lanyard, warning buzzer, and mounting hardware for a comprehensive installation.
It's a direct replacement for Suzuki OEM part numbers 37100-96J24, 37100-96J25, 37100-96J26, 37100-96J27, 37100-93J20, and 37100-96J20.
- Wired connection with color-coded leads for straightforward installation.
- Includes integrated warning buzzer and emergency stop switch with lanyard.
- Comes as a complete kit with hardware and two keys.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 37100-96J24 |
| Suzuki | 37100-96J25 |
| Suzuki | 37100-96J26 |
| Suzuki | 37100-96J27 |
| Suzuki | 37100-93J20 |
| Suzuki | 37100-96J20 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This panel is designed for a wide range of Suzuki 4-stroke outboard engines, typically from 40 HP to 250 HP manufactured from 2015 onwards.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Suzuki | DF40ATL | 40 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF40ATL2 | 40 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF50ATL | 50 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF50ATL2 | 50 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF50ATLW2 | 50 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF50AVTL | 50 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF60ATL | 60 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF60AVTL | 60 | 4-Stroke | 2016+ | 37100-96J24/37100-96J27 |
| Suzuki | DF70ATL | 70 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF70ATL2 | 70 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF70ATLW2 | 70 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF70ATX | 70 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF80ATL | 80 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF80ATX | 80 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF90ATL | 90 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF90ATL2 | 90 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF90ATX | 90 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF90ATXW | 90 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF100ATL | 100 | 4-Stroke | 2016–2017 | 37100-96J24/37100-96J27 |
| Suzuki | DF100ATX | 100 | 4-Stroke | 2015–2017 | 37100-96J24/37100-96J27 |
| Suzuki | DF115ATX | 115 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF115ASTX | 115 | 4-Stroke | 2016+ | 37100-96J24/37100-96J27 |
| Suzuki | DF115ATLSS | 115 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF115ATXW | 115 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF115AZX | 115 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF140ATL | 140 | 4-Stroke | 2015–2017 | 37100-96J24/37100-96J27 |
| Suzuki | DF140ATLW | 140 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF140ATX | 140 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF140ATXW | 140 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF140ATXZ | 140 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF140AZL | 140 | 4-Stroke | 2016+ | 37100-96J24/37100-96J27 |
| Suzuki | DF150TL | 150 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF150ZX | 150 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF175TL | 175 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF175TLW2 | 175 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF175TX | 175 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF175TX2 | 175 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF175TXW2 | 175 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF175TXZW2 | 175 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATL | 200 | 4-Stroke | 2016+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATL2 | 200 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATLW | 200 | 4-Stroke | 2016+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATX | 200 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATX2 | 200 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATXW2 | 200 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATXZW | 200 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF200ATXZW2 | 200 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200AZX | 200 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200TL | 200 | 4-Stroke | 2016+ | 37100-96J24/37100-96J27 |
| Suzuki | DF200TX | 200 | 4-Stroke | 2016–2017 | 37100-96J24/37100-96J27 |
| Suzuki | DF200ZX | 200 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF225TX | 225 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF225TXX | 225 | 4-Stroke | 2016+ | 37100-96J24/37100-96J27 |
| Suzuki | DF225ZX | 225 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF250STL | 250 | 4-Stroke | 2017+ | 37100-96J24/37100-96J27 |
| Suzuki | DF250TLSS | 250 | 4-Stroke | 2015+ | 37100-96J24/37100-96J27 |
| Suzuki | DF250TX | 250 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF250TXX | 250 | 4-Stroke | 2015–2016 | 37100-96J24/37100-96J27 |
| Suzuki | DF250ZX | 250 | 4-Stroke | 2015–2017 | 37100-96J24/37100-96J27 |
| Suzuki | DF250ZXX | 250 | 4-Stroke | 2015–2017 | 37100-96J24/37100-96J27 |
Technical Specs
- Product Type
- Ignition Key Switch Panel
- Installation
- Dashboard Mount
- Connection
- Wired (Color-Coded Leads)
- Housing Color
- Black
- Weight
- 0.91 kg (2 lbs)
- Warranty
- 1 Year (Varies by Seller)
- Other Technical Attributes
- Includes Warning Buzzer, Emergency Stop Switch Lanyard
What’s in the Box
- 1 x Single Ignition Key Switch Panel Assembly (37100-96J24/37100-96J27)
- 1 x Emergency Stop Switch Lanyard
- 1 x Set of Mounting Hardware
- 2 x Keys
Installation Notes
- Disconnect the boat's battery at the negative terminal to prevent electrical shorts.
- Access the rear of the dashboard console where the existing ignition panel is mounted.
- Carefully label and disconnect the wiring harness from the old ignition switch.
- Unscrew and remove the old switch panel from the dashboard.
- Position the new ignition key switch panel in the cutout and secure it with the included mounting hardware.
- Connect the color-coded wire leads to the corresponding terminals on your engine's harness. Ensure all connections are secure.
- Reconnect the battery terminal.
- Test the switch functions (OFF, ON, START) and confirm the warning buzzer and emergency stop switch are operational before heading out on the water.
Troubleshooting & FAQ
How do I know if this ignition panel will fit my specific Suzuki outboard?
The best way to ensure compatibility is to compare your existing part number to those listed in our Part Number Matrix. Additionally, check the Engine & Model Compatibility table to see if your engine model and year are included. When in doubt, visual comparison is key.
What are the common signs that my ignition switch is failing?
Symptoms of a faulty ignition switch include trouble starting the engine, the key feeling loose or getting stuck in position, intermittent power loss to the console, or the engine stalling unexpectedly while running. A non-functional warning buzzer or kill switch can also indicate a problem with the panel assembly.
What is the purpose of the warning buzzer included in the panel?
The warning buzzer is a critical safety feature. It sounds an audible alarm to alert the operator of potential engine issues detected by the ECU, such as overheating, low oil pressure, or other system faults, allowing for prompt action to prevent engine damage.
Can I install this part myself?
While installation can be performed by individuals with marine electrical experience, we recommend professional installation to ensure it is done correctly and safely. Improper wiring can lead to engine damage or electrical system failures.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
