Product Details

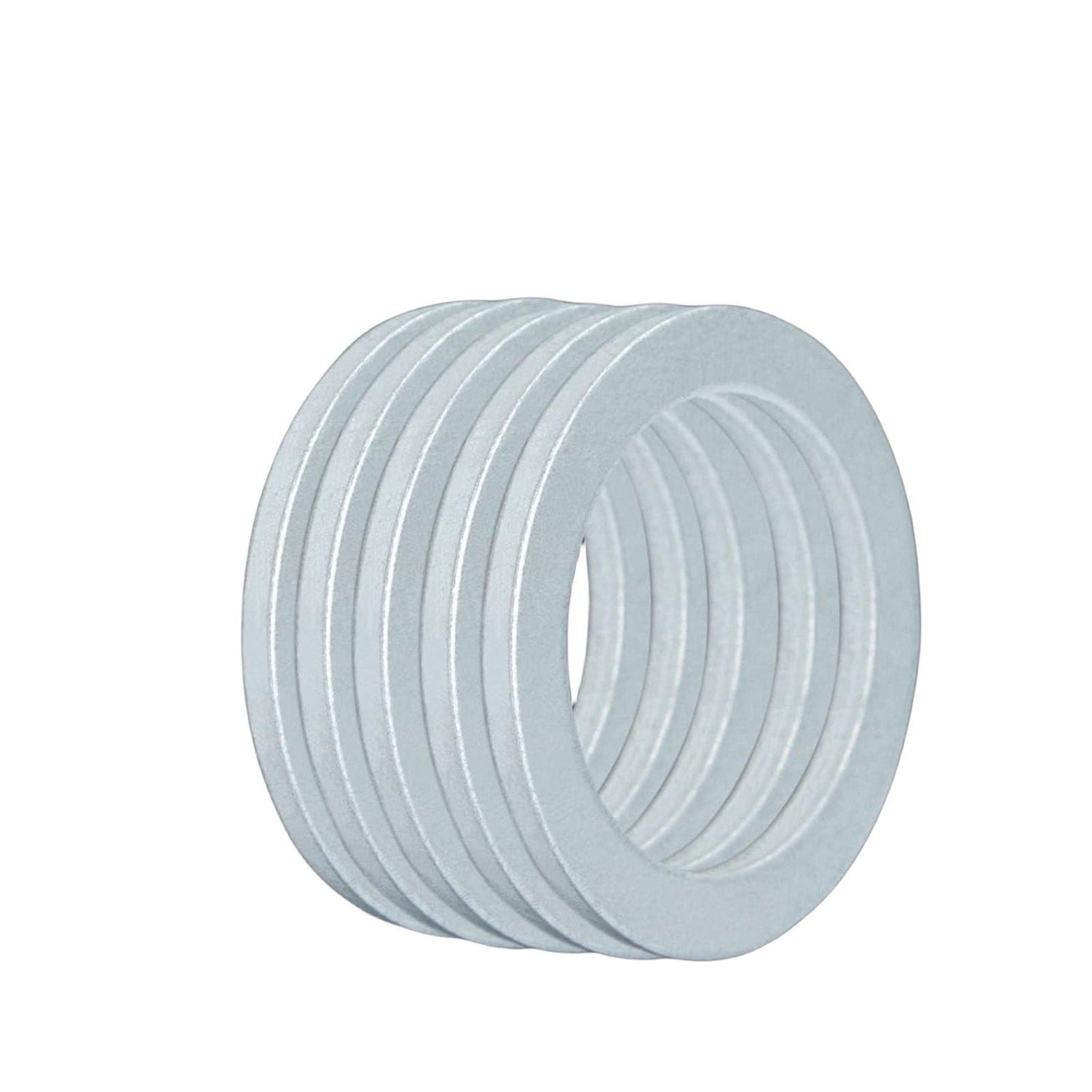

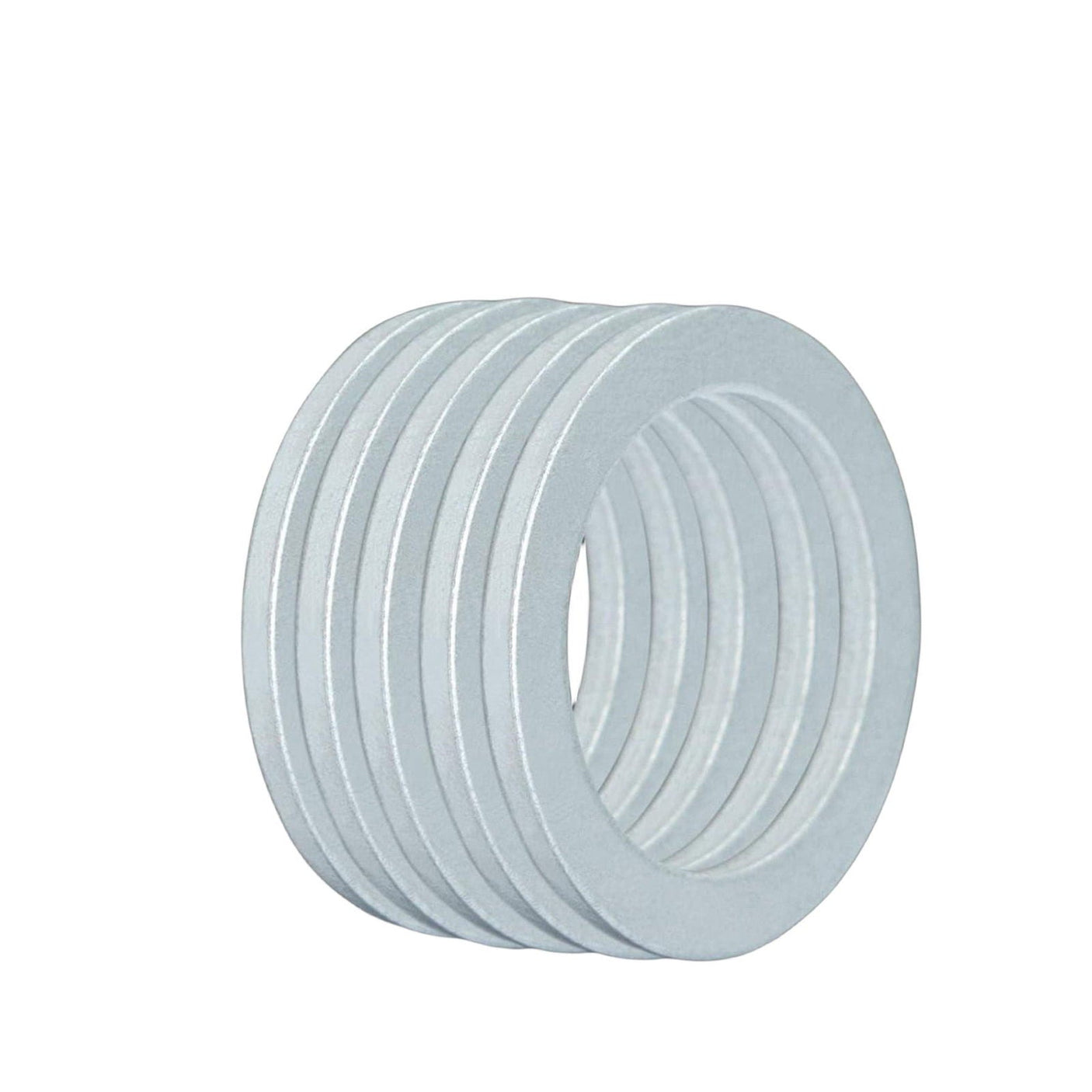

This Oil Drain Plug Crush Gasket provides a secure seal for the oil drain plug on Suzuki Marine 4-stroke outboard engines, covering models from 25 HP to 350 HP manufactured from 2000 to the present. It ensures a leak-free connection after routine oil changes.
It is a direct interchange for Suzuki part number 09168-12012 and is cross-referenced with several aftermarket parts, including JLM Marine 0916812012, Sierra 18-0902, Mallory 9-60104, GLM 31200, Easterner C14405, and WSM 607-12.
- Installs on the lower unit or engine oil pan drain plug.
- Constructed from corrosion-resistant aluminum to OEM standards.
- Designed as a single-use washer to ensure a perfect seal with each oil change.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Suzuki | 09168-12012 |
| JLM Marine | 0916812012 |
| Sierra | 18-0902 |
| Mallory | 9-60104 |
| GLM | 31200 |
| Easterner | C14405 |
| WSM | 607-12 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki Outboards: Fits DF series engines from 25 HP to 350 HP manufactured from 2000 to the present day.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Suzuki | DF25 | 25 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF30 | 30 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF40 | 40 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF50 | 50 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF60 | 60 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF70 | 70 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF80A | 80 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF90 | 90 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF100 | 100 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF110 | 110 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF115 | 115 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF125 | 125 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF140 | 140 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF150 | 150 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF175 | 175 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF200 | 200 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF225 | 225 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF250 | 250 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF300 | 300 | 4-Stroke | 2000–Present | 09168-12012 |
| Suzuki | DF350 | 350 | 4-Stroke | 2000–Present | 09168-12012 |
Technical Specs
- Product Type
- Oil Drain Plug Crush Gasket/Washer
- Installation
- Lower Unit/Engine Oil Pan
- Housing Material
- Aluminum
- Housing Color
- Silver
- Fitting Type
- Crush Washer
- Thread Size
- M14
- Other Technical Attributes
- Corrosion resistant
What’s in the Box
- 1 x Oil Drain Plug Crush Gasket (09168-12012)
Installation Notes
- Position a suitable oil drain pan under the engine's oil drain plug.
- Loosen and remove the drain plug using the correct size wrench.
- Allow the oil to drain from the engine completely.
- Carefully clean the drain plug and the sealing surface on the oil pan or lower unit.
- Remove the old crush gasket from the plug and discard it.
- Place the new crush gasket over the threads of the drain plug.
- Reinstall the plug and tighten it to the manufacturer's specified torque. Do not overtighten, as this can damage the threads or gasket.
- Refill the engine with the correct type and amount of fresh oil.
- Start the engine and let it run for a few minutes, then shut it off and check for any leaks around the drain plug.
Troubleshooting & FAQ
How do I confirm this gasket fits my specific Suzuki outboard?
This gasket is designed for Suzuki DF 4-stroke outboard models from 25 HP to 350 HP, year 2000 to present. The definitive way to confirm fitment is to check that your engine's service manual specifies OEM part number 09168-12012 for the oil drain plug gasket.
Why must I replace this crush gasket with every oil change?
The aluminum crush gasket is a single-use component. It is designed to deform (or "crush") when tightened, creating a perfect, tight seal between the drain plug and the oil pan. Reusing an old, compressed gasket will likely result in an improper seal and lead to oil leaks.
What are the signs of a leaking or failed drain plug gasket?
The most obvious symptom is an oil drip or visible seepage from the drain plug area on your engine’s oil pan or lower unit. If you notice any signs of an oil leak, the gasket should be replaced as soon as possible.
Is this aftermarket gasket different from the original Suzuki OEM part?
This aftermarket gasket is manufactured to meet or exceed OEM specifications. It is made from high-quality, corrosion-resistant aluminum to provide the same fit, function, and reliable seal as the original part.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
