Oil Seal (25 x 45 x 5mm) – Fits Suzuki DF4/DF5/DF6 (Replaces 09283-...
Product Details

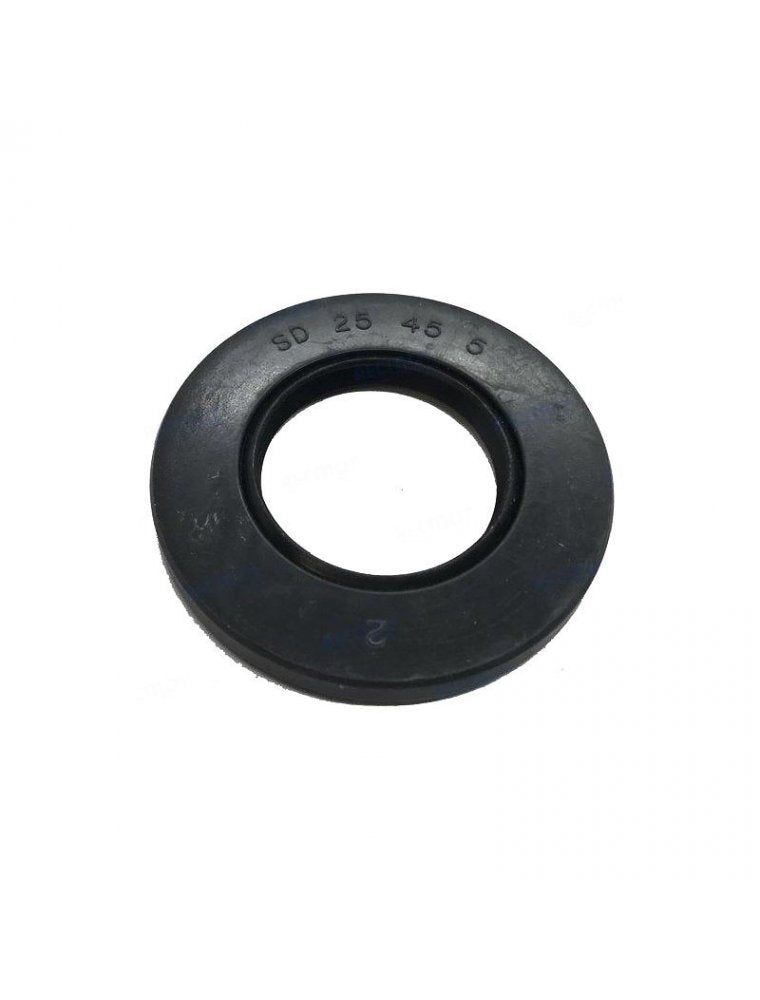

This is a replacement Oil Seal (25 x 45 x 5mm) – Fits Suzuki DF4/DF5/DF6 4-Stroke outboard motors from 2002 and newer. It is designed for the lower section of the drive shaft housing to prevent water intrusion and protect internal components.
This part is a direct replacement for Suzuki OEM 09283-25076, Johnson/Evinrude OEM 5033481, and aftermarket reference AM09283-25076.
- Installation Location: Lower Drive Shaft Housing
- Primary Function: Seals the drive shaft to prevent water from entering the gearcase.
- Dimensions: 25 x 45 x 5 mm (Inner Diameter x Outer Diameter x Width)
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki (OEM) | 09283-25076 | |
| Johnson/Evinrude (OEM) | 5033481 | Equivalent part for Suzuki-built models. |
| Suzuki (Aftermarket) | AM09283-25076 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Fits various 4, 5, and 6 HP 4-stroke outboards from Suzuki, including the original DF series and the newer DF "A" models.
Also fits Suzuki-built Johnson/Evinrude 4-stroke models that use the same platform.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF4 | 4 | 4-Stroke | 2002+ | 09283-25076 | |
| Suzuki | DF5 | 5 | 4-Stroke | 2002+ | 09283-25076 | |
| Suzuki | DF6 | 6 | 4-Stroke | 2002+ | 09283-25076 | |
| Suzuki | DF4A | 4 | 4-Stroke | 2016+ | 09283-25076 | Lower oil seal |
| Suzuki | DF5A | 5 | 4-Stroke | 2016+ | 09283-25076 | Lower oil seal |
| Suzuki | DF6A | 6 | 4-Stroke | 2016+ | 09283-25076 | Lower oil seal |
| Johnson/Evinrude | DF4 | 4 | 4-Stroke | 2002+ | 5033481 | Suzuki-built model |
| Johnson/Evinrude | DF5 | 5 | 4-Stroke | 2002+ | 5033481 | Suzuki-built model |
| Johnson/Evinrude | DF6 | 6 | 4-Stroke | 2002+ | 5033481 | Suzuki-built model |
Technical Specs
- Product Type
- Oil Seal
- Installation
- Lower Drive Shaft Housing
- Dimensions
- 25 x 45 x 5 mm (ID x OD x Width)
- Function
- Used to seal the lower section of the drive shaft to prevent water intrusion
What’s in the Box
- 1 x Oil Seal (Replaces 09283-25076/5033481)
Installation Notes
- Drain the gearcase oil completely.
- Remove the propeller assembly and unbolt the lower unit (gearcase) from the drive shaft housing.
- Carefully lower the gearcase to access the drive shaft and its seals.
- Locate the old oil seal in the lower section of the drive shaft housing.
- Use a seal puller or flat-head screwdriver to carefully pry out the old seal without scratching the housing.
- Thoroughly clean the seal seating cavity to remove any old sealant, grease, or corrosion.
- Apply a thin layer of marine grease to the outer edge of the new seal and the inner lip.
- Position the new seal and use a suitable driver or socket to press it in evenly until it is fully seated.
- Carefully re-install the lower unit, ensuring the drive shaft, shift shaft, and water tube are correctly aligned.
- Tighten bolts to the manufacturer's specified torque.
- Reinstall the propeller and refill the gearcase with fresh marine gear lube.
- Check for leaks around the seal after running the engine.
Troubleshooting & FAQ
What are the signs of a failing oil seal?
The most common sign is milky or creamy-colored gear oil, which indicates water has mixed with the lubricant. You may also notice an oil leak around the lower unit or a recurring need to top off the gear oil.
Is this seal for the upper or lower part of the drive shaft?
This specific seal is for the lower section of the drive shaft housing, where the shaft enters the gearcase.
Will this fit my Johnson/Evinrude motor?
It fits specific Suzuki-built Johnson/Evinrude 4-stroke models (DF4/5/6). These engines use Suzuki parts. Always verify your OEM part number is 5033481 to ensure compatibility.
When should this oil seal be replaced?
It is recommended to replace the lower unit oil seals whenever the gearcase is serviced, during a water pump impeller replacement, or immediately if you detect a leak. Proactive replacement every 1-2 seasons is good practice.
What is the difference between Suzuki 09283-25076 and Johnson/Evinrude 5033481?
They are the same part. Johnson/Evinrude assigned part number 5033481 to the original Suzuki part (09283-25076) for use in their Suzuki-manufactured engines.
What is the difference between an OEM and an aftermarket part?
This listing is for an aftermarket replacement, not an OEM component. It is engineered to meet or exceed OEM specifications using comparable materials and is manufactured in an ISO 9002 certified facility. All parts are batch-inspected to ensure quality and fitment.
What are your shipping speeds and costs?
We ship worldwide, with most orders arriving in 5–15 days via standard delivery. Standard shipping is free for most regions. Expedited shipping options, if available for your location, will be presented at checkout.
What is your warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. If you encounter an issue, please contact our support team with your order number. Returns are accepted for unused items in their original condition within our standard return window. Please see our full policy page or contact us for detailed instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
