Single Engine Ignition Key Switch Panel – Fits Suzuki 25-250 HP Out...
Product Details

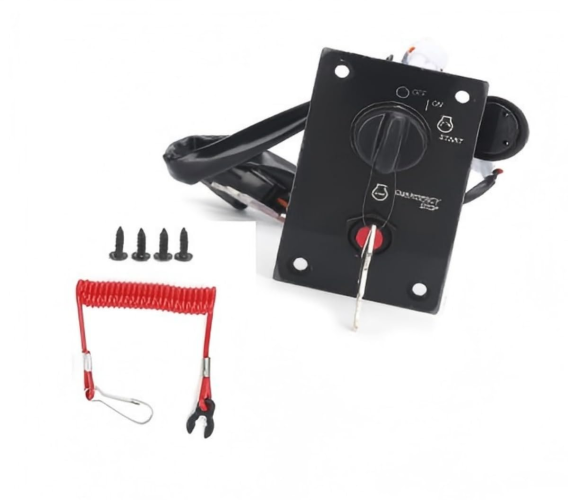

This aftermarket Single Engine Ignition Key Switch Panel – Fits Suzuki 25-250 HP Outboards (Replaces 37100-96J24, 37100-96J25) is designed for Suzuki DF series 4-Stroke engines from 25HP to 250HP (2010–present), offering a reliable replacement for your vessel's ignition system. It fits a wide range of models including the DF40, DF50, DF60, DF70, DF90, DF115, DF140, DF150, DF175, DF200, DF225, and DF250.
It serves as a direct interchange for Suzuki part numbers 37100-96J24, 37100-96J25, 37100-96J26, 37100-96J27, 37100-93J20, 37100-96J20, 37100-96J21, and 37100-96J23.
- Simple panel-mount installation with pre-drilled mounting holes.
- Features a plug-in connector for a straightforward electrical hookup.
- Includes an integrated connection for the essential engine safety lanyard.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Suzuki | 37100-96J24 |
| Suzuki | 37100-96J25 |
| Suzuki | 37100-96J26 |
| Suzuki | 37100-96J27 |
| Suzuki | 37100-93J20 |
| Suzuki | 37100-96J20 |
| Suzuki | 37100-96J21 |
| Suzuki | 37100-96J23 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Suzuki | DF25 | 25 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF30A | 30 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF40A | 40 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF50A/50ATL/50ATLW2/50AVTL | 50 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF60A/60ATL/60AVTL | 60 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF70A/70ATL/70ATLW2 | 70 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF80A/80ATL/80ATX | 80 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF90A/90ATL/90ATX/90ATLW/90ATXW | 90 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF100A/100ATL/100ATX | 100 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF115A/115ATL/115ATX/115AZL/115AZX | 115 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF140A/140ATL/140ATX/140ATLW | 140 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF150 (STL/TX/ZX variants) | 150 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF175 (TL/TX/TXZ variants) | 175 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF200 (TL/TX/ZX/A variants) | 200 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF225 (TX/TXX/ZX variants) | 225 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
| Suzuki | DF250 (TX/TXX/ZX/ZXX/STL variants) | 250 | 4-Stroke | 2010–Present | 37100-96J24, 37100-96J25 |
Technical Specs
- Product Type
- Single Engine Ignition Key Switch Panel Assembly
- Installation
- Panel Mount
- Material
- Plastic & Metal
- Operation Mode
- OFF-NONE-ON
- Current Rating
- 10 Amps
- Operating Voltage
- 12 Volts
- Contact Type
- Normally Closed
- Connector Type
- Plug-In
- Dimensions
- 2.76 × 4.53 × 1.61 inches (70.1 × 115.1 × 40.9 mm)
- Weight
- 11.45 ounces (324.5 grams)
- Actuator Type
- Ignition Key
- Circuit Type
- 2-way
- Other Attributes
- Pre-drilled mounting holes, includes safety lanyard connection
What’s in the Box
- 1 × Ignition Switch Panel Assembly (37100-96J24/37100-96J25/37100-96J27)
- 1 × Key
- 1 × Safety Lanyard
- 4 × Mounting Screws
Installation Notes
- Ensure the engine is off and disconnect the battery's negative terminal for safety.
- Access the rear of the existing ignition panel at the helm.
- Carefully unplug the main wiring harness from the old switch assembly.
- Unscrew and remove the old panel from its mounting location.
- Position the new switch panel, aligning it with the mounting holes, and secure it with the provided screws.
- Firmly plug the wiring harness into the connector on the new switch until it clicks into place.
- Reconnect the battery terminal, attach the safety lanyard, and test all key positions (OFF, ON, START) before starting the engine.
Troubleshooting & FAQ
How do I confirm this panel fits my specific Suzuki model?
This panel is designed for Suzuki DF series 4-stroke outboards from 25HP to 250HP made from 2010 to present. The best way to ensure compatibility is to match your engine's original part number to one of the numbers listed in our Part Number Matrix (e.g., 37100-96J24, 37100-96J25).
What are common signs that my ignition switch is failing?
Symptoms of a bad ignition switch include the engine failing to crank, intermittent stalling while running, the key feeling loose or getting stuck, or accessory power (like gauges) not working when the key is in the "ON" position.
Is any special wiring required for installation?
No. This is a plug-and-play assembly designed to connect directly to the stock Suzuki wiring harness via a matching plug-in connector. No cutting or splicing of wires is necessary for the specified models.
Why is the safety lanyard important?
The safety lanyard is a critical safety device that clips to the operator. If the operator falls away from the helm, the lanyard pulls a clip from the switch, immediately shutting off the engine. This prevents the boat from becoming a runaway hazard.
What is the difference between OEM and aftermarket parts?
This listing is for an aftermarket replacement, not an OEM part. It is built to OEM-level specifications with comparable materials and functionality. Our parts are manufactured in an ISO 9002 certified facility and are batch-inspected for quality and consistency.
How fast do you ship and what are the costs?
We ship worldwide quickly, with a typical transit time of 5–15 days for most regions. Standard shipping is free. Expedited shipping options, where available, will be presented at checkout.
What warranty and return policy applies?
This product is covered by a 1-year warranty against manufacturing defects under normal marine use. If you encounter an issue, please contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. Please see our full policy page or contact us for instructions.
Safety & Important Info
- Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not order.
- This is an aftermarket replacement component, not an original equipment manufacturer (OEM) part.
- Professional installation is highly recommended for marine electrical components to ensure safety and proper function.
