Transom Saver Wedge Support – Fits Yamaha, Mercury, Honda, Johnson/...
Product Details

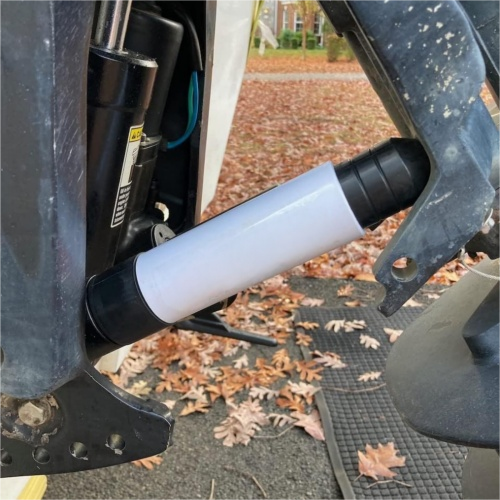

This Transom Saver Wedge Support provides essential support for outboard engines equipped with 2 or 3-ram power trim/tilt systems. By stabilizing the engine and steering mechanism during trailering, it effectively reduces stress on the transom assembly, motor mounts, and hydraulic system. It fits a wide range of Yamaha, Mercury, Honda, Johnson/Evinrude, and Suzuki outboards.
This component is a direct interchange for GHmarine 1H03, Yamaha MAR-MTSPT-YM-08, and M-Y Wedge Universal Motor Support.
- Installs by sliding directly over the trim/tilt piston rod.
- Made from UV and saltwater-resistant EPDM rubber and reinforced plastic.
- Includes steering stabilizer clips to prevent engine turning while trailering.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| GHmarine | 1H03 |
| Yamaha | MAR-MTSPT-YM-08 |
| M-Y Wedge | Universal Motor Support |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Yamaha: Fits 115–350 HP 2-Stroke & 4-Stroke engines with 3-ram trim systems, including SHO models. V-8 models require two units.
Mercury: Fits 135–300 HP 2-Stroke & 4-Stroke engines with 2 or 3-ram trim systems. Typically installed on the starboard side.
Honda: Fits 90–300 HP 4-Stroke engines with 2 or 3-ram trim systems. Typically installed on the starboard side.
Johnson/Evinrude: Fits 150–300 HP 2-Stroke & 4-Stroke engines. Not compatible with Generation 2 models. Typically installed on the starboard side.
Suzuki: Fits DF140–DF350 HP 4-Stroke engines with trim/tilt systems. Trim limiter may require adjustment on some models.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Yamaha | Outboards including SHO | 115-350 | 2 & 4-Stroke | MAR-MTSPT-YM-08 | For 2/3-Ram Trim/Tilt Systems |
| Yamaha | F300-F350 | 300-350 | 4-Stroke | MAR-MTSPT-YM-08 | V-8 models need 2 units (port and starboard) |
| Mercury | Outboards | 135-300 | 2 & 4-Stroke | For 2/3-Ram Trim/Tilt Systems | |
| Mercury | Carb, EFI, OptiMax, HPDI | 135-300 | 2 & 4-Stroke | Install on starboard side typically | |
| Honda | All compatible outboards | 90-300 | 4-Stroke | For 2/3-Ram Trim/Tilt Systems | |
| Honda | BF90-BF300 | 90-300 | 4-Stroke | Install on starboard side typically | |
| Johnson/Evinrude | All compatible models | 150-300 | 2 & 4-Stroke | Except Generation 2 models | |
| Johnson/Evinrude | Carb, EFI, OptiMax, ETEC, Ficht | 150-300 | 2 & 4-Stroke | Install on starboard side typically | |
| Suzuki | DF140-DF350 | 140-350 | 4-Stroke | For trim/tilt systems | |
| Suzuki | Four-stroke outboards | 140-350 | 4-Stroke | Trim limiter may need adjustment for some models |
Technical Specs
- Product Type
- Transom Saver / Motor Support
- Installation
- Slides over trim/tilt piston rod
- Connection
- Direct fit on trim/tilt piston
- Housing Material
- EPDM Rubber and Reinforced Plastic
- Housing Color
- Black
- Dimensions
- 8.75 × 2 × 2 inches (222.3 × 50.8 × 50.8 mm)
- Weight
- 0.77 kg (1.7 lbs)
- Fitting Type
- Wedge design, self-centering
- Operating Temperature
- UV and saltwater resistant
- Warranty
- 30-day return policy
- Other Technical Attributes
- Includes steering stabilizer clips to prevent engine turning while trailering
What’s in the Box
- 1 x Wedge Transom Saver Support (GHmarine 1H03)
- 2 x Outboard Steer Stop Stabilizer Clips
Installation Notes
- Tilt the outboard motor to the full "up" position to expose the hydraulic trim/tilt rods.
- Slide the transom saver wedge securely over the designated trim/tilt piston rod (typically the starboard-side rod).
- Lower the motor slowly until the wedge is held firmly between the motor's hydraulic housing and the transom mount.
- Attach the included steering stabilizer clips to the hydraulic steering rods on both sides to prevent the engine from turning during transit.
- Before launching the boat, reverse the steps: remove the steering clips, raise the motor slightly, and remove the wedge.
Troubleshooting & FAQ
How do I know if this wedge will fit my specific motor?
This wedge fits most outboard engines from Yamaha, Mercury, Honda, Johnson/Evinrude, and Suzuki equipped with 2 or 3-ram power trim/tilt systems. Check the compatibility table for your engine's HP range. It is not compatible with Johnson/Evinrude Generation 2 models. For Yamaha V8 engines, two units are required for complete stability.
Where on the motor does this install?
It slides directly onto a trim/tilt piston rod. For most models, this will be the starboard-side rod. The self-centering wedge design ensures a snug fit once the motor's weight is resting on it.
What is the purpose of the included steering clips?
The two small stabilizer clips attach to the hydraulic steering rods. Their purpose is to prevent the engine from pivoting left or right while you are trailering, providing additional stability and protecting the steering system.
Is this a replacement for a traditional transom saver bar?
This wedge-style support serves the same primary purpose—reducing stress on the transom—but in a more compact and convenient form. It is specifically designed for motors with modern power trim/tilt systems and is often used as a quicker, easier alternative to traditional motor support bars.
How do I maintain this transom saver?
The EPDM rubber and plastic materials are highly durable and resistant to UV rays and saltwater. To maximize its lifespan, simply rinse it with fresh water after use in saltwater environments. No other special maintenance is required.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
